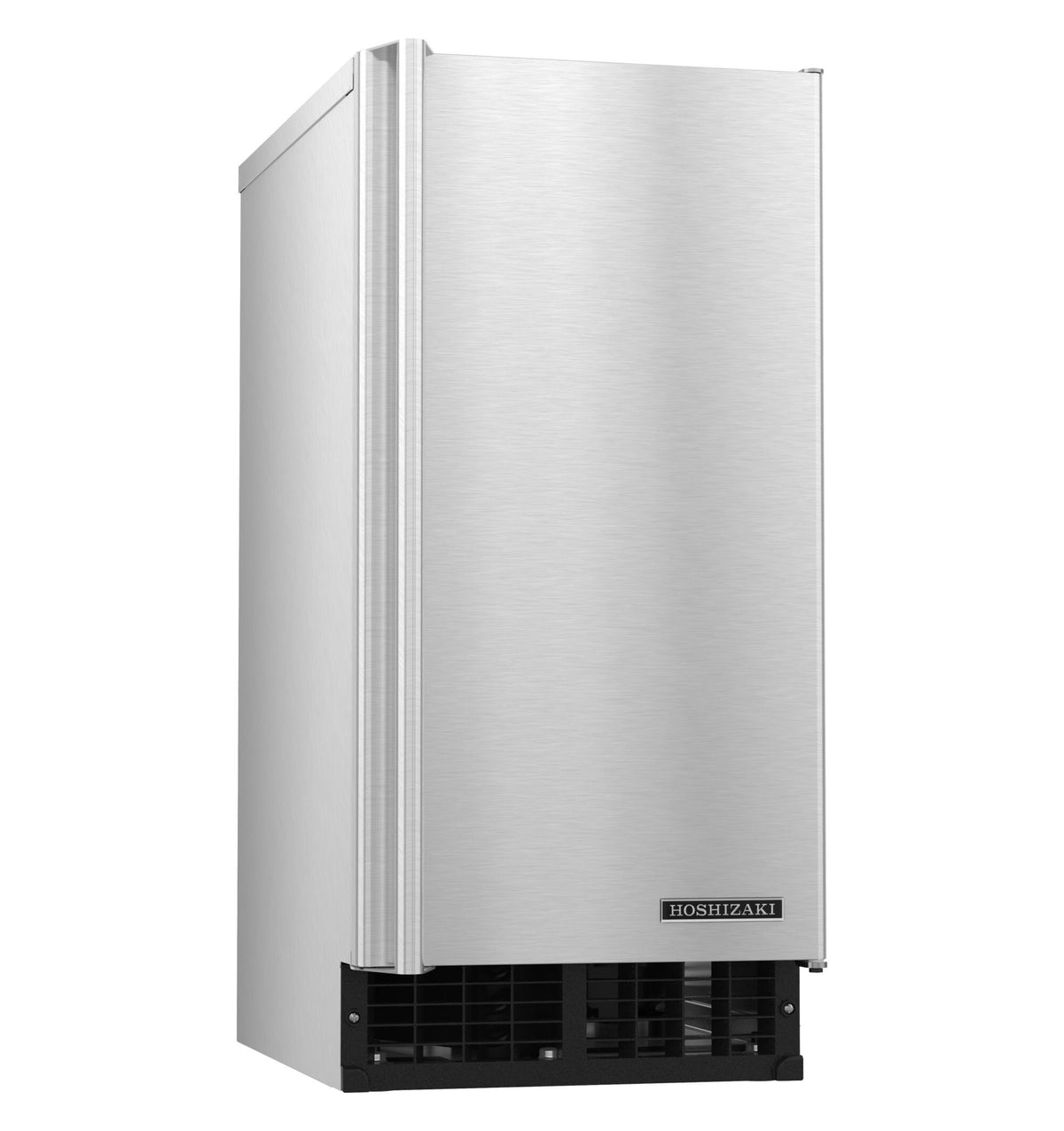

Hoshizaki AM-50BAK-AD Undercounter Top Hat Cube Ice Machine, ADA Height, 27 lb Bin, Air-Cooled, 54 lbs/Day
Regular price
$3,280.00
Sale price
$3,280.00
Regular price
$6,560.00
Save 50%
Shipping calculated at checkout.
The Hoshizaki AM-50BAK-AD is a self-contained air-cooled undercounter ice machine that makes up to 54 lbs of Top Hat cube ice per day and stores up to 27 lbs in its built-in bin. Its compact footprint fits under a counter in hotel suites, offices and small bars.
Key Features
- Produces up to 54 lbs of top hat cube ice per 24 hours
- Built-in storage bin holds up to 27 lbs of ice
- Top Hat style cubes, ideal for beverages
- Front-in, front-out airflow; no side or rear clearance needed
- ADA-compliant height
- UL approved for outdoor use
- Compact undercounter design
- R290 refrigerant (environmentally friendly)
Specifications
| Model | AM-50BAK-AD |
| Ice type | Top Hat Cube |
| Ice production | Up to 54 lbs per 24 hours |
| Storage capacity | 27 lbs (built-in bin) |
| Condenser | Air-Cooled |
| Dimensions | 14-7/8" W x 22-5/8" D x 31-1/2" H |
| Electrical | 115v/60/1, 2.0 A (15 A max fuse), cord and NEMA 5-15 plug |
| Refrigerant | R290 |
| Heat rejection | 1,400 BTU/hr |
| Energy use | 9 kWh per 100 lbs @ 90/70 |
| Potable water use | 65 gal per 100 lbs @ 90/70 |
| Water inlet / drain | 1/2″ FPT inlet, 1/2″ FPT drain |
| Operating range | Ambient 45 – 100°F; water 45 – 95°F; 10 – 113 psig |
| Shipping weight | 112 lbs |
| Warranty | Two Years: Parts & Labor warranty on entire machine. |
Specifications per HOSHIZAKI America data; subject to change by the manufacturer.
