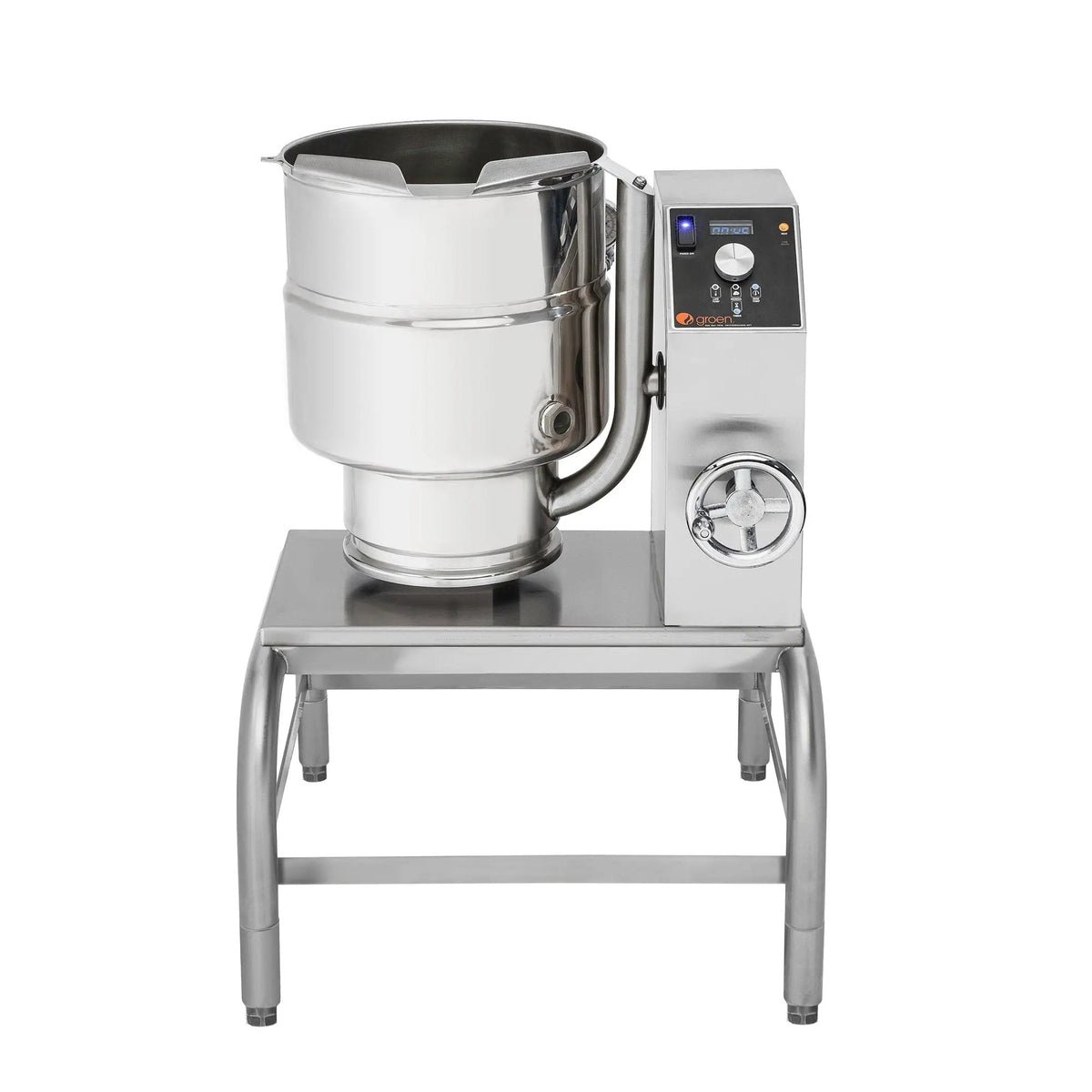

Groen TDBC-24C 6 Gallon Steam Jacketed Kettle - 2/3 Jacket, Manual Tilt, Countertop

6 gallons is the working charge of the TDBC-24C, and it is a bench vessel rather than a floor one. It fastens to whatever it sits on, and that surface has to carry the kettle full. Power is the only service it asks for, since the steam is raised inside the unit.

Groen jackets two thirds of the vessel, leaving the top of the wall cool enough to work over. Groen rates the jacket to 50 PSI maximum. Tilting is crank-driven and self-locking, so a pour can be stopped part way and restarted without losing the angle. Heating stops above 12 degrees of tilt, by design rather than by the operator remembering.

Groen specifies type 304 stainless here, welded up as one piece, which is why cleaning is a wash rather than a strip-down. Groen finishes the inside to 180 emery grit. Groen lines the vessel in 304 stainless as standard. The control package is specified with the order as Classic, Advanced or Cook2Temp. UL, NSF and ASME appear on the sheet.

It is offered for 208 V or 240 V, single or three phase service; choose the electrical option above. Fixing is into the counter, so a light table will not do. The pour side needs room for a pan, and the front of the vessel stays clear.

Features

• Jacket covers two thirds — gentle on cream soups.
• 6 Gallons capacity — small batches for a deli or cafe.
• Heated electrically — steady output on one circuit.
• Countertop installation — sits in the prep bench run.
• Heat cuts off past 12 degrees tilt — no firing while emptying.
• Offered for 208 V or 240 V, single or three phase — select the electrical option above.
• Interior to 180 emery grit — a smooth wall releases product.
• Cook2Temp core probe offered — cook to temperature, not to a clock.
• UL listing on the sheet — no argument at electrical sign-off.
• 50 PSI maximum working pressure — a ceiling on the sheet.

Specifications
