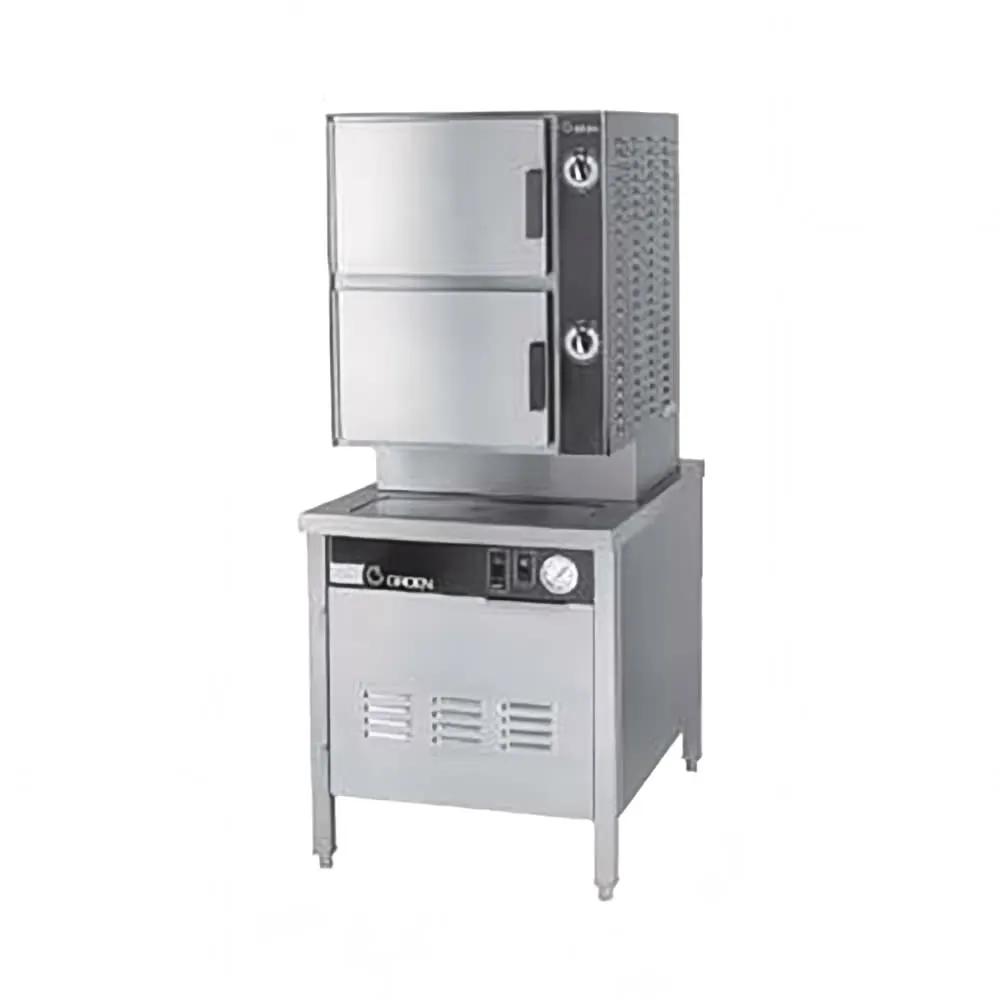

Groen HY-10SE-36 HyPlus Convection Steamer - Cabinet, Pressureless

Groen rates the HY-10SE-36 at five 12 x 20 x 2-1/2 in pans to a cavity. Groen heats it with electric elements, so the site needs no boiler room and no fuel line. That is ten across the two cavities.

The steam is made in a boiler in the base and delivered to cavities that run pressureless, so recovery between loads is fast and the door opens whenever the cook wants it. The rating is 36 kW, equivalent to 3.5 boiler horsepower. Convection is what makes a full load even, because moving steam reaches the back of a cavity where still steam does not.

Stainless steel is used for the cavity and the cabinet, and the panels lift off rather than unbolt piece by piece. The door carries a concealed magnetic switch, so opening it takes the heat off before anyone reaches in. Boiler protection is a low water sensor and a pop safety valve, with an automatic drain once the power goes off. Polished stainless steel lines the cavity. Timers are separate per cavity, each with a constant steam position, so one side can hold while the other cooks.

The cabinet base carries the steam source and the cavities sit above it, which makes the whole thing one delivery and one position. It is offered for 208 V or 240 V, three phase service; choose the electrical option above. Siting it near the pass shortens the carry, which is the point of cooking in service pans.

Features

• Removable side panels — a technician reaches the works fast.
• Built-in timer — repeatable cook times, batch after batch.
• Pressureless cavity — delicate items hold their shape.
• Jacket safety valve — over-pressure relieved mechanically.
• 36 kW connected load — output fixed at order.
• Low water is signalled — the fault is seen before a callout.
• Cabinet mounted — one assembly, one utility connection.
• 10-pan cavity — vegetables and rice in service pans.
