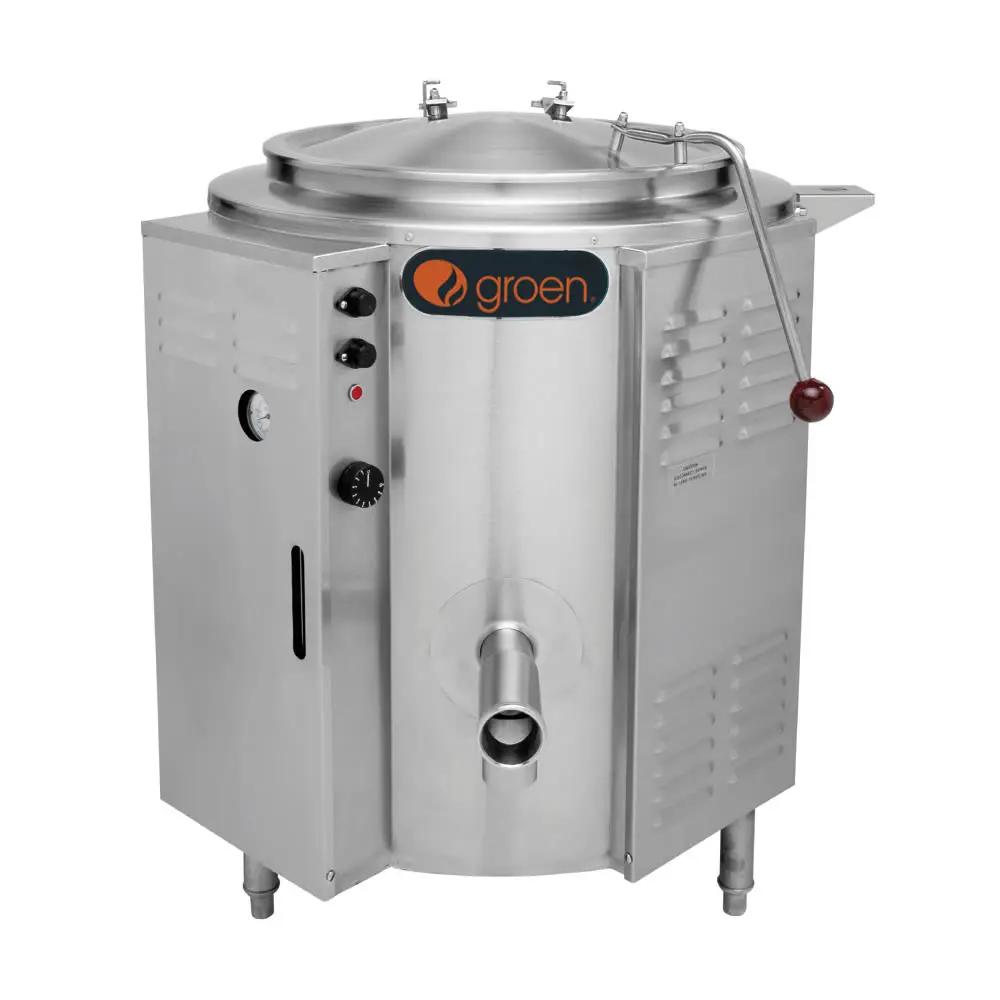

Groen EE-20 20 Gallon Steam Jacketed Kettle - Stationary, 208V 3-Phase

At 20 gallons the EE-20 does not tilt; it is a fixed production vessel. Legs under the vessel take the level out of the deck and then stay where they are set. The kettle makes its own steam electrically, which suits a building with no gas service.

Heat reaches the food through a steam jacket rather than a heated plate, and condensing steam holds one temperature across the whole heated surface. The sheet gives 30 PSI as the jacket maximum. Nothing pivots: the vessel is fixed to its mounting and stays level from the first charge to the last.

Construction is type 316 stainless throughout, welded into a single piece. Type 316 stainless lines the vessel, chosen for product that would pit a lighter grade over time. A thermostat sets the temperature, and a pilot light report what is happening inside, backed by a low water cut-off and a built-in contactor. It carries UL, NSF and ASME listings.

The connection is 208 V three phase and no other supply will run this build. A drain within reach matters, because the vessel is emptied where it stands. Clear floor on the working side is worth more than a tidy wall line.

Features

• Heated electrically — steady output on one circuit.
• Wired for 208 V three-phase — the SKU is the circuit.
• Safety valve fitted — relief independent of the controls.
• Solid one-piece welded construction — no joint through the surface.
• NSF listing — the cleanability code jurisdictions adopt.
• Fixed vessel — suits a draw-off station over a drain.
• Jacket pressure gauge — the jacket state is read, not guessed.
• Low-water cut-off — the element cannot be run dry.
• Jacket water sight glass — the level is read at a glance.
• Working pressure to 30 PSI — quick come-up, full load.
