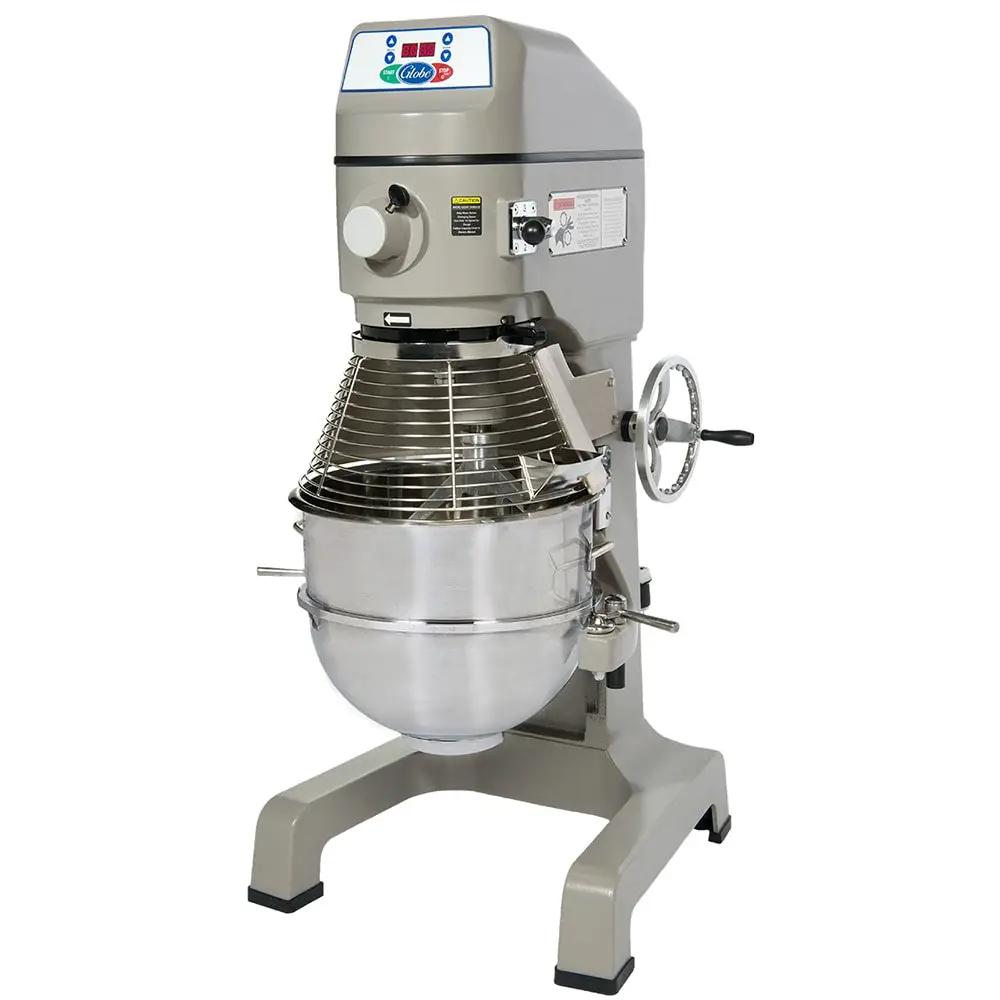

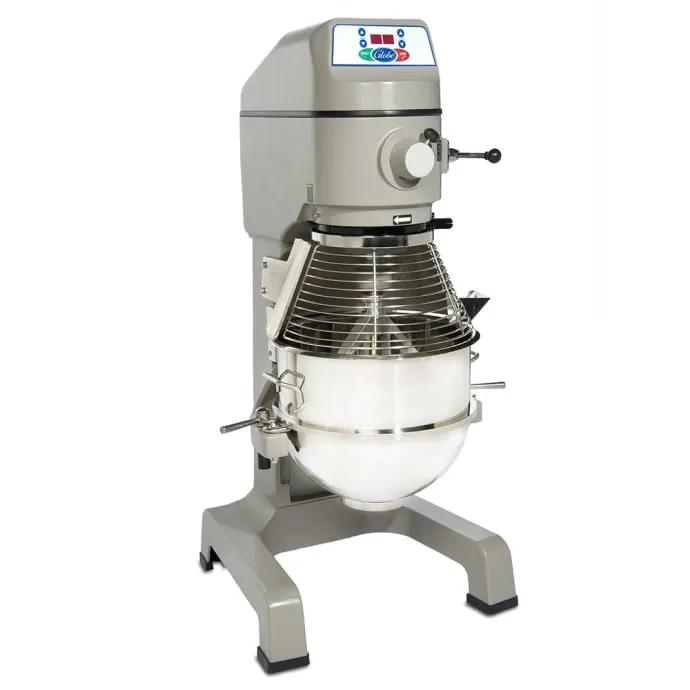

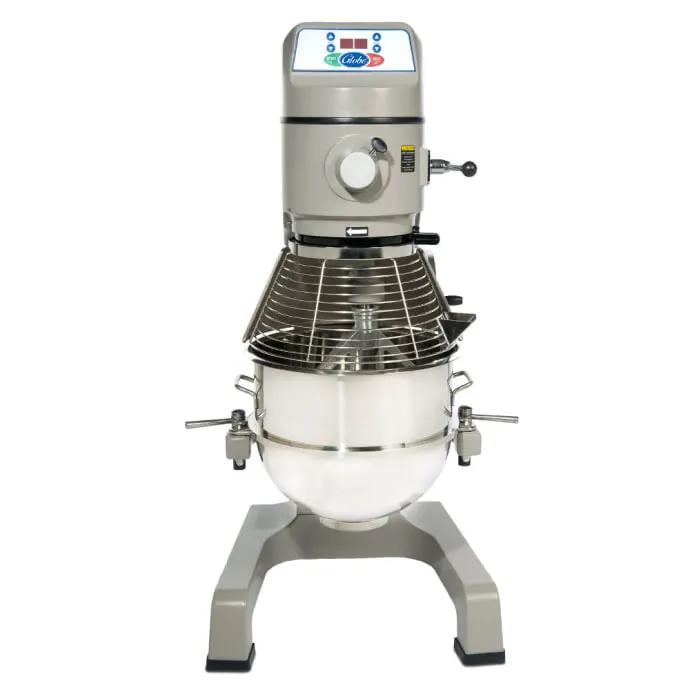

Globe SP40 40 qt Planetary Mixer - Floor Model, 2 hp, 208v, 3ph

The Globe SP40 40-Quart Floor-Model Planetary Mixer is a high-capacity mixing solution designed for bakeries, pizzerias, and institutional kitchens that routinely produce large batches of doughs, batters, and icings. Its gear-driven, 2 HP motor delivers sustained torque with smooth planetary action, ensuring thorough ingredient incorporation while minimizing overmix. A front-mounted control panel enables precise batch timing and repeatable results across shifts and operators.

• Bowl capacity: 40 quarts; dough capacity: 60 lb
• Motor: 2 HP; voltage: 208 V; phase: 3; frequency: 60 Hz
• Drive: gear-driven transmission; speeds: 3 fixed settings (general, fast, heavy)
• Current draw: approx. 7 A; dedicated circuit recommended
• Attachments included: aluminum spiral dough hook, stainless steel wire whip, aluminum flat beater
• Attachment hub: #12 hub for optional accessories
• Bowl guard with built-in ingredient chute; interlocked for safety
• Timer: 60-minute digital with last-batch recall
• Footprint and weight: 25.25 in W × 24.5 in D; height 51.5 in; weight ~663 lb
• Cord and plug: 6 ft cord with NEMA L15-20P plug

Safety features and certifications

• Interlocked bowl lift prevents access during operation
• Interlocked stainless steel bowl guard reduces injury risk
• Thermal overload protection on the motor
• NSF and cETLus listings for commercial food environments

Installation and maintenance

Requires dedicated 208V 3-phase service; a licensed electrician should install and terminate wiring. Provide adequate clearance around loading, access, and cleaning. Regular sanitation of the bowl and attachments is required; inspect the guard latch and lift mechanism periodically and lubricate per Globe's maintenance schedule.

Warranty and service

2-year limited parts and labor warranty; 1-year coverage on agitators, parts, and hub. Globe's nationwide service network supports parts availability and preventive maintenance to minimize downtime; contact authorized centers for scheduled service or urgent repairs.
