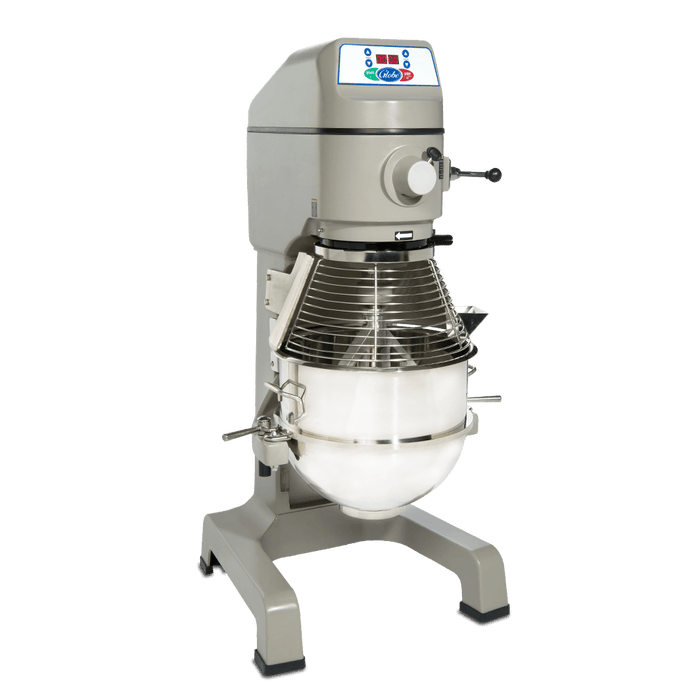

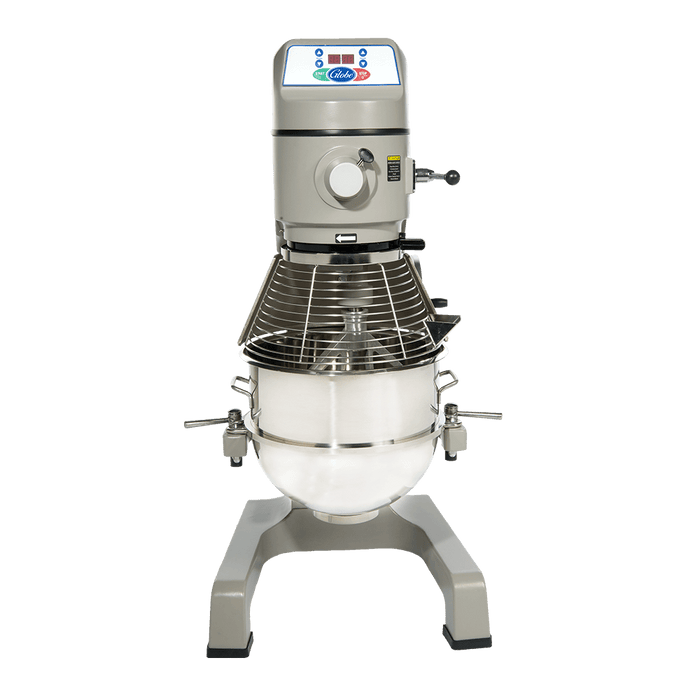

Globe SP30 30 Qt. Planetary Floor Mixer, 1 HP

The Globe SP30 is a 30-quart floor planetary mixer with a 1 HP motor, running on 115V / 1-Phase service.

Gear-Driven Planetary Mixing

A gear-driven transmission with heat-treated steel gears keeps the beater turning at full torque through stiff dough, and the planetary action reaches every part of the bowl.

An interlocked bowl lift and bowl guard stop the mixer when opened, and thermal overload protection guards the motor during long batches.

Why Operators Choose It

• Power: Rigid cast iron construction with NSF-approved enamel coating and powerful 1 HP motor delivers consistent power for mixing various ingredients, from light batters to dense doughs.
• Speeds: Three fixed mixing speeds of 101, 185, and 355 RPMs to accommodate different mixing requirements.
• Gear-driven, high torque transmission ensures smooth operation and durability with heat-treated, hardened steel alloy gears and shafts.
• Timer: Front-mounted touchpad controls with 60-minute digital timer and last batch recall provides convenient operation and batch tracking from across the kitchen.
• Construction: Durable 30-quart stainless steel bowl with heady duty, welded handles for easier bowl transportation.
• Flat beater, whip, and spiral hook are included to support versatile mixing applications.
• Removable stainless steel bowl guard with built-in ingredient chute has durable, heavy gauge wires and protects the operator while adding ingredients during mixing.

Ideal For

Restaurants, pizzerias, bakeries, schools and institutional kitchens mixing dough, batters, icings and mashed potatoes.

Specifications

Installation & Utility Requirements

Electrical service: 115V, 1-phase, 16 A, NEMA 5-20 plug.

Install by a qualified technician per local codes and the Globe installation manual.

What's Included

• 30 qt stainless steel bowl (#304 series)
• Aluminum flat beater
• Stainless steel wire whip
• Aluminum spiral dough hook
• Non-slip rubber feet

Factory Options (Additional Cost)

• XXBGSHIELD-30 Bowl guard shield
• XXBOWL-30 30 qt stainless steel (S/S) bowl
• XXBEAT-30 Alum. flat beater
• XXBEAT-30SS S/S flat beater
• XXHOOK-30 Alum. spiral dough hook
• XXWHIP-30 S/S wire whip
• XXHDWHIP30-4 Heavy-duty 4 mm S/S wire whip
• XXSCRP-30 scraper with mounting kit X
• XACC20-30 Adapter kit - 30 qt bowl, hook, beater and whip
• XVSGH 9" Slicer/Shredder/Grater housing only (no plates included-must select from plates listed on this sheet)
• XASP Adjustable slicing plate (for vegetables only)
• XPH Plate holder - *only 1 required Shredding

Warranty

2 Years Parts and Labor limited warranty from Globe.

Download the Globe SP30 spec sheet (PDF)

Specifications per Globe data; subject to change by the manufacturer.
