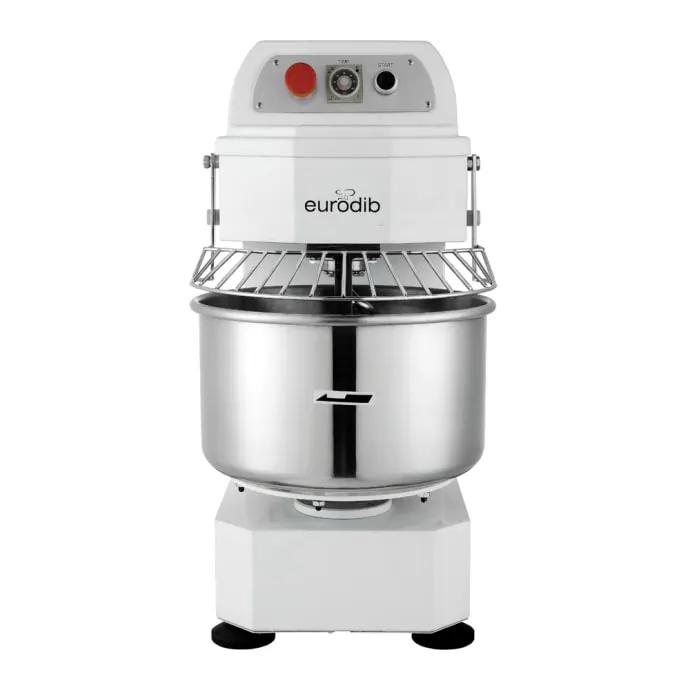

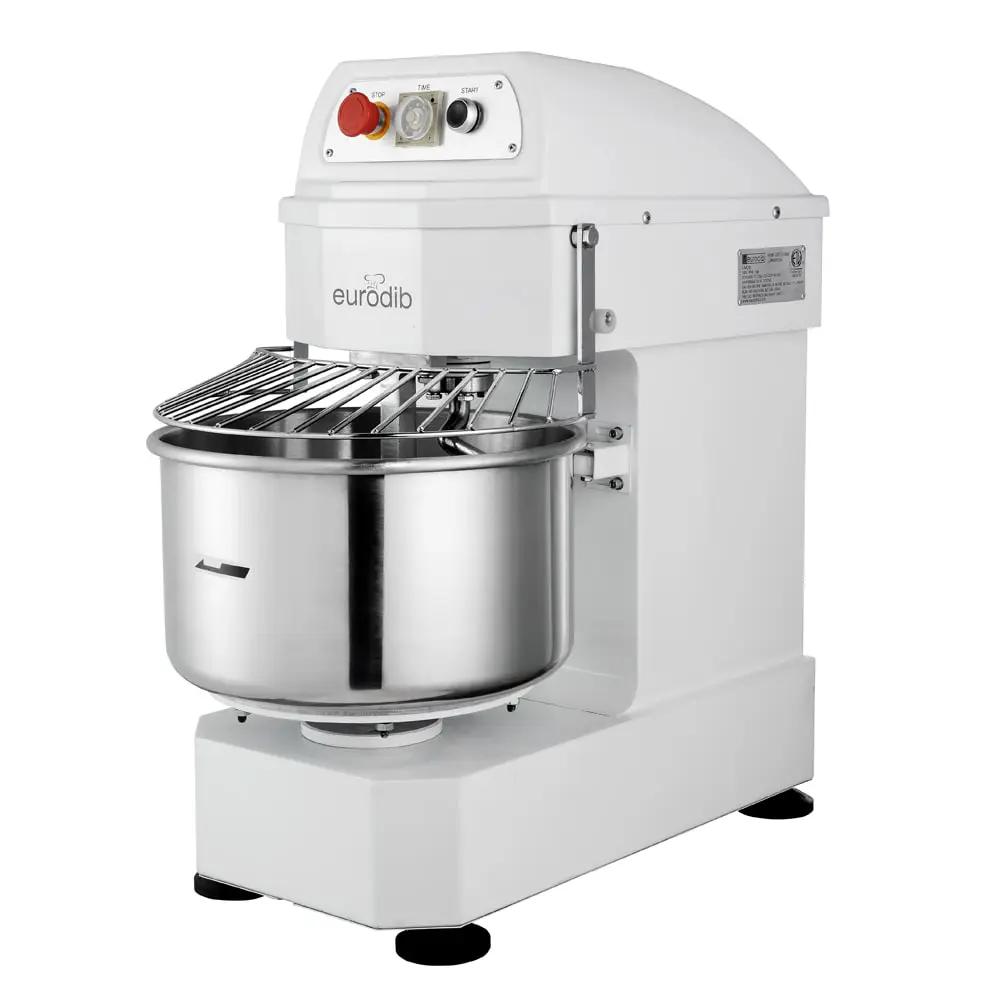

Eurodib LM40T 40 qt Spiral Mixer - Floor Model, 220v/1ph

Spiral Mixer, 40 qt floor model, ideal for high-volume dough production in bakeries, pizzerias, and institutional kitchens. The LM40T employs a heavy-duty spiral agitator to deliver rapid gluten development and uniform dough incorporation for large-batch pastry, bread, and pizza doughs. With a 40-quart bowl and a 35 lb kneading capacity, it supports efficient batch throughput while preserving dough structure and texture.

Performance specifications

• Bowl capacity: 40 qt
• Kneading capacity: up to 35 lb
• Mixing speed: 185 RPM
• Drive: Belt-driven spiral mixer
• Motor: 4 HP, 14 A; 220 V / 60 Hz / 1-phase
• Electrical connection: NEMA 6-20P (cord included)
• Power draw: 3,080 W
• Overall dimensions: 34 in L × 19 in W × 37 in H
• Weight: ~400 lb
• Base: Painted cast iron
• Controls: Built-in timer; emergency stop; bowl guard switch
• Certification: cETLus listed

Safety features and certifications

• Emergency stop for immediate power cut
• Bowl guard switch ensures operation only when guard is in place
• cETLus-listed for compliance with North American safety standards

Installation and maintenance

Install on a level, permanent floor surface with access for service and cleaning. Requires a dedicated 208–240V single-phase circuit and a NEMA 6-20P connection per local electrical codes. Maintain clear, unobstructed access to the belt drive and guard components for routine inspection. Clean the bowl and guard after each use; inspect the belt periodically and replace as needed following the manufacturer’s service manual.

Warranty and service

The LM40T carries a 1-year parts-and-labor warranty. Service and replacement parts are available through Eurodib’s authorized network, with technician support and factory-backed guidance to minimize downtime.

Spec Attribute	Spec Value
Manufacturer	Eurodib
Bowl Capacity (qts)	40
Capacity Rating	Low Volume (0-100 quarts)
Color	White
Controls	Manual
Design	Floor Model
Flour Capacity (lb)	35
Hertz	60
HP	4
NEMA	6-20P
No. of Speeds	1
Phase	1
Product	Mixers
Product Type	Food Prep Equipment
Rating	Good
Special Features	Safety Guard
Special Features	Timer
Transmission	Belt Driven
Type	Spiral Mixer (Dough & Pizza)
Voltage	220
Warranty	1-year Parts & Labor
Weight	400.00
