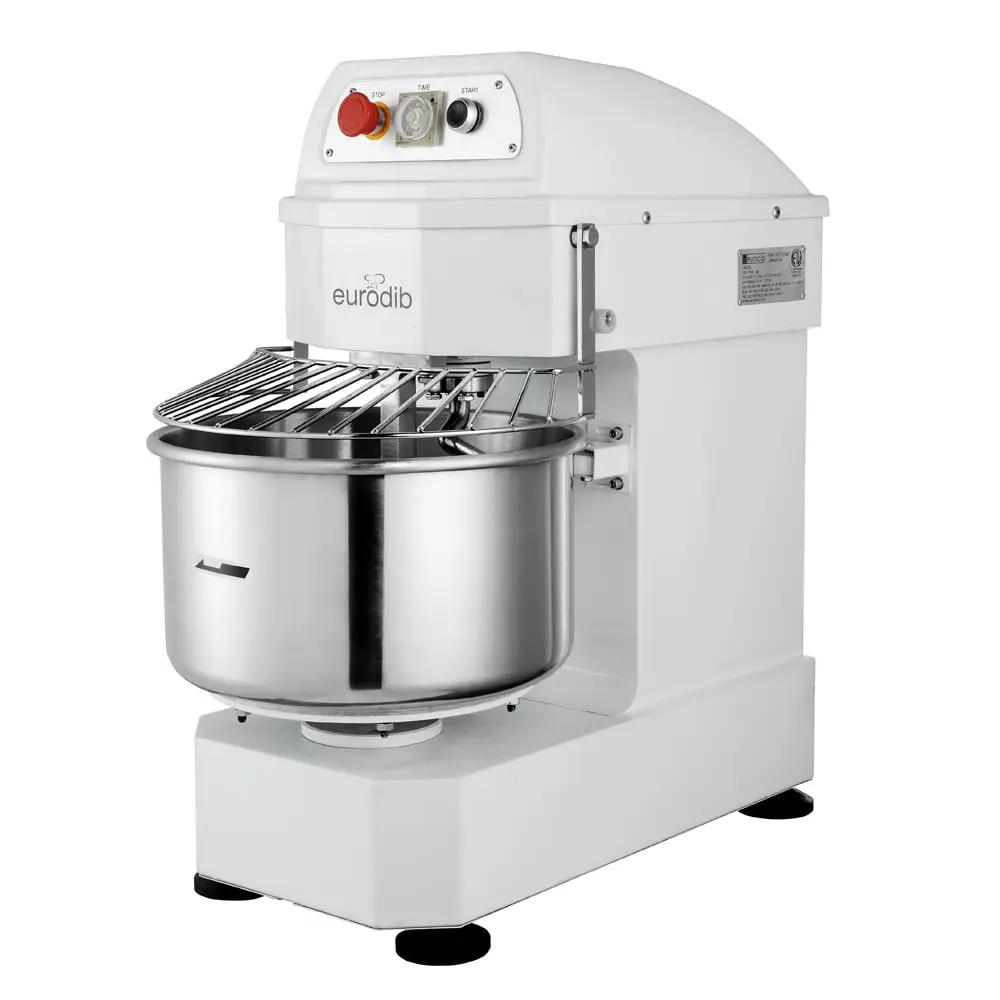

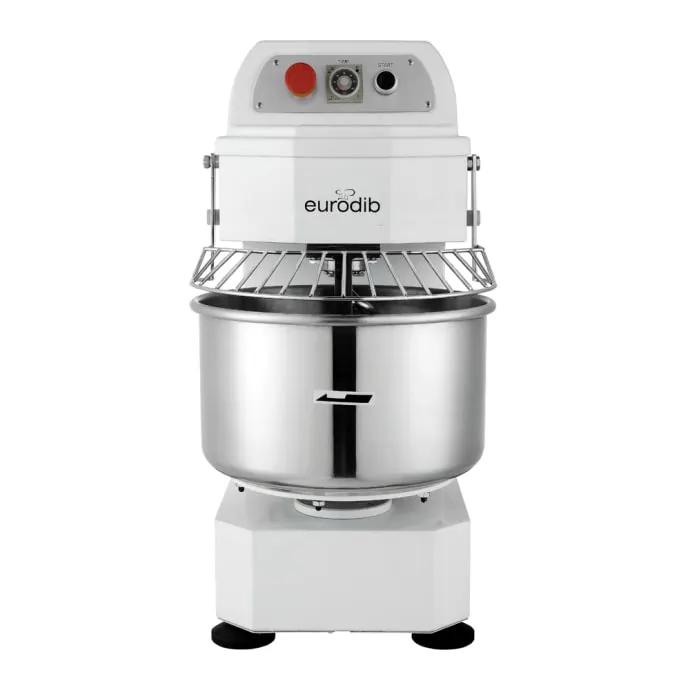

Eurodib LM30T 30 qt Spiral Mixer - Floor Model, 220v/1ph

The Eurodib LM30T 30 qt Spiral Mixer is a floor-model dough kneader engineered for medium-volume commercial kitchens. It excels at producing consistent dough textures for bread, pizza, and pastry by using a spiral action that draws the dough toward the center for thorough development across the entire batch.

Performance specifications

• Capacity: 30-quart bowl; maximum kneading load: 26.5 lb dough
• Mixing speed: 185 RPM; bowl speed: 15 RPM
• Drive: belt‑driven transmission for reliable torque and smooth operation
• Electrical: 2640 W, 12 A; 220 V / 60 Hz / 1‑phase; NEMA 6‑20P
• Dimensions and weight: 28.7 in L × 17 in W × 30 in H; weight 275 lb
• Construction: cast-iron base with gray finish for durability and stability
• Speeds: single-speed operation
• Bowl and hook attachment: fixed to machine; removal requires supplied tools

Safety features and certifications

• Safety guard along the bowl rim to prevent access to moving dough
• Emergency stop switch mounted on the front of the unit
• Belt-driven transmission minimizes exposed moving parts
• cETLus listed for North American safety compliance

Installation and maintenance

• Floor-model installation on a level, sturdy surface with adequate clearance for service
• Electrical requirements: 220 V, 60 Hz, 1‑phase; dedicated circuit with NEMA 6‑20P plug
• Maintenance: disconnect power before servicing; clean exterior and bowl after use; inspect belt and fasteners periodically
• Removal of bowl and hook uses supplied tools; follow manufacturer instructions for reassembly and safety checks

Warranty and service

The LM30T is backed by a 1‑year parts and labor warranty. Service is available through Eurodib-authorized channels with access to genuine replacement parts and regional service support.
