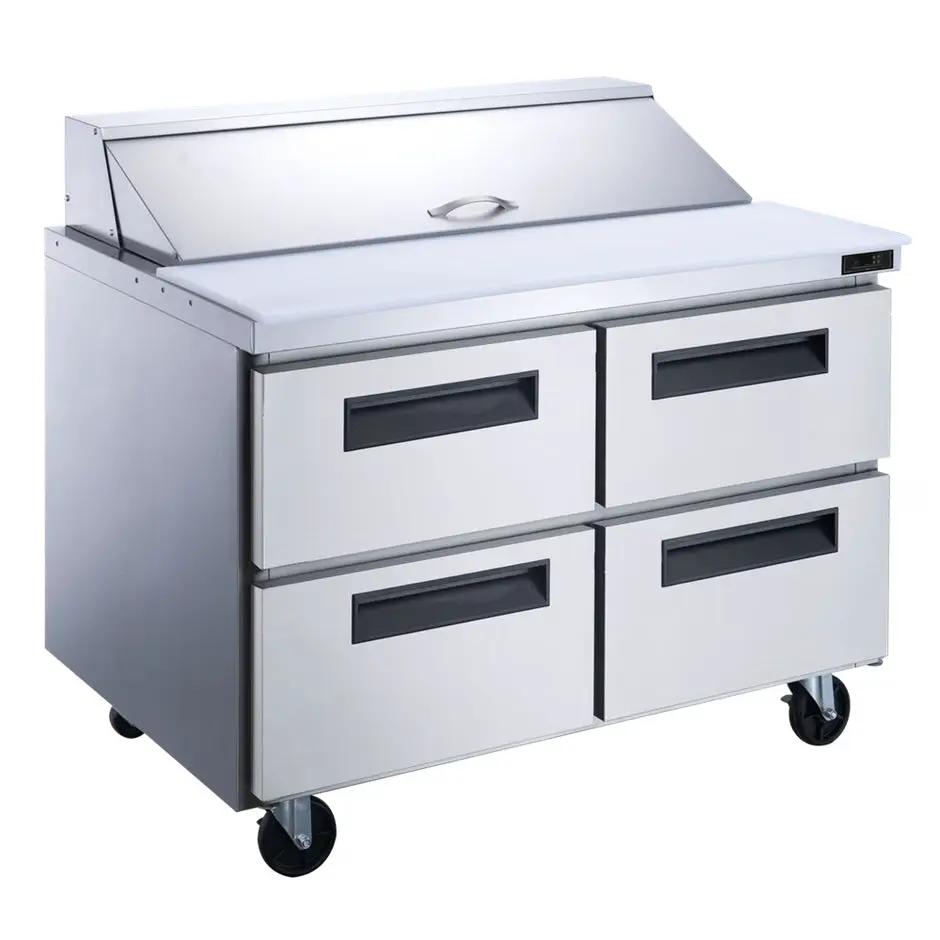

Dukers DSP48-18M-D4 48" Mega Top Sandwich/Salad Prep Table, 4 Drawers, 18 Pans, 11.47 Cu. Ft.

Four drawers under a 48-inch mega top turn the DSP48-18M-D4 into a complete assembly station: toppings on top, backups directly below, and the cook never has to walk away. It suits sub and sandwich shops, salad concepts and fast-casual lines turning out a high volume of builds.

The rail takes eighteen 1/6-size pans (6" deep plastic pans included) behind a 48" x 9" cutting board, and the base holds 11.47 cubic feet across four drawers. A 1/3 HP compressor on R290 refrigerant keeps it at 33°F to 41°F while drawing 2.4 A (280 W) on 115V.

What you will notice in day-to-day use

• Four drawers, zero digging. Self-closing drawers with a stay-open feature ride on heavy-duty, high-capacity slide rails and take 6" deep food pans (not included).
• Eighteen pans on top. The mega top's extra row puts more of the menu at the cutting board.
• A bit more muscle. The 1/3 HP compressor is mounted at the back for easy servicing, with a condenser built to resist dust.
• Temperature you can read. Digital controls with LED display and automatic defrost.
• Stainless construction. Inside and out, for durability and easy wipe-downs.
• Rolls when needed. 6" locking casters.

Specifications

Before it arrives

• Power: a standard 115V NEMA 5-15 outlet; a dedicated circuit is best for commercial refrigeration.
• Fit: the listed 48-1/4" width does not include about 1/5" on each side for the cutting board pins, and the 31-1/2" depth does not include 1" for the rear bumpers, so allow a little extra.
• Delivery: it ships in a carton of about 52-1/2" x 35-7/8" x 48-3/8"; measure doorways on the route in.

Warranty

3 years parts and labor, plus 5 years on the compressor, from Dukers.

Specifications per Dukers data; subject to change by the manufacturer.
