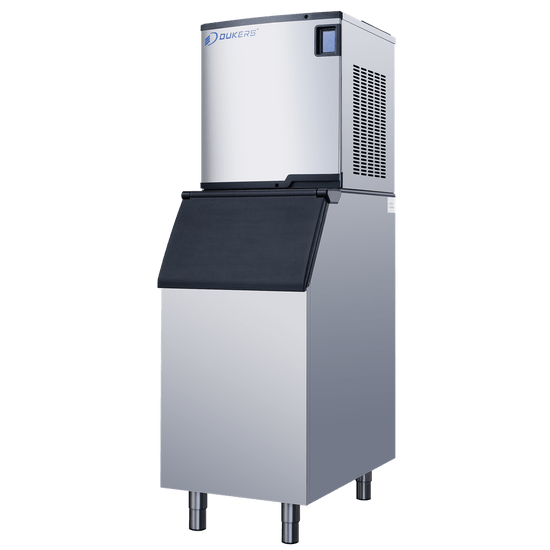

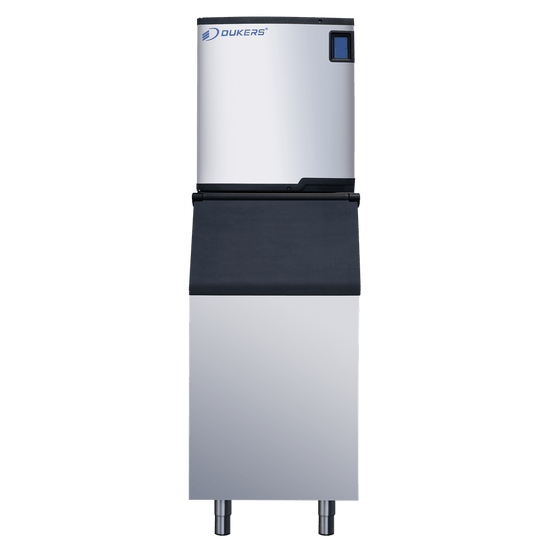

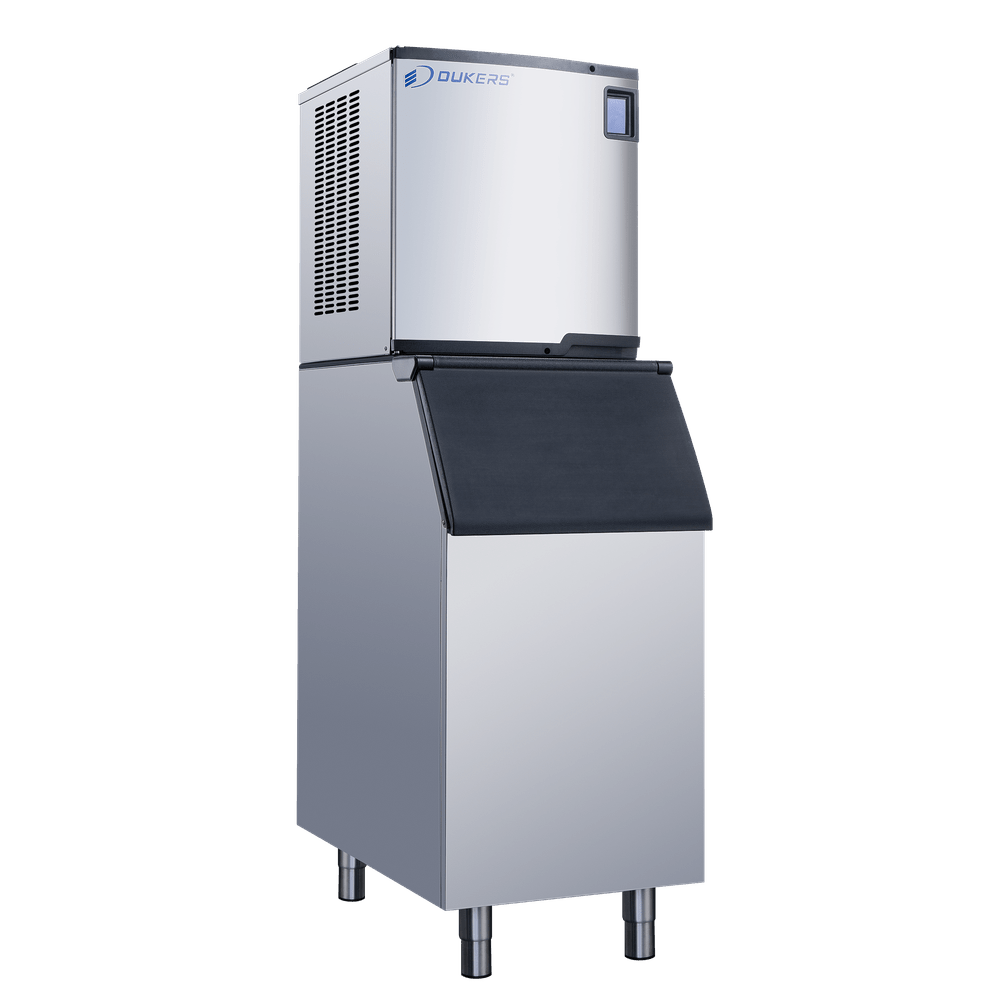

The Dukers DIM-700A is built for hotels, stadium stands, banquet halls and large restaurants where ice can never run short. An AC-700 ice-making head sits on a D-550 storage bin, all in a 30-inch-wide station.
Dukers rates it at 785 lb of ice per 24 hours at 70°F air and 50°F water, or 719 lb at 90°F air and 70°F water, with 550 lb of bin storage. It is air-cooled and runs on 230V / 60 Hz, drawing 4.5 A (1,000 W) through a NEMA 6-20P plug.
What you will notice in day-to-day use
- Ice on hand for big events. A 550 lb bin means the overnight production is waiting for you when the doors open.
- The standard cube everyone expects. Full-size 7/8" cubes, about 11 g each, from a flow-type vertical evaporator.
- Fewer surprises. The intelligent controller runs ice making and harvest automatically and sounds a fault alarm.
- Food-safe storage. An all-plastic interior with a 100% antimicrobial liner is easy to keep sanitary.
- Cleaning without the hassle. Removable air filter, water trough and distribution tube, and a cleaning cycle of about 35 minutes.
Specifications
| Brand | Dukers |
| Model | DIM-700A (AC-700 head + D-550 bin) |
| Type | Air-cooled cube ice machine with storage bin |
| Ice production (24 hr) | 785 lb at 70°F air / 50°F water; 719 lb at 90°F air / 70°F water |
| Bin storage | 550 lb |
| Evaporator | Flow-type vertical |
| Ice type | Full-size cube, 7/8" x 7/8" x 7/8", about 11 g per cube |
| Ambient operating range | 35°F – 110°F |
| Water temperature range | 38°F – 90°F |
| Potable water pressure | 138 – 550 kPa |
| Refrigerant | R290 |
| Electrical | 230V / 60 Hz, 4.5 A, 1,000 W, NEMA 6-20P plug |
| Heat output | 4,500 BTU/hr average, 5,800 BTU/hr peak |
| Energy use | 4.8 kWh per 100 lb of ice |
| Water use | 53 L per 100 lb of ice |
| Dimensions (W x D x H) | 30" x 34.8" x 71.2" |
| Weight | 164.9 lb net / 176.4 lb shipping |
| Shipping cartons (W x D x H) | Head: 32.68" x 27.95" x 31.5"; bin: 32.28" x 37.4" x 47.64" |
| Certification | Sanitation listed mark, per Dukers spec sheet |
Before it arrives
- Power: 230V with a NEMA 6-20P plug; have an electrician confirm a matching 6-20 receptacle.
- Water: a potable water line within the pressure and temperature limits above; see the installation manual for drain requirements.
- Two cartons: head and bin ship separately; the assembled unit is 71.2" tall.
Warranty
2 years parts and labor, plus 5 years on the compressor, from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
