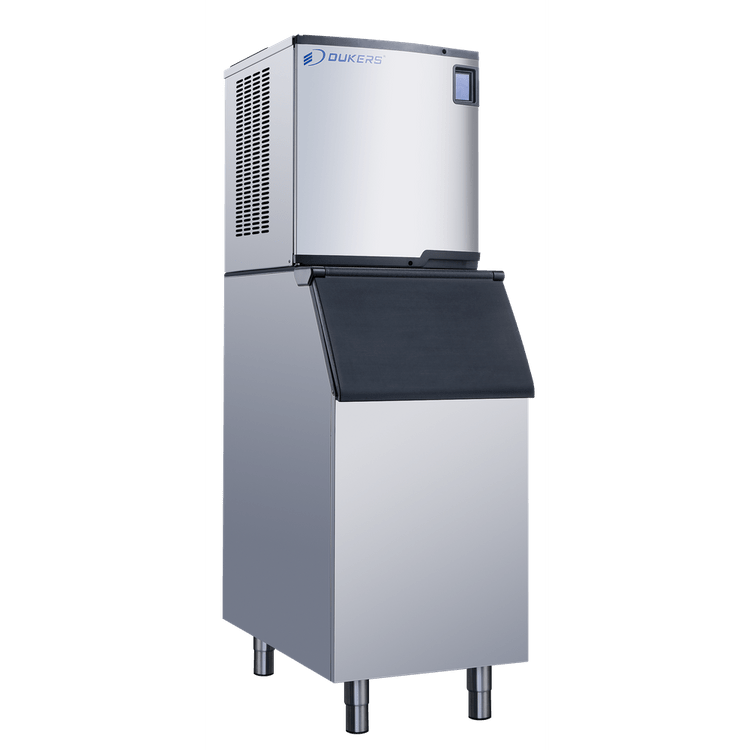

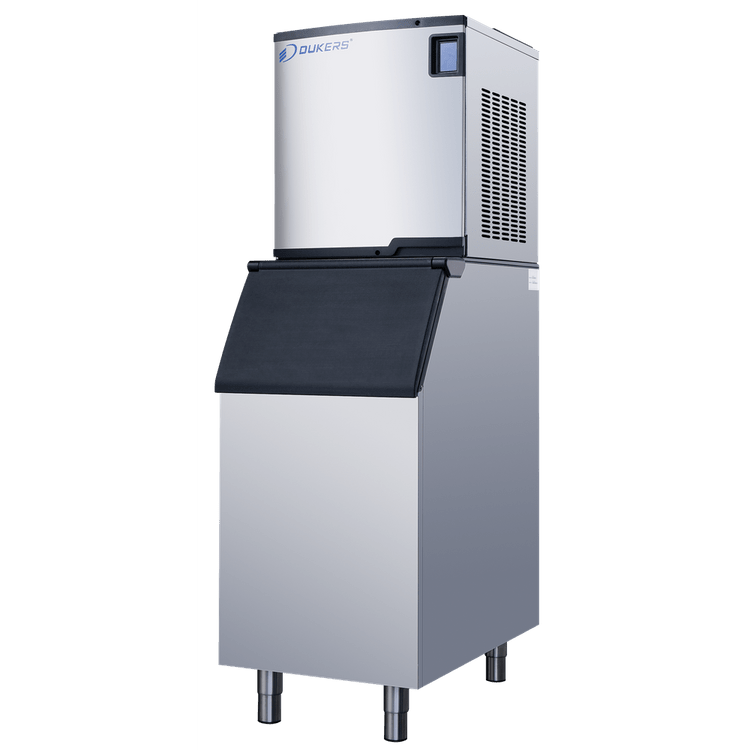

Hotels, banquet kitchens and high-volume restaurants go through ice by the bucketful, and the Dukers DIM-500A is built for that pace. It pairs an AC-500 ice-making head with a D-350 storage bin, giving you a tall ice station that is only 22 inches wide.
It is rated at 496 lb of ice per 24 hours at 70°F air and 50°F water (400 lb at 90°F air and 70°F water), and the bin holds 352 lb. It is air-cooled and runs on 115V, drawing 3.7 A (800 W) through a standard NEMA 5-15P plug.
What you will notice in day-to-day use
- A real reserve. With 352 lb in the bin, a full bin carries you through a banquet.
- Clear, consistent cubes. A flow-type vertical evaporator makes full-size 7/8" cubes of about 11 g each.
- Looks after itself. The intelligent controller automates ice making and harvest, a fault alarm alerts staff to problems, and a self-cleaning mode cuts down on manual work.
- Hygienic storage. An all-plastic interior with a 100% antimicrobial liner keeps the bin easy to sanitize.
- Fast routine cleaning. The air filter, water trough and distribution tube come out, and a cleaning cycle takes about 35 minutes.
Specifications
| Brand | Dukers |
| Model | DIM-500A (AC-500 head + D-350 bin) |
| Type | Air-cooled cube ice machine with storage bin |
| Ice production (24 hr) | 496 lb at 70°F air / 50°F water; 400 lb at 90°F air / 70°F water |
| Bin storage | 352 lb |
| Evaporator | Flow-type vertical |
| Ice type | Full-size cube, 7/8" x 7/8" x 7/8", about 11 g per cube |
| Ambient operating range | 35°F – 110°F |
| Water temperature range | 38°F – 90°F |
| Potable water pressure | 138 – 550 kPa |
| Refrigerant | R290 |
| Electrical | 115V / 60 Hz, 3.7 A, 800 W, NEMA 5-15P plug |
| Heat output | 3,500 BTU/hr average |
| Energy use | 4.9 kWh per 100 lb of ice |
| Water use | 53 L per 100 lb of ice |
| Dimensions (W x D x H) | 22" x 34.8" x 71.2" |
| Weight | 121.7 lb net / 140.2 lb shipping |
| Shipping cartons (W x D x H) | Head: 24.8" x 27.17" x 30.31"; bin: 25.2" x 36.61" x 46.46" |
| Certification | Sanitation listed mark, per Dukers spec sheet |
Before it arrives
- Two boxes: the head and bin ship in separate cartons and are assembled on site.
- Power: a standard 115V NEMA 5-15 outlet.
- Water: a potable water line within the limits above; check the installation manual for drain requirements.
- Height: it stands 71.2" tall, so check ceiling and shelf clearance and leave room for airflow.
Warranty
2 years parts and labor, plus 5 years on the compressor, from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
