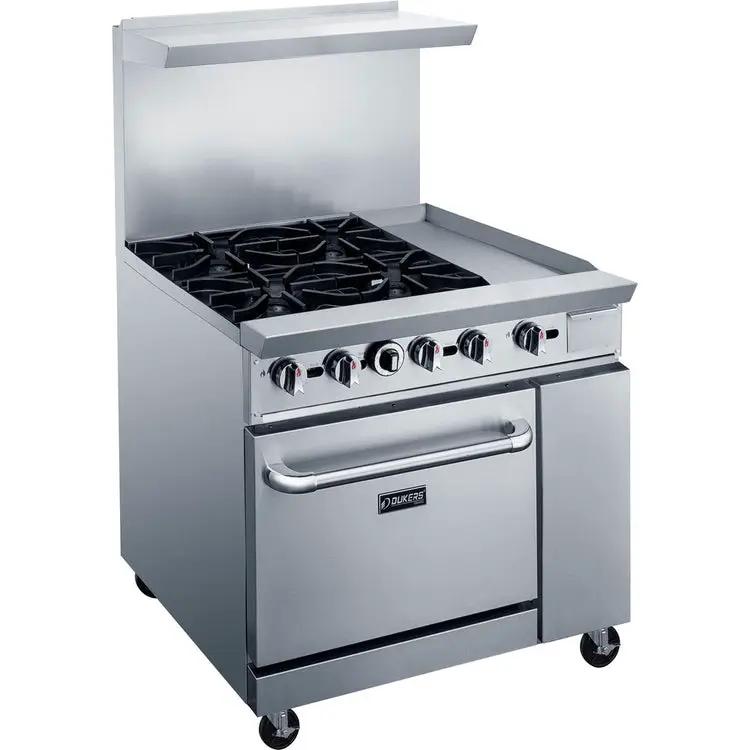

Dukers DCR36-4B12GM 36" Commercial Range, 4 Open Burners, 12" Griddle and Standard Oven, 195,000 BTU
If your line lives on burners but you still want somewhere to toast buns, sear a steak or crack a few eggs, the Dukers DCR36-4B12GM is the balance to look at. Four open burners and a 12-inch griddle share the 36-inch top, with a full-size oven below, which suits full-menu restaurants, cafes and hotel kitchens.
Each open burner is rated 33,000 BTU on natural gas (30,000 on LP), the griddle burner adds 28,000 BTU and the 35,000 BTU oven runs from 175°F to 500°F, for 195,000 BTU/hr in total on natural gas.
What you will notice in day-to-day use
- Four strong burners. Cast-iron grates in 12" x 12" lift-off sections give a 24" x 24" burner area for stockpots and sauté pans.
- A handy flat top. The 12"-wide, 3/4" steel griddle plate offers a 12" x 20" working area for buns, eggs and quick sears.
- Full-size oven below. About 26-1/2" wide, 26" deep and 14" high, with two chrome racks, several rack positions and an easy-clean enamel interior.
- Stainless outside. Front, back, sides, kick plate, back guard and overshelf are stainless steel.
Choosing your setup
Gas type: the range is rated for natural gas or LP. Choose the gas your kitchen uses above so it is set up correctly; the ratings for each are in the table.
| Gas | Each open burner | Griddle | Oven | Total | Gas pressure |
|---|---|---|---|---|---|
| Natural gas | 33,000 BTU | 28,000 BTU | 35,000 BTU | 195,000 BTU/hr | 5" W.C. |
| Liquid propane | 30,000 BTU | 28,000 BTU | 35,000 BTU | 183,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Dukers |
| Model | DCR36-4B12GM |
| Type | Gas restaurant range, 4 open burners and 12" griddle, standard oven |
| Burners | 4 open burners, cast iron grates (12" x 12" sections), 24" x 24" area |
| Griddle | 12" wide, 3/4" steel plate, 12" x 20" working area, 28,000 BTU |
| Total input | 195,000 BTU/hr NG / 183,000 BTU/hr LP |
| Oven | 1 standard oven, 35,000 BTU, 175°F – 500°F |
| Oven interior | 26-1/2" W x 26" D x 14" H |
| Oven racks | 2 chrome racks, multiple rack positions |
| Construction | Stainless steel front, back, sides, kick plate, back guard and overshelf |
| Dimensions (W x D x H) | 36" x 31-1/2" x 56" |
| Net weight | 376 lb |
| Gas connection | 3/4" NPT, rear, regulator included |
| Mobility | 6" casters with locks |
| Certification | Conforms to NSF/ANSI 7 (ETL), per Dukers spec sheet |
Before it arrives
- Gas: 3/4" NPT connection at the rear; a regulator comes standard. Because it sits on casters, connect it with a flexible commercial gas hose and a restraining cable, as local code requires.
- Ventilation: install under a commercial hood, following your local code.
- Space: it is 36" wide, 31-1/2" deep and 56" high; leave the side and rear clearances the installation manual calls for.
Warranty
1 year parts and labor from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
