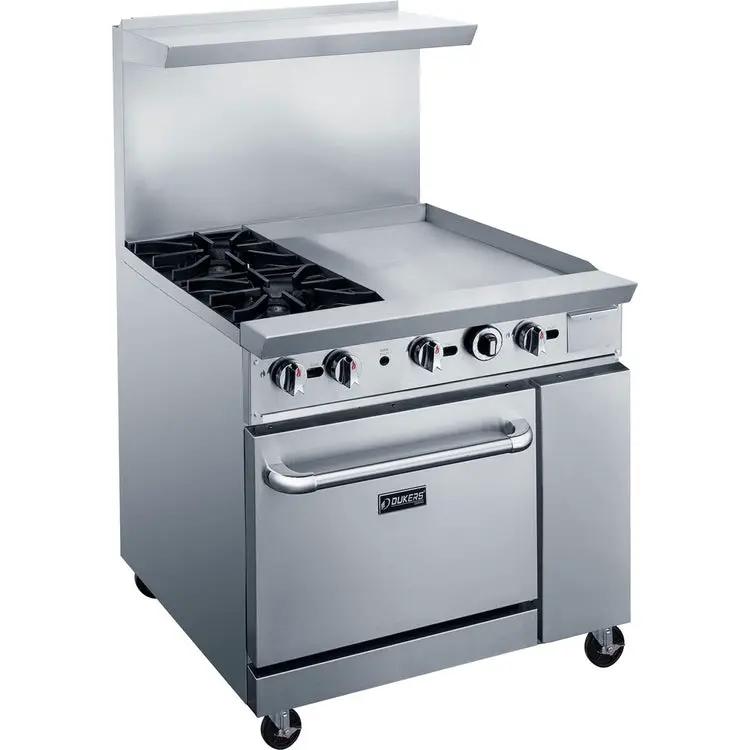

Dukers DCR36-2B24GM 36" Commercial Range, 2 Open Burners, 24" Griddle and Standard Oven, 157,000 BTU
Some menus need a flat top more than a row of burners. The Dukers DCR36-2B24GM gives most of its 36-inch top to a 24-inch griddle and keeps two open burners alongside for sauces, soups and sauté work, with a full-size oven underneath. Diners, brunch spots and burger joints will get a lot out of this layout.
Each open burner is rated 33,000 BTU on natural gas (30,000 on LP), the griddle runs on two 28,000 BTU burners, and the 35,000 BTU oven covers 175°F to 500°F, for 157,000 BTU/hr in total on natural gas.
What you will notice in day-to-day use
- A big griddle where you need it. The 3/4" steel plate gives a 24" x 20" working area for eggs, pancakes, smash burgers and sandwiches.
- Two burners on the side. Cast-iron grates over a 12" x 24" burner section keep a sauce pot and a sauté pan going next to the flat top.
- A full-size oven. About 26-1/2" wide, 26" deep and 14" high, with two chrome racks, several rack positions and an enamel interior.
- Stainless where it counts. Front, back, sides, kick plate, back guard and overshelf are stainless steel.
Choosing your setup
Gas type: the range is rated for natural gas or LP. Choose the gas your kitchen uses above so it is set up correctly; the ratings for each are in the table.
| Gas | Each open burner | Griddle | Oven | Total | Gas pressure |
|---|---|---|---|---|---|
| Natural gas | 33,000 BTU | 2 x 28,000 BTU | 35,000 BTU | 157,000 BTU/hr | 5" W.C. |
| Liquid propane | 30,000 BTU | 2 x 28,000 BTU | 35,000 BTU | 151,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Dukers |
| Model | DCR36-2B24GM |
| Type | Gas restaurant range, 2 open burners and 24" griddle, standard oven |
| Burners | 2 open burners, cast iron grates, 12" x 24" section |
| Griddle | 24" wide, 3/4" steel plate, 24" x 20" working area, 2 x 28,000 BTU |
| Total input | 157,000 BTU/hr NG / 151,000 BTU/hr LP |
| Oven | 1 standard oven, 35,000 BTU, 175°F – 500°F |
| Oven interior | 26-1/2" W x 26" D x 14" H |
| Oven racks | 2 chrome racks, multiple rack positions |
| Construction | Stainless steel front, back, sides, kick plate, back guard and overshelf |
| Dimensions (W x D x H) | 36" x 31-1/2" x 56" |
| Net weight | 400 lb |
| Gas connection | 3/4" NPT, rear, regulator included |
| Mobility | 6" casters with locks |
| Certification | Conforms to NSF/ANSI 7 (ETL), per Dukers spec sheet |
Before it arrives
- Gas: 3/4" NPT connection at the rear; a regulator comes standard. Because it sits on casters, connect it with a flexible commercial gas hose and a restraining cable, as local code requires.
- Ventilation: install under a commercial hood, following your local code.
- Space: it is 36" wide, 31-1/2" deep and 56" high; leave the side and rear clearances the installation manual calls for.
Warranty
1 year parts and labor from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
