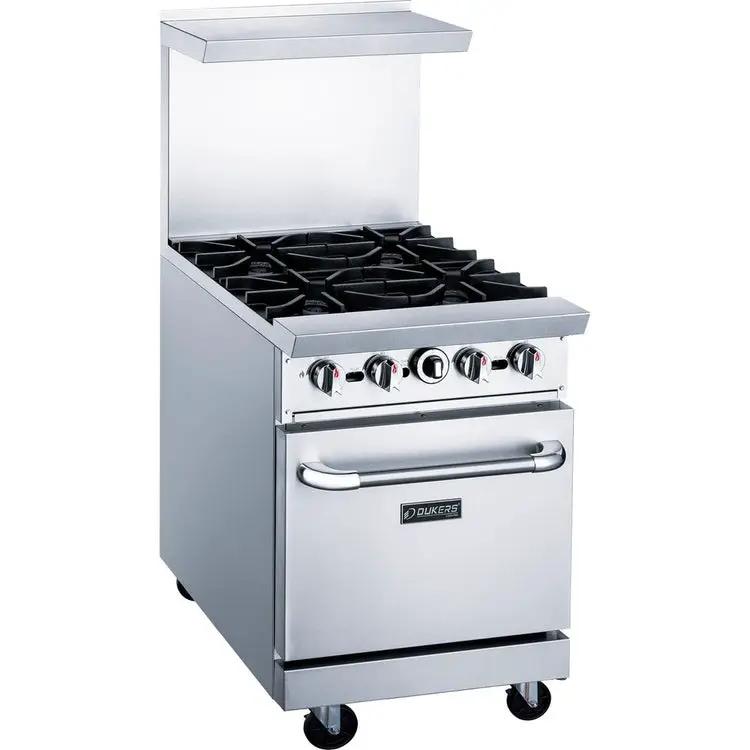

Short on line space but still need burners and an oven? The Dukers DCR24-4B packs four open burners and a full oven into a 24-inch-wide body, which makes it a smart pick for small restaurants, cafes, ghost kitchens and anyone adding capacity to a crowded line.
Each burner is rated 33,000 BTU on natural gas (30,000 on LP), and the 30,000 BTU oven runs from 175°F to 500°F, for 162,000 BTU/hr in total on natural gas. It rides on 6" locking casters, so pulling it out to clean is easy.
What you will notice in day-to-day use
- Four burners in two feet. Heavy-duty cast-iron grates in 12" x 12" lift-off sections give you a 24" x 24" cooking area.
- A real oven underneath. The oven is about 20-3/4" wide, 26" deep and 14" high, with two chrome racks, several rack positions and an enamel interior that wipes clean.
- Stainless all the way around. Front, back, sides, kick plate, back guard and overshelf are stainless steel, so it stands up to daily scrubbing.
- Ready to hook up. A rear 3/4" NPT gas connection and a regulator come standard.
Choosing your setup
Gas type: the range is rated for natural gas or LP. Choose the gas your kitchen uses above so it is set up correctly; the ratings for each are in the table.
| Gas | Each burner | Oven | Total | Gas pressure |
|---|---|---|---|---|
| Natural gas | 33,000 BTU | 30,000 BTU | 162,000 BTU/hr | 5" W.C. |
| Liquid propane | 30,000 BTU | 30,000 BTU | 150,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Dukers |
| Model | DCR24-4B |
| Type | Gas restaurant range with standard oven |
| Burners | 4 open burners, cast iron grates (12" x 12" sections) |
| Cooking area | 24" x 24" |
| Total input | 162,000 BTU/hr NG / 150,000 BTU/hr LP |
| Oven | 1 standard oven, 30,000 BTU, 175°F – 500°F |
| Oven interior | 20-3/4" W x 26" D x 14" H |
| Oven racks | 2 chrome racks, multiple rack positions |
| Construction | Stainless steel front, back, sides, kick plate, back guard and overshelf |
| Dimensions (W x D x H) | 24" x 31-1/2" x 56" |
| Net weight | 268 lb |
| Gas connection | 3/4" NPT, rear, regulator included |
| Mobility | 6" casters with locks |
| Certification | Conforms to NSF/ANSI 7 (ETL), per Dukers spec sheet |
Before it arrives
- Gas: 3/4" NPT connection at the rear; a regulator comes standard. Because it sits on casters, connect it with a flexible commercial gas hose and a restraining cable, as local code requires.
- Ventilation: install under a commercial hood, following your local code.
- Space: it is 24" wide, 31-1/2" deep and 56" high; leave the side and rear clearances the installation manual calls for.
Warranty
1 year parts and labor from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
