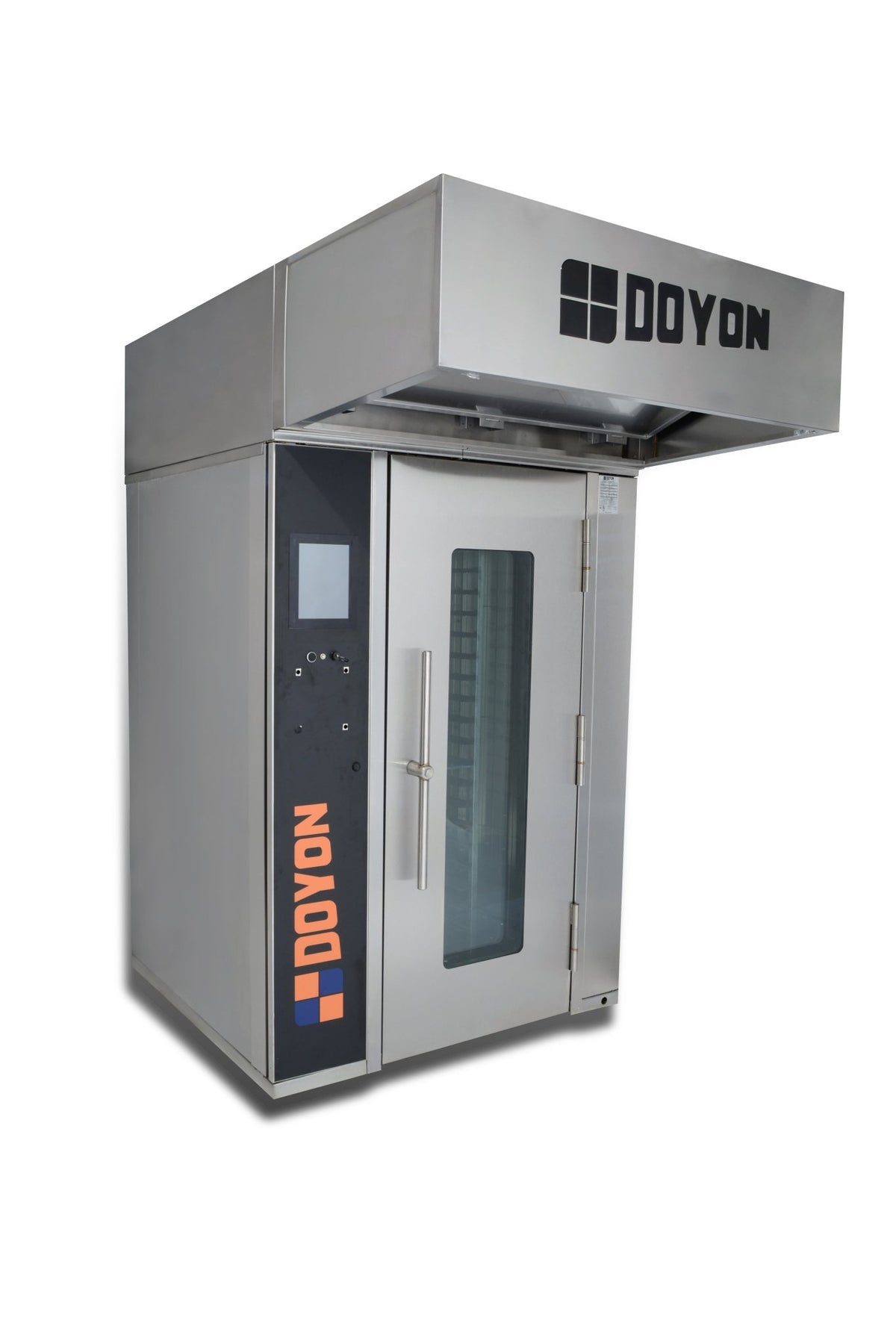

Doyon SRO1E Signature Roll-In Rotating Rack Electric Oven, 1-Rack Capacity, 36 kW
The Doyon SRO1E is a Signature roll-in rotating rack electric oven sized for one single end-load rack. It is rated at 36 kW and is offered in 208-240V / 1-Phase, 208-240V / 3-Phase or 480V / 3-Phase service. The rack lift carries up to 1,500 lb, and a Type II hood comes standard.
Rotating Rack Baking at Scale
A whole rack rolls in, the oven lifts it and turns it through the air stream, and four adjustable air channels let you tune airflow from delicate macarons to caramelized roasts. Three fan speeds and a fan delay protect light products while they set.
Shot and pulse steam injection and Doyon's patented moisture evacuation system work together: steam for crust development early in the bake, then fast moisture removal for even browning.
Why Operators Choose It
- High volume: bakes a full rack of sheet pans per load, 1,500 lb lift capacity.
- Recipe control: touchscreen with 99 recipes and 8-stage baking; energy-saving mode.
- Steam and dry-out: shot and pulse steam plus moisture evacuation.
- Adjustable airflow: four air channels and three fan speeds.
- Install-friendly: ships knocked down (or one piece), built-in rollers, field-reversible door.
Controls
Front-mounted programmable touchscreen with 99 recipes, 8-stage baking, digital temperature control to 525°F and an energy-saving mode.
Ideal For
Wholesale and in-store bakeries, commissaries, institutions and correctional kitchens baking bread, rolls, pastries and roasts by the rack.
Specifications
| Model | SRO1E |
| Series | Signature Rack Oven (SRO) |
| Type | Roll-in rotating rack electric oven |
| Rack capacity | one single end-load rack |
| Rack lift capacity | 1,500 lb |
| Maximum temperature | 525°F |
| Steam | Shot & pulse injection |
| Hood | Type II hood standard (exhaust fan by others) |
| Electrical | 208-240V, 1-phase; 208-240V, 3-phase; 480V, 3-phase (58 A) |
| Power | 36 kW |
| Dimensions (W x D x H) | 55" x 51" x 100-7/8" |
| Interior (per chamber, W x D x H) | 31" x 43" x 73-1/2" |
| Product weight | 3900 lb |
| Shipping weight (crated) | 1650 lb |
| Certifications | cETLus, NSF |
| Country of origin | United States |
| Warranty | 2 years parts, 1 year labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208-240V / 1-Phase | - | 36 |
| 208-240V / 3-Phase | - | 36 |
| 480V / 3-Phase | 58 | 36 |
Water: 1/2" cold water line (water filter recommended).
A floor drain or drain connection is required.
Minimum clearances per Doyon: 0" sides, 0" back, 24" top, 0" front service.
Install by a qualified technician per local codes and the Doyon installation manual.
What's Included
- Type II hood (exhaust fan and ductwork by others)
Factory Options (Additional Cost)
- Water filter (50-1530)
- Water filter cartridge (50-1531)
Warranty
2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).
Download the Doyon SRO1E spec sheet (PDF)
Specifications per Doyon data; subject to change by the manufacturer.
