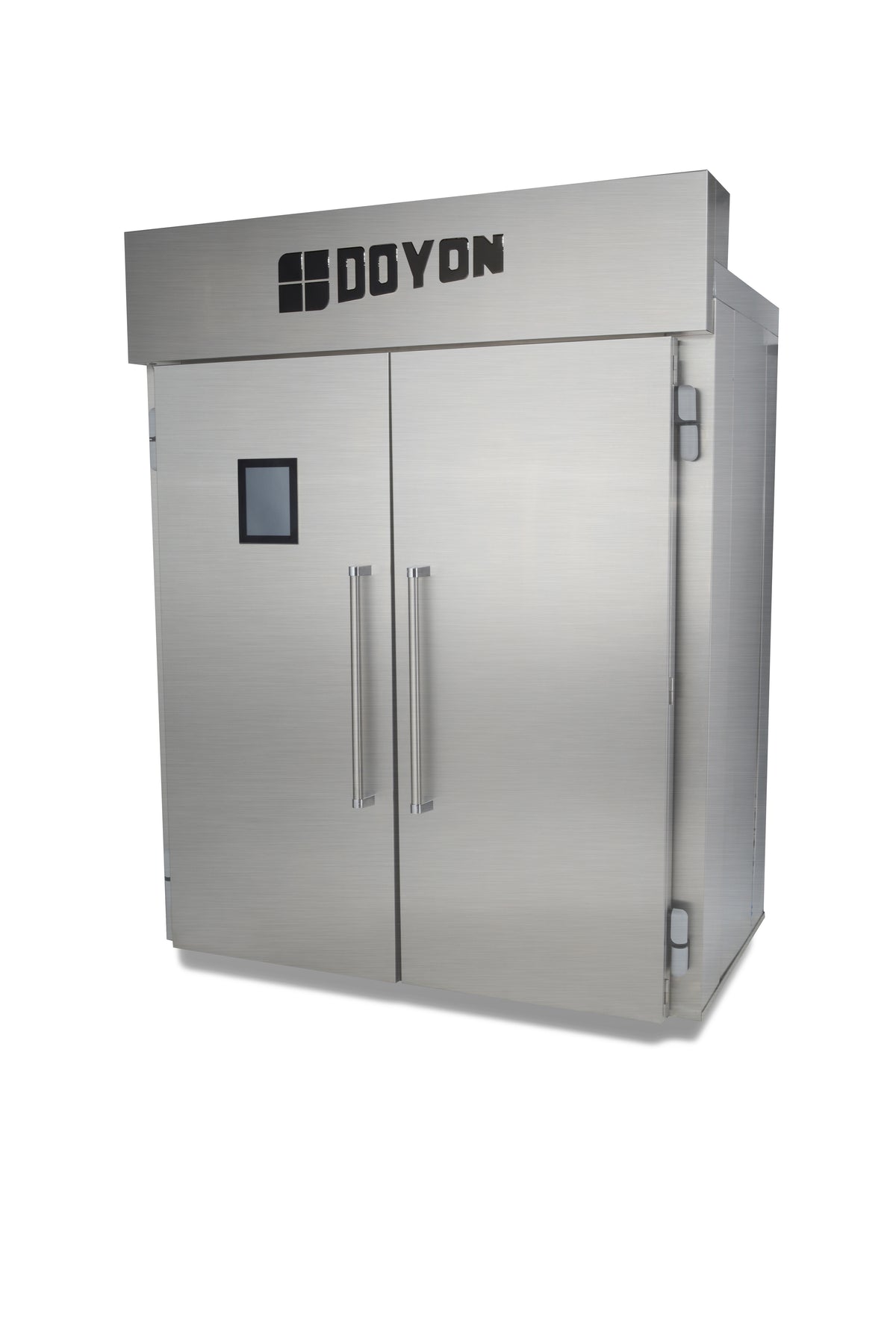

Doyon KDP22 Knock-Down Roll-In Proofer, 4 Double / 8 Single End-Load Rack Capacity
The Doyon KDP22 is a knock-down roll-in proofer sized for 8 single end-load, 8 single side-load or 4 double racks. It proofs from room temperature up to 110°F at up to 95% relative humidity, and runs on 208V / 1-Phase or 240V / 1-Phase service.
Assembled on Site, Controlled by Touchscreen
The cabinet ships flat as insulated stainless panels and is assembled on site, so a large proofer can go into a basement, upper floor or finished building without removing a door frame or window. Walls carry 3" of insulation and the doors 2".
An even-airflow heating system and automatic humidity injection from a single water line hold the right mix of heat and moisture, with no water pans to fill.
Why Operators Choose It
- Capacity: 8 single end-load, 8 single side-load or 4 double racks.
- Ships knock-down: panels fit through standard doorways.
- Precise climate: up to 110°F and 95% relative humidity.
- Touchscreen control: programmable recipes at eye level in the door.
- Auto water fill: single 1/4" water line, no water pans.
- Built to last: 20-gauge stainless steel inside and out, fully insulated.
Ideal For
Wholesale bakeries, supermarkets, commissaries and hotels that proof (and hold overnight) full racks of bread, rolls and pastries.
Specifications
| Model | KDP22 |
| Series | KDP Series |
| Type | Knock-down roll-in proofer |
| Rack capacity | 8 single end-load, 8 single side-load or 4 double racks |
| Proofing range | Room temperature to 110°F, up to 95% RH |
| Electrical | 208V, 1-phase (48 A); 240V, 1-phase (42 A) |
| Power | 10 kW |
| Dimensions (W x D x H) | 74-1/2" x 84-3/8" x 94-1/4" |
| Product weight | 900 lb |
| Certifications | cETLus, NSF |
| Country of origin | United States |
| Warranty | 2 years parts, 1 year labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 48 | 10 |
| 240V / 1-Phase | 42 | 10 |
Water: 1/4" cold water line (water filter recommended).
A floor drain or drain connection is required.
Minimum clearances per Doyon: 33" front service.
Install by a qualified technician per local codes and the Doyon installation manual.
Factory Options (Additional Cost)
- Water filter (50-1530 - recommended)
- Pass-through
- Door bumpers
- Factory installation and startup
- Factory startup (installation not included)
- Stainless steel floor with drain
Warranty
2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).
Download the Doyon KDP22 spec sheet (PDF)
Specifications per Doyon data; subject to change by the manufacturer.
