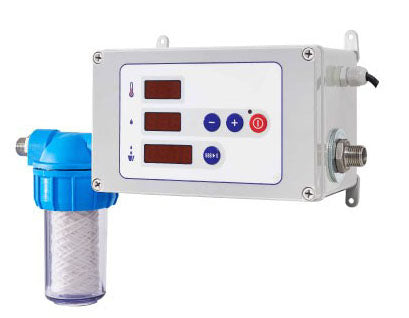

Doyon DAF001 Digital Water Meter for Dough Mixing, 0.1-99.9 Liters
The Doyon DAF001 is a digital water meter that measures the exact volume of water for each dough batch, from 0.1 to 99.9 liters, and displays the water temperature. It plugs into a standard 120V / 1-Phase outlet.
Exact Water, Every Batch
Set the quantity in liters, US gallons or Canadian gallons, press start, and the meter delivers that amount through its hose, so every batch gets the same water and the same dough consistency.
It reads water temperature from 32°F to 120°F to help hit target dough temperature; it does not mix water itself, so pair it with a mixing valve or the RAF100 water chiller.
Why Operators Choose It
- Accurate batches: 0.1 to 99.9 liters.
- Units: liters, US or Canadian gallons.
- Temperature readout: 32-120°F.
- Wide range: 3.6 to 72.6 psi, 2-45 L/min flow.
- Ready to use: water hose and hook included.
Ideal For
Bakeries, pizzerias and commissaries that want consistent dough hydration from batch to batch.
Specifications
| Model | DAF001 |
| Type | Digital water meter |
| Metering range | 0.1-99.9 liters |
| Water pressure | 3.6-72.6 psi |
| Flow rate | 2-45 liters/minute |
| Temperature reading | 32-120°F |
| Inlet | 1/2" NPT |
| Electrical | 120V, 1-phase, 1 A |
| Power | 0.03 kW |
| Dimensions (W x D x H) | 15" x 5-1/8" x 10-1/4" |
| Product weight | 13 lb |
| Certifications | ETL, NSF |
| Country of origin | Portugal |
| Warranty | 2 years parts, 1 year labor |
Installation & Utility Requirements
Electrical service: 120V, 1-phase, 1 A, NEMA 5-15 plug.
Water: 1/2" cold water line.
Install by a qualified technician per local codes and the Doyon installation manual.
What's Included
- Water hose and hook
Warranty
2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).
Download the Doyon DAF001 spec sheet (PDF)
Specifications per Doyon data; subject to change by the manufacturer.
