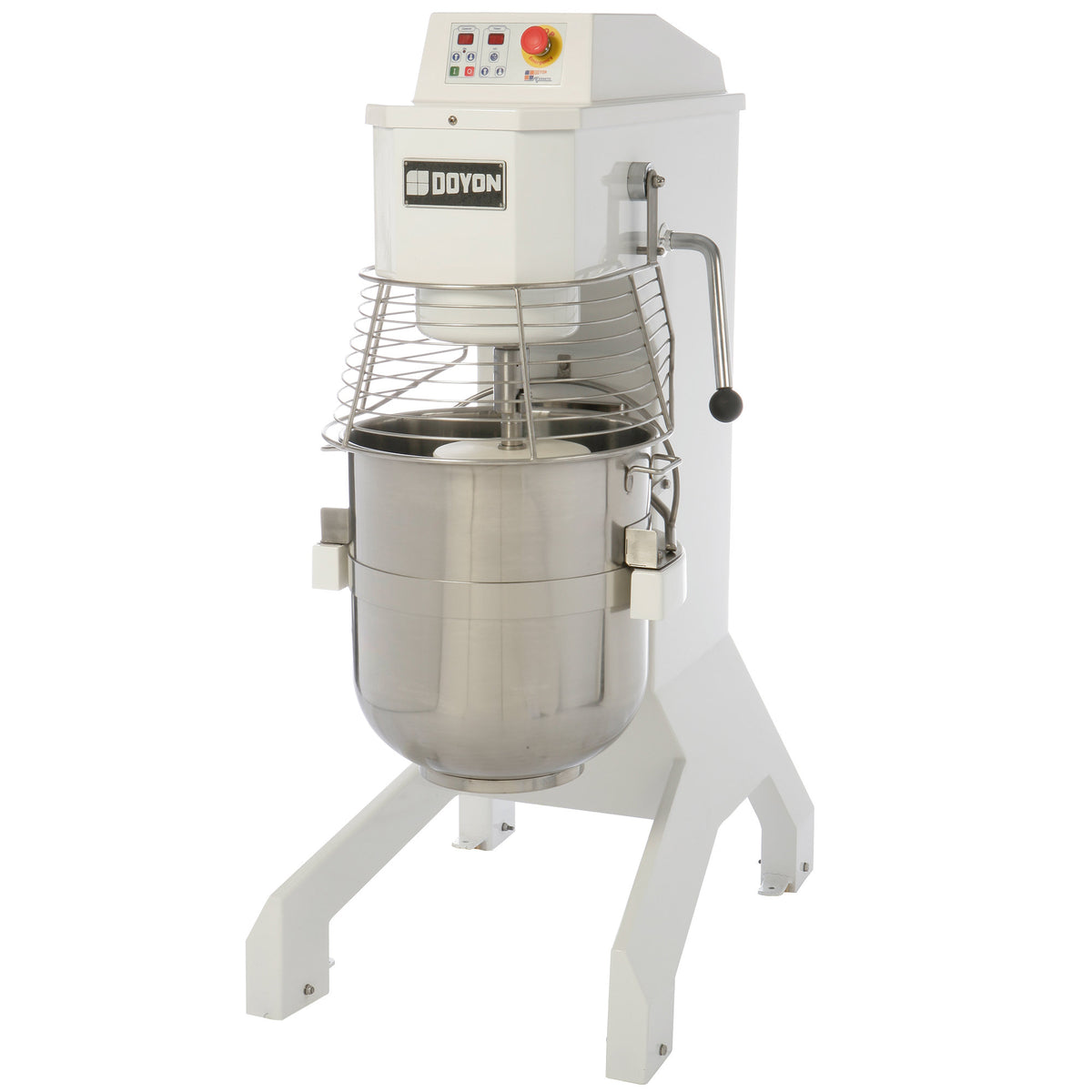

Doyon BTF060H Planetary Mixer with #12 Hub, 60 Qt. Bowl, 4 HP, 20 Speeds
The Doyon BTF060H is a 60-quart belt-driven planetary mixer with a 4 HP motor, 20 speeds and a digital timer, plus a #12 attachment hub. It includes a stainless steel bowl, dough hook, wire whip and flat beater and runs on 208-240V / 1-Phase or 208-240V / 3-Phase service.
Variable Speed and Programmable Mixing
Speed changes on the fly: the 20-step variable drive moves from a slow fold to a fast whip without stopping the mixer, and up to 7 speed-and-time programs repeat the same mix every batch. The non-slip belt drive is quiet, protects the motor and is inexpensive to service.
An emergency stop, a padlockable power switch and a bowl guard that cuts the motor when lifted make up a three-part safety system, and thermal overload protection guards the motor.
Why Operators Choose It
- 20 speeds: change without stopping.
- Repeatable: 99-minute timer and programmable speed/time settings.
- Attachment hub: #12 hub for grinder and slicer attachments.
- Safety: emergency stop, padlockable switch, interlocked bowl guard.
- Easy to clean: enamel-coated frame, stainless legs.
- Complete: stainless bowl, hook, whip and beater included.
Ideal For
Bakeries, commissaries, hotels and institutional kitchens mixing dough, batters and icings in volume.
Specifications
| Model | BTF060H |
| Series | BTF Series |
| Type | Belt-driven planetary mixer |
| Bowl capacity | 60 qt |
| Motor | 4 HP |
| Speeds | 20, variable |
| Timer | 99 minutes |
| Attachment hub | #12 |
| Electrical | 208-240V, 1-phase (16 A); 208-240V, 3-phase (16 A) |
| Dimensions (W x D x H) | 24-7/8" x 36-1/4" x 56-3/4" |
| Product weight | 600 lb |
| Certifications | cETLus, NSF |
| Country of origin | Portugal |
| Warranty | 2 years parts, 1 year labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208-240V / 1-Phase | 16 | - |
| 208-240V / 3-Phase | 16 | - |
Install by a qualified technician per local codes and the Doyon installation manual.
What's Included
- 60 qt stainless steel bowl
- Dough hook, wire whip and flat beater
Factory Options (Additional Cost)
- Stainless steel construction
- Stainless steel stand (BTF010 only)
- Additional bowl
- Additional attachments: hook, whip, beater
- #12 Hub (BTF040 & BTF060 only)
- Meat grinder for use with hub (BTF040 & BTF060 with #12 hub only)
- Vegetable & pepperoni slicer with 3 cheese shredders (BTF040 & BTF060 with #12 hub only)
- Marine application (BTF020, BTF040 & BTF060 only)
Warranty
2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).
Download the Doyon BTF060H spec sheet (PDF)
Specifications per Doyon data; subject to change by the manufacturer.
