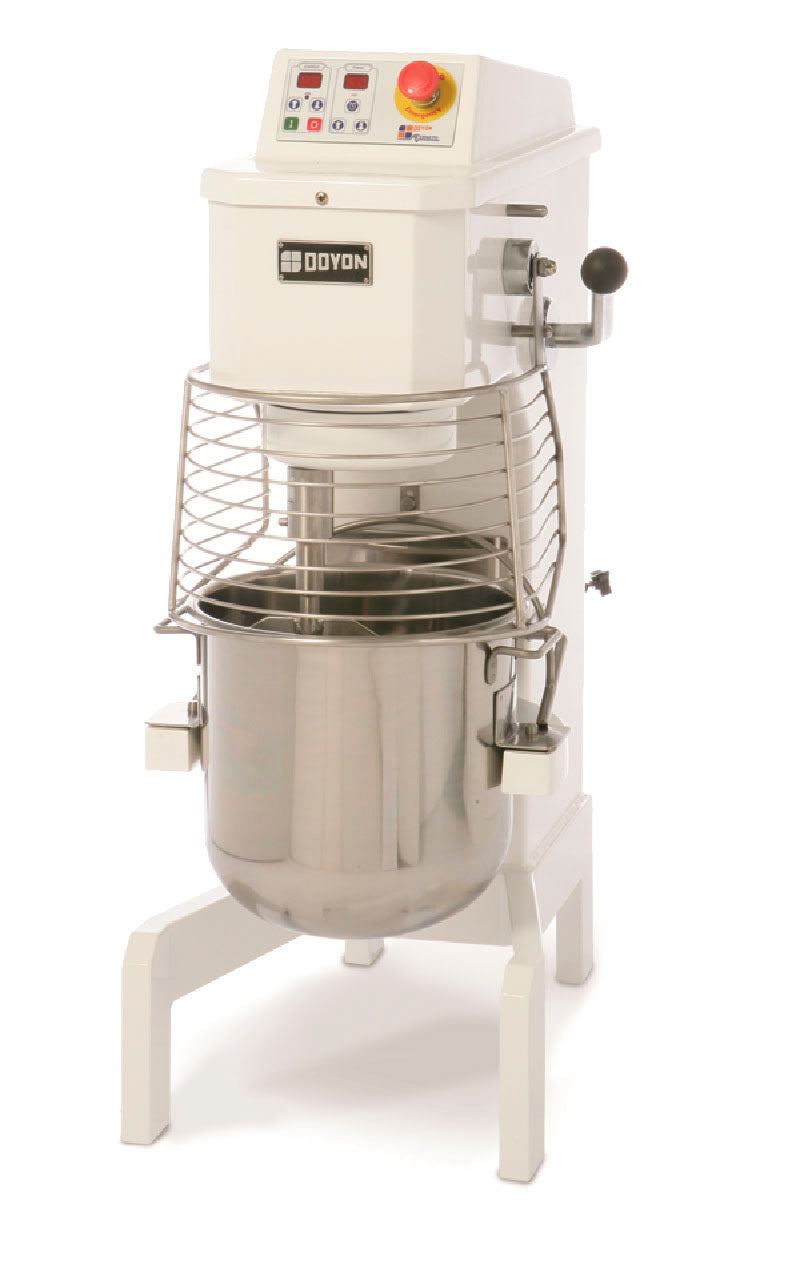

Doyon BTF010 Planetary Mixer, 10 Qt. Bowl, 1/2 HP, 20 Speeds

The Doyon BTF010 is a 10-quart belt-driven planetary mixer with a 1/2 HP motor, 20 speeds and a digital timer. It includes a stainless steel bowl, dough hook, wire whip and flat beater and runs on 120V / 1-Phase or 208-240V / 1-Phase service.

Variable Speed and Programmable Mixing

Speed changes on the fly: the 20-step variable drive moves from a slow fold to a fast whip without stopping the mixer, and up to 7 speed-and-time programs repeat the same mix every batch. The non-slip belt drive is quiet, protects the motor and is inexpensive to service.

An emergency stop, a padlockable power switch and a bowl guard that cuts the motor when lifted make up a three-part safety system, and thermal overload protection guards the motor.

Why Operators Choose It

• 20 speeds: change without stopping.
• Repeatable: 99-minute timer and programmable speed/time settings.
• Safety: emergency stop, padlockable switch, interlocked bowl guard.
• Easy to clean: enamel-coated frame, stainless legs.
• Complete: stainless bowl, hook, whip and beater included.

Ideal For

Bakeries, commissaries, hotels and institutional kitchens mixing dough, batters and icings in volume.

Specifications

Installation & Utility Requirements

Electrical service by option (field wired per local code unless noted):

Install by a qualified technician per local codes and the Doyon installation manual.

What's Included

• 10 qt stainless steel bowl
• Dough hook, wire whip and flat beater

Factory Options (Additional Cost)

• Stainless steel construction
• Stainless steel stand (BTF010 only)
• Additional bowl (BTF010B)
• Additional attachments: hook (BTF010C), whip (BTF010F), beater (BTF010P)

Warranty

2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).

Download the Doyon BTF010 spec sheet (PDF)

Specifications per Doyon data; subject to change by the manufacturer.
