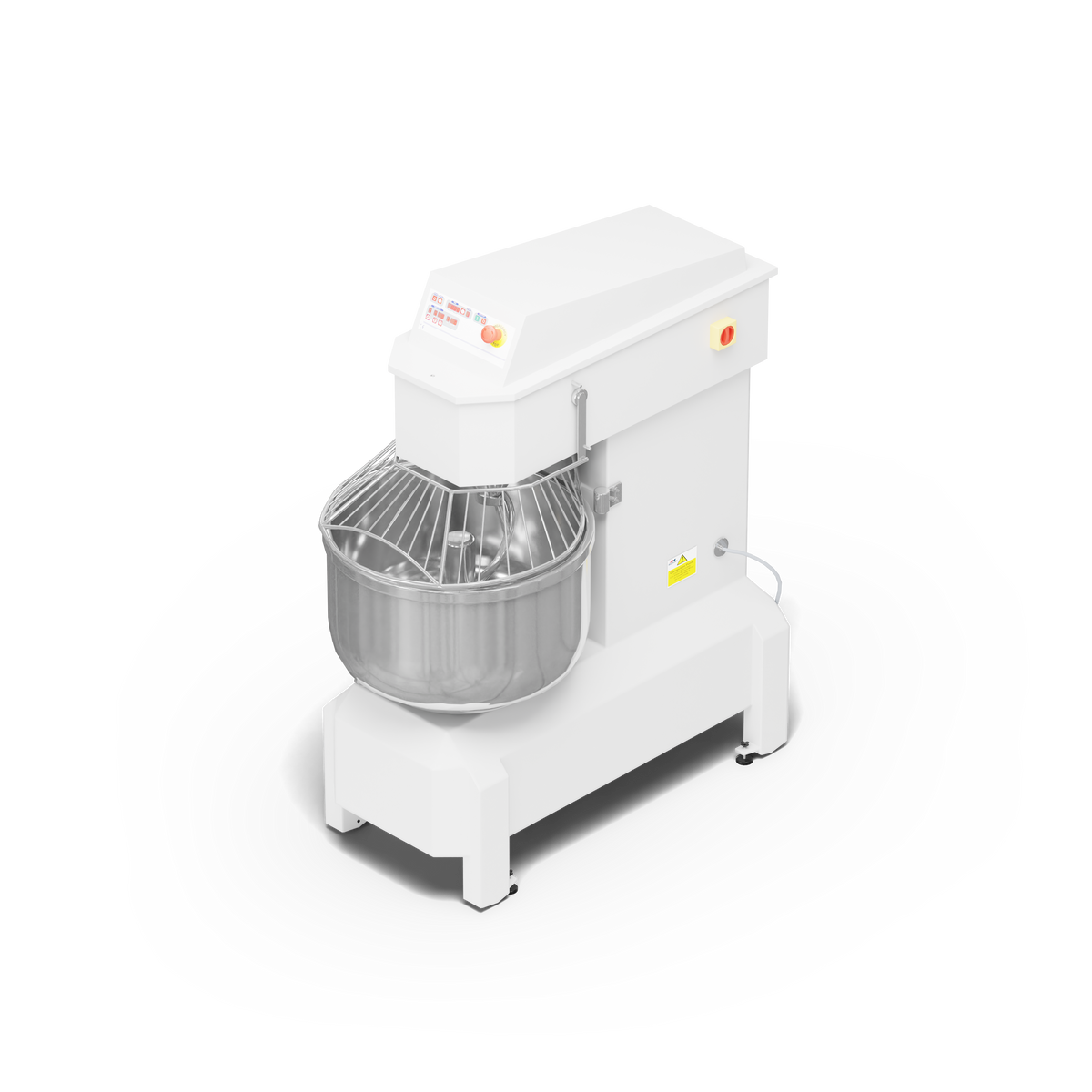

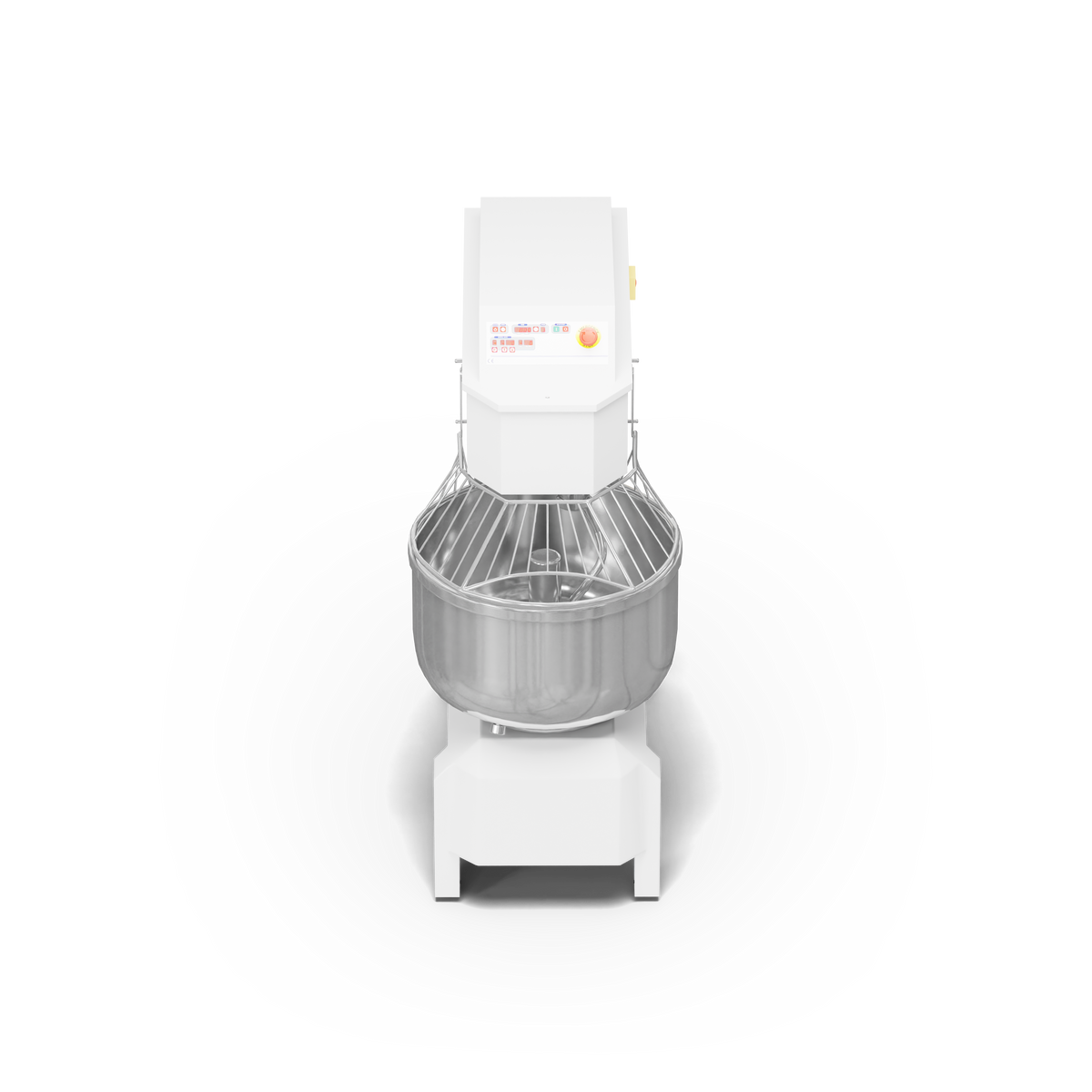

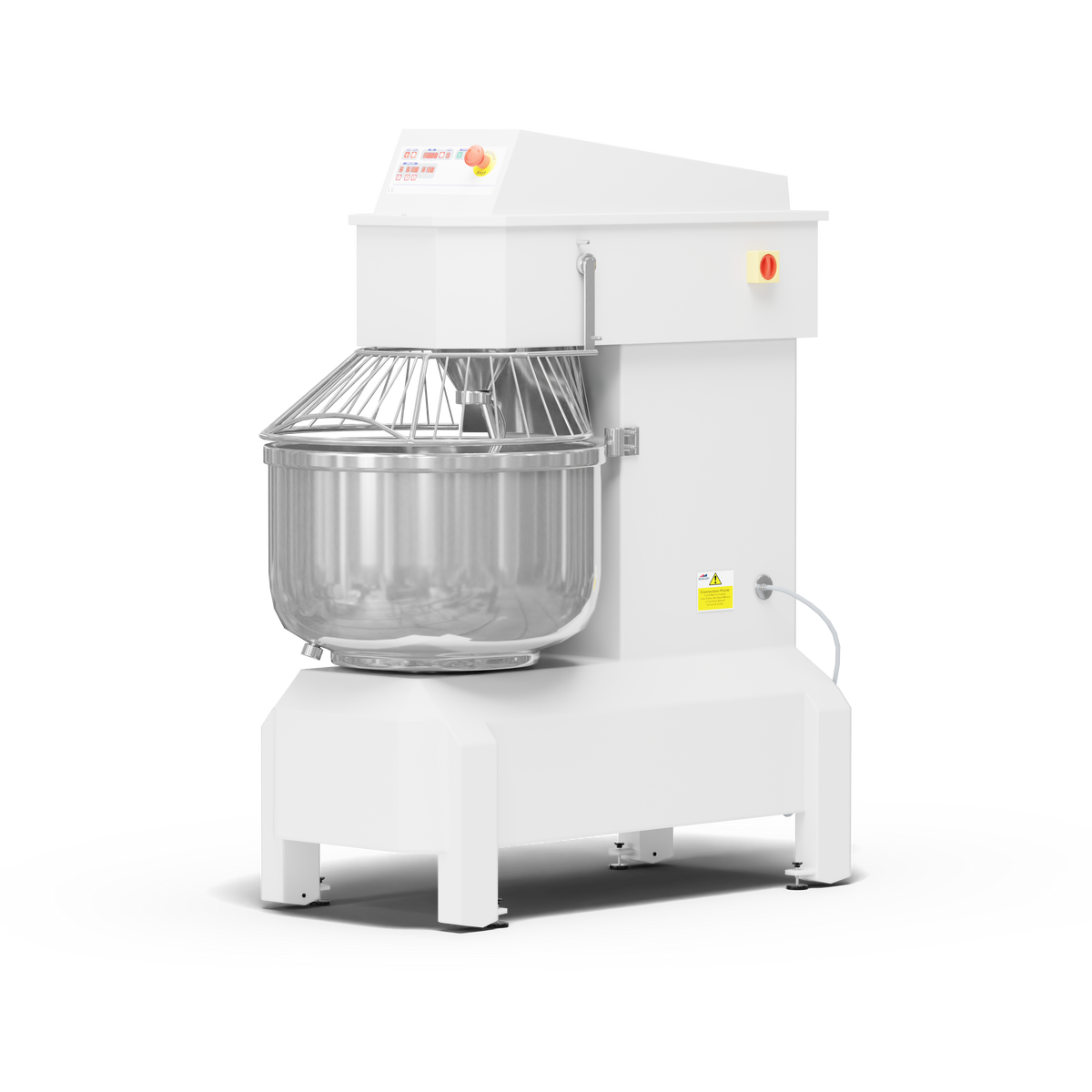

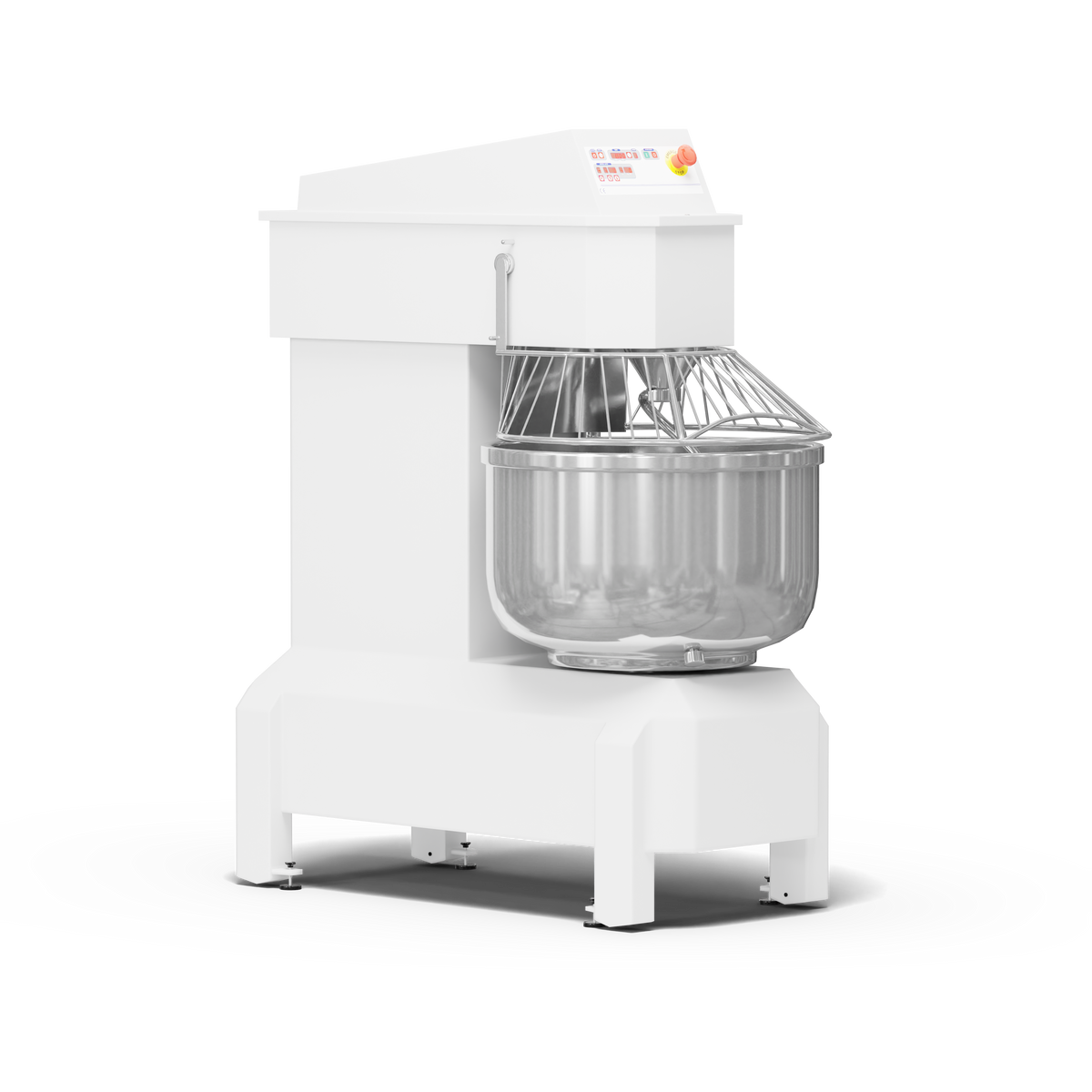

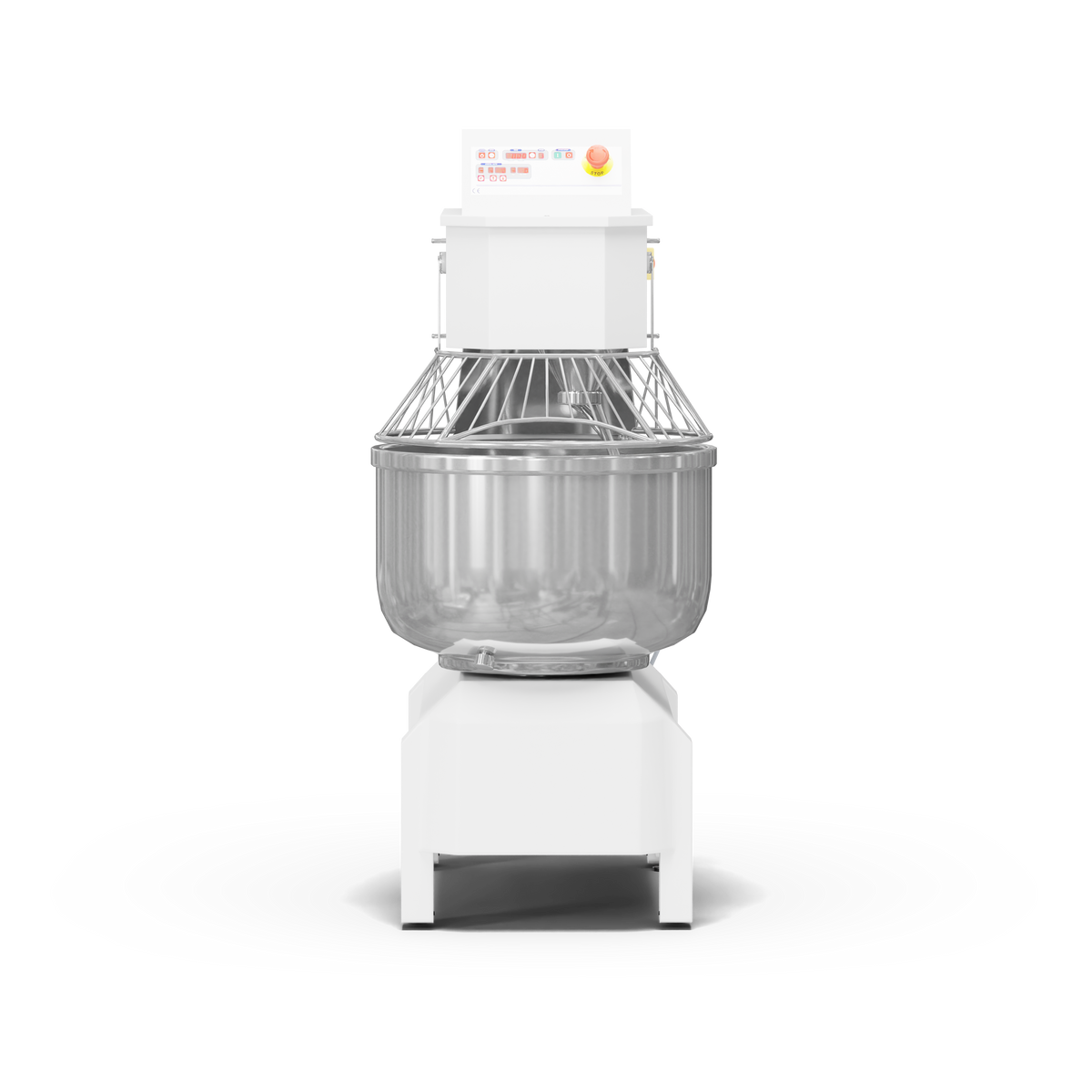

Doyon AEF050 Spiral Mixer, 118 Qt. Bowl, 159 lb Dough Capacity, Jog & Reverse

The Doyon AEF050 is a 118-quart spiral mixer with a stationary stainless bowl that kneads up to 159 lb of dough (at about 60% hydration). It runs on 208-240V / 3-Phase service and adds jog and reverse bowl control.

Spiral Kneading for Better Dough

A spiral hook works the dough against a center post in a turning bowl, kneading it quickly with less friction and heat than a planetary mixer. Cooler dough means better yeast activity and stronger gluten, which is why bakeries use spirals for bread, bagel and pizza dough.

The mixer runs two speeds and switches from first to second automatically on a timer, with up to 9 stored speed-and-time programs. A belt drive keeps service simple compared with gearboxes, and a built-in drain plug makes washing the bowl easier.

Why Operators Choose It

• Better dough: two-stage kneading with low dough heating.
• Programmable: 2 speeds, auto-switch, 99-minute timer, 9 programs.
• Easy cleaning: built-in bowl drain, jog and reverse for cleaning around the hook.
• Safety: padlockable power, emergency stop, bowl guard motor cut-off.
• Low upkeep: non-slip belt drive with thermal overload protection.

Ideal For

Bakeries, pizzerias, bagel shops and commissaries mixing bread, pizza and bagel dough in volume.

Specifications

Installation & Utility Requirements

Electrical service: 208-240V, 3-phase, 20 A, NEMA 15-30 plug.

Install by a qualified technician per local codes and the Doyon installation manual.

What's Included

• 118 qt stainless steel bowl with center post
• Stainless steel spiral dough hook
• Bowl guard

Factory Options (Additional Cost)

• Stainless steel construction
• Touchscreen controls
• Paddle and scraper (factory installation required)
• Marine application

Warranty

2-year parts and 1-year labor limited warranty from Doyon (USA and Canada).

Download the Doyon AEF050 spec sheet (PDF)

Specifications per Doyon data; subject to change by the manufacturer.
