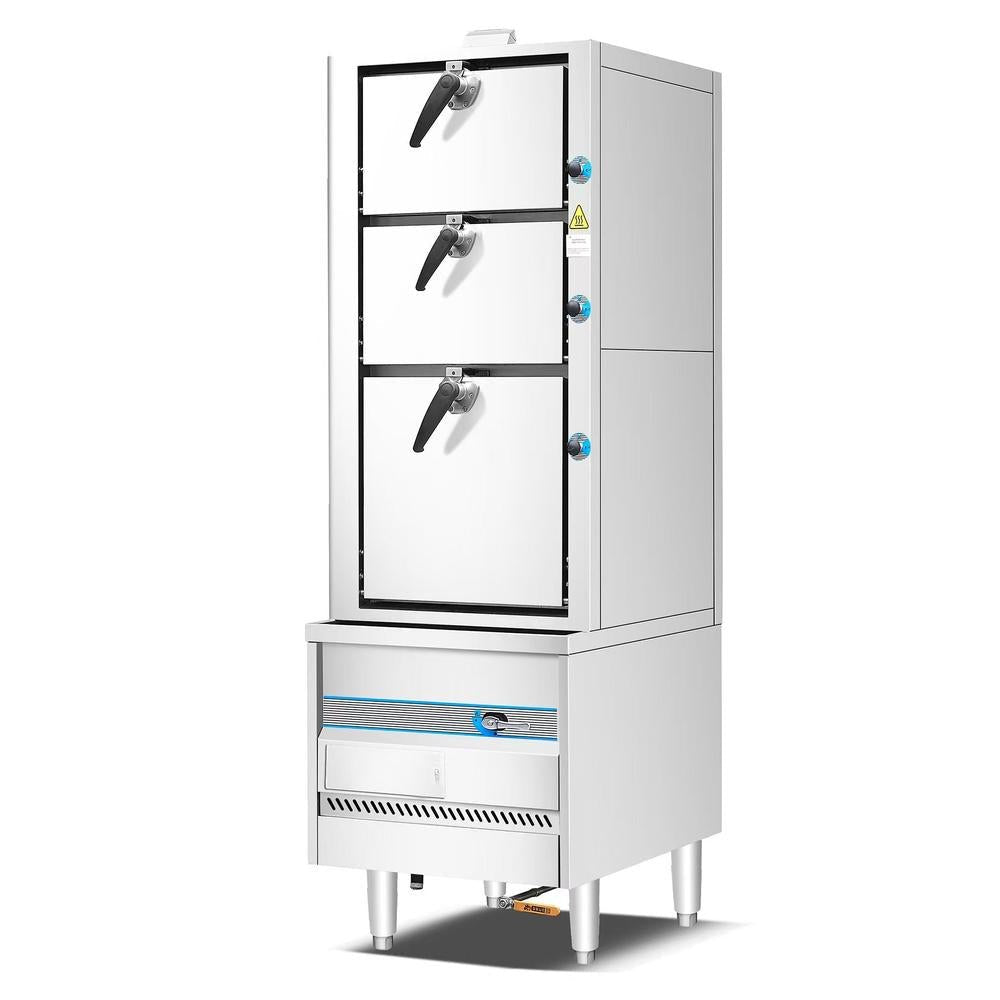

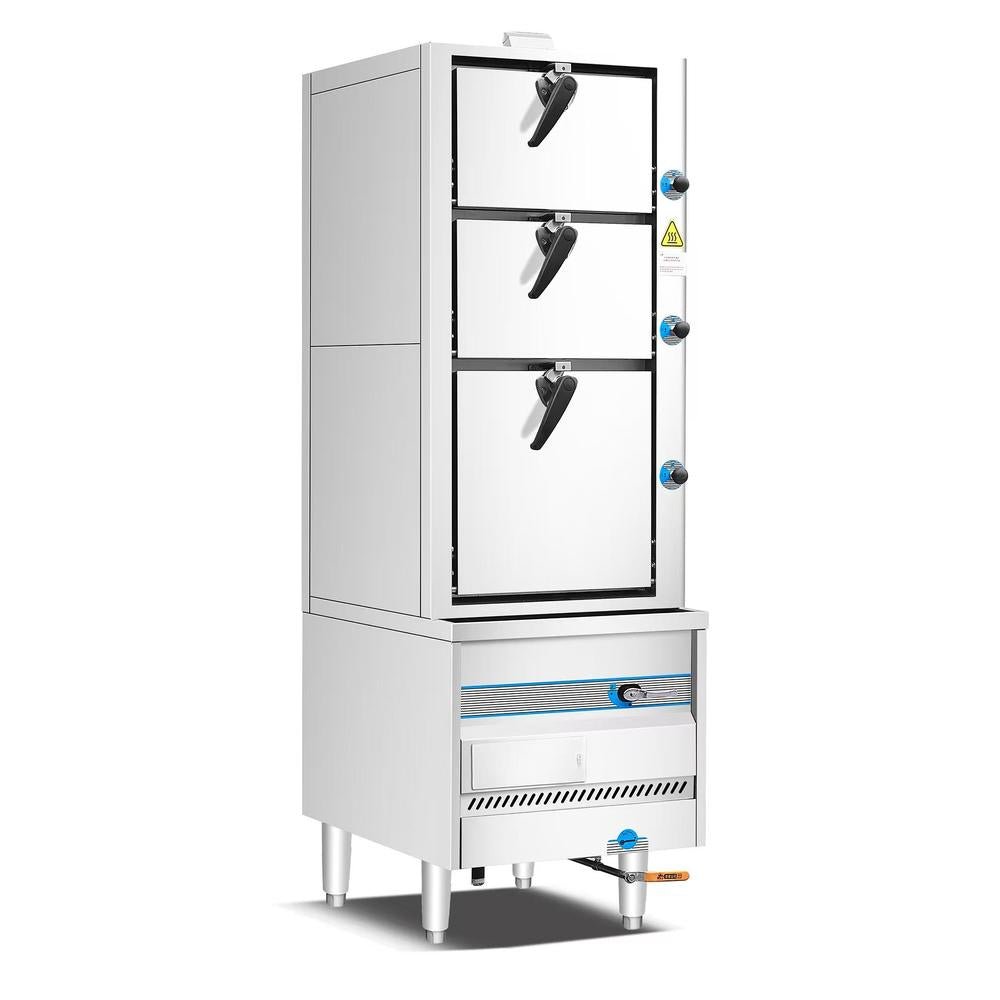

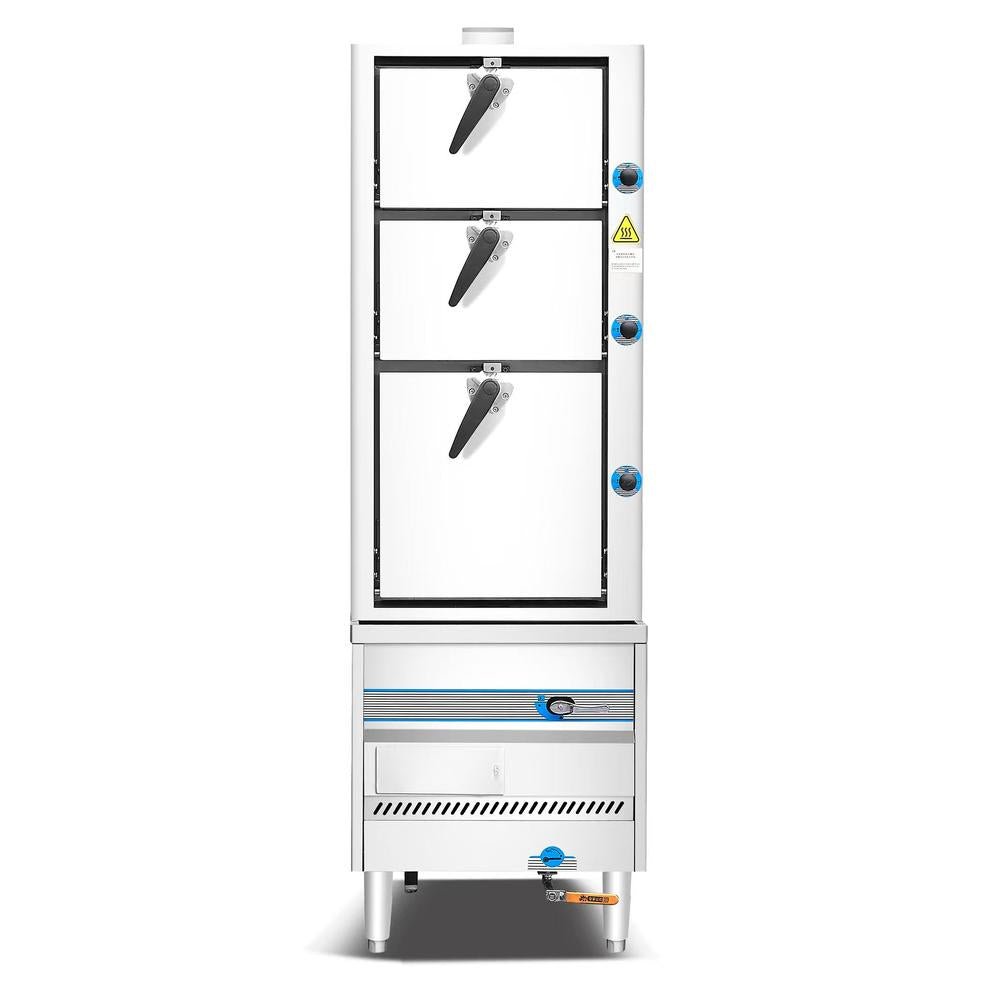

Dukers DCSC24 24" Commercial Steam Cabinet, 3 Compartments, 90,000 BTU, Stainless Steel
Steaming is one of the fastest, gentlest ways to cook vegetables, dumplings, buns, seafood and rice in quantity, and a dedicated steam cabinet lets you do it all day without tying up the range. The Dukers DCSC24 stacks three independent steaming compartments into a 24-inch-wide footprint, a practical fit for dim sum kitchens, commissaries and caterers short on floor space.
Two high-efficiency natural-draft burners deliver 45,000 BTU/hr each, 90,000 BTU/hr in total,. Dual gas control valves give you rapid, low and hold settings. The cabinet stands 24" wide, 35-1/2" deep and 74-3/4" tall, built in stainless steel with food-grade stainless in every steam-contact area.
What you will notice in day-to-day use
- Three dishes, no flavor mixing. Each compartment works independently, so fish, vegetables and buns can steam at the same time without picking up each other's flavors.
- Steam on your terms. Dual gas valves let you run hard for a fast cook, ease back, or hold.
- Water you do not have to watch. Automatic water level control with built-in dry-fire protection keeps the stainless tank topped up and protects the cabinet.

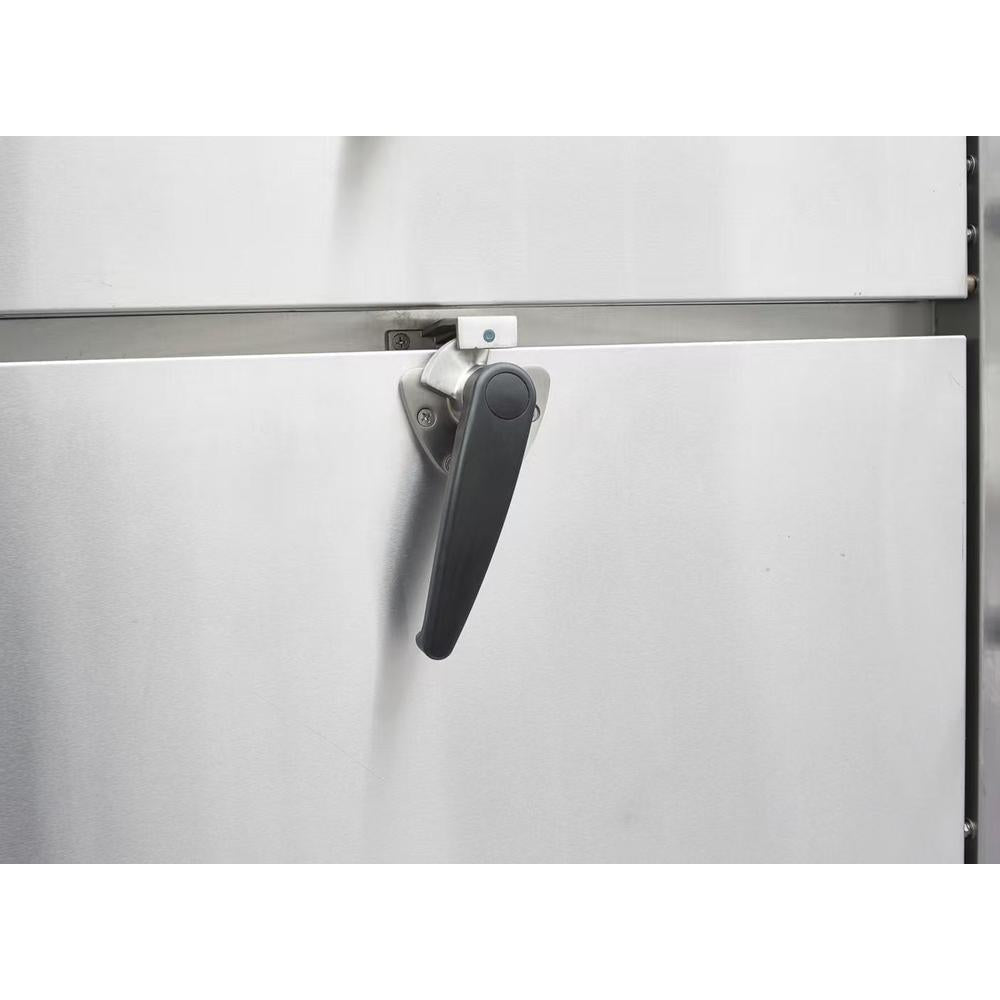

- Heat stays where it belongs. Reinforced latches and silicone door gaskets seal in heat and moisture for more efficient cooking.

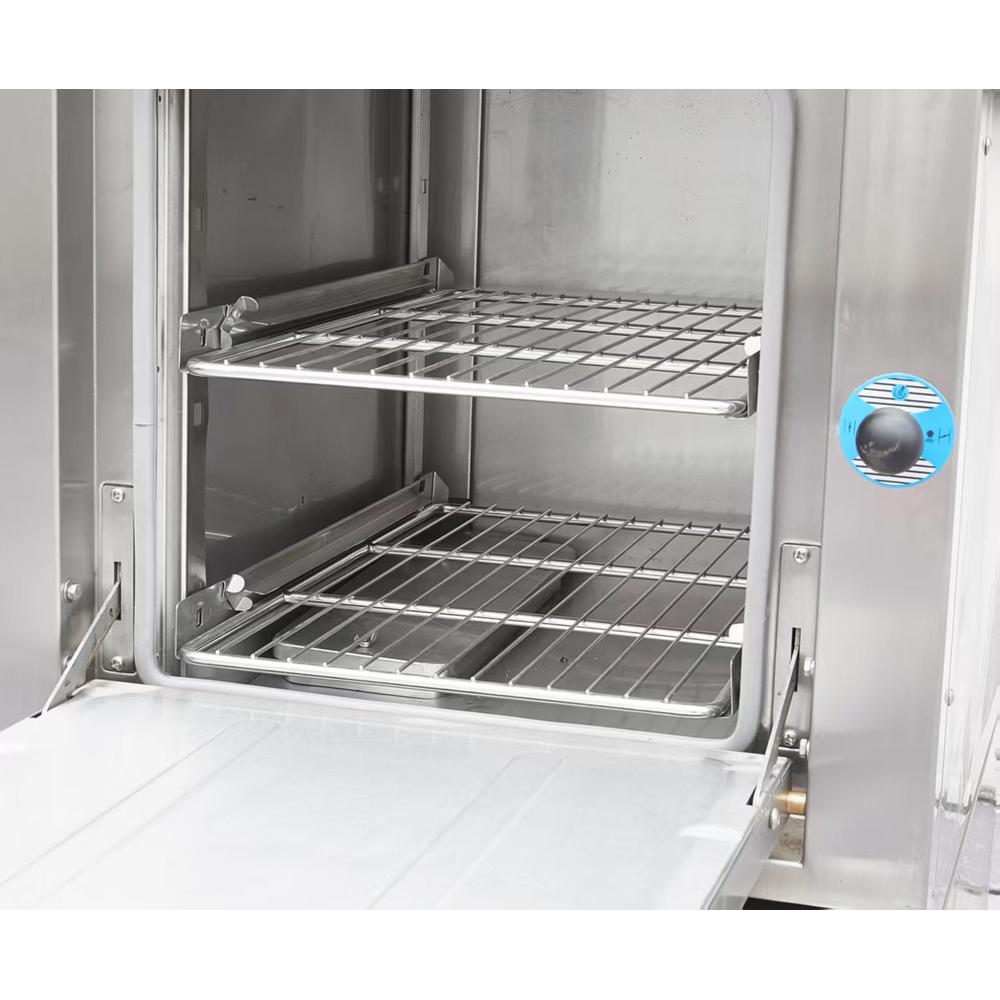

- Easy daily care. Removable racks, a front drain valve and front-access service make cleaning and maintenance straightforward.
Choosing your setup
Gas type: the cabinet runs on natural gas or propane. Choose the gas your kitchen uses above so it ships with the right orifices; the pressure and orifice for each are below.
| Gas | Gas pressure | Orifice |
|---|---|---|
| Natural gas | 4" W.C. | #32 |
| Liquid propane | 10" W.C. | #48 |
Specifications
| Brand | Dukers |
| Model | DCSC24 |
| Type | Commercial gas steam cabinet, 3 independent compartments |
| Burners | 2 natural-draft burners, 45,000 BTU/hr each |
| Total input | 90,000 BTU/hr |
| Compartments (W x D x H) | Upper and middle: 14-1/2" x 23-1/4" x 8-3/4"; lower: 14-1/2" x 23-1/4" x 15-3/4" |
| Controls | Dual gas control valves (rapid, low and hold settings) |
| Water | Auto water level control, dry-fire protection, stainless tank |
| Doors | Reinforced latches, silicone gasket seal; removable racks; front drain valve |
| Construction | Stainless steel; food-grade stainless steel in all steam-contact areas |
| Gas pressure | 4" W.C. natural gas / 10" W.C. propane |
| Dimensions (W x D x H) | 24" x 35-1/2" x 74-3/4" |
| Shipping dimensions (W x D x H) | 28" x 39-3/4" x 82-1/4" |
| Net weight | 202 lb |
| Shipping weight | 247 lb |
Before it arrives
- Gas: have a qualified installer connect the gas supply and confirm the cabinet is set up for natural gas or propane.
- Water and drain: a water connection is required for continuous steaming; plan a supply line and a spot for the front drain valve to empty.
- Ventilation: install under a commercial exhaust hood, following your local code.
- Delivery: at 74-3/4" tall and 24" wide, check doorway heights and the route in before it arrives.
Warranty
1 year parts and labor from Dukers.
Specifications per Dukers data; subject to change by the manufacturer.
