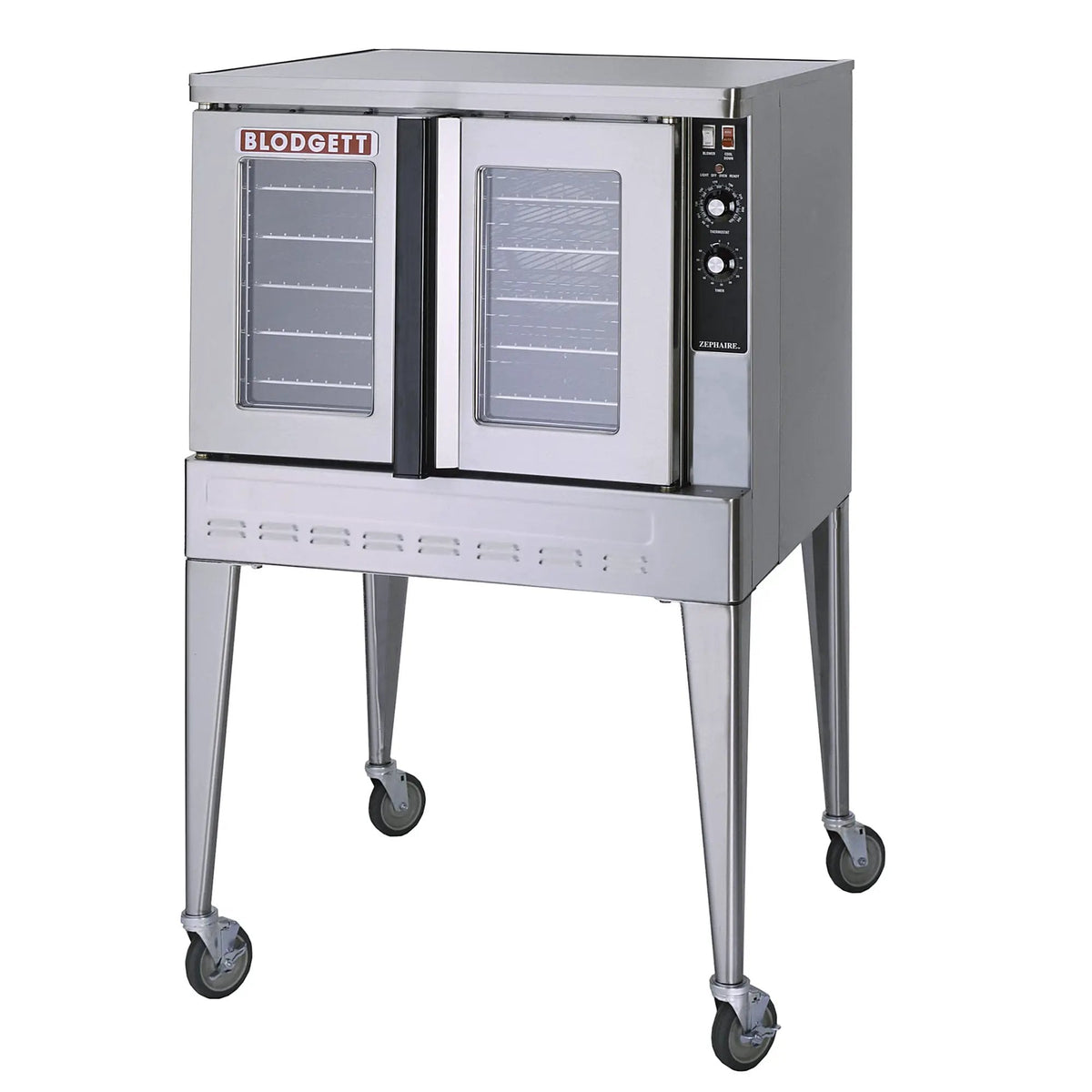

Blodgett ZEPH-200-G Zephaire Single Full-Size Gas Convection Oven - 60,000 BTU, Single Section

One deck, natural gas or liquid propane and the deeper bakery chamber: the single ZEPH-200-G measures 38.25 inches wide by 36.88 deep and 57 tall on 25 inch legs, with a cavity 28-1/4 inches front to back. Five 18 by 26 inch pans go in per load across eleven rack positions. The burner takes 60,000 BTU/hr at 7.0 to 10.5 inches W.C., and a solid state thermostat holds anywhere between 200 F and 500 F. Allow 6 inches of clearance and 617 pounds of floor loading.

• 60,000 BTU/hr on natural gas or liquid propane, with the manifold regulated to 3.5 inches W.C. behind a 3/4 inch NPT inlet.
• Bakery depth cavity at 28-1/4 inches, deeper than a standard depth Zephaire, for full size 18 by 26 inch pans.
• Five chrome plated racks lift out for cleaning, and eleven positions put one as close as 1-5/8 inches to the next.
• SSI-M thermostat and timer on separate dials, with an SSD panel, LED display, Cook and Hold and Pulse Plus available instead.
• 57 inches tall on 25 inch adjustable stainless legs, 617 pounds, and 6 inches of clearance to construction.

Specifications

• Model: ZEPH-200-G
• Series: Zephaire
• Configuration: Single section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Exterior dimensions (W x D x H): 38.25"W x 36.88"L x 57"H (with 6" draft diverter)
• Interior cavity: 29"W x 20"H x 28-1/4"D
• Racks: Five chrome-plated removable racks with eleven rack positions
• Rack spacing: minimum 1-5/8" spacing
• Temperature range: 200 F to 500 F
• Controls: SSI-M standard; optional SSD with LED display, Cook & Hold, Pulse Plus(R)
• Doors: Dual pane thermal glass windows encased in stainless steel door frames
• Gas connection: 3/4" NPT inlet
• Weight: 617 lbs
• Warranty: Two year parts and labor warranty; Three year limited oven door warranty

Questions & answers

What is the Blodgett ZEPH-200-G Zephaire Single Full-Size Gas Convection Oven?
The ZEPH-200-G Zephaire Single Full-Size Gas Convection Oven is gas convection oven. It operates from 200 F to 500 F.

What are the dimensions of the ZEPH-200-G Zephaire Single Full-Size Gas Convection Oven?
Blodgett gives the exterior as 38.25"W x 36.88"L x 57"H (with 6" draft diverter).

What are the ZEPH-200-G Zephaire Single Full-Size Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT inlet.
