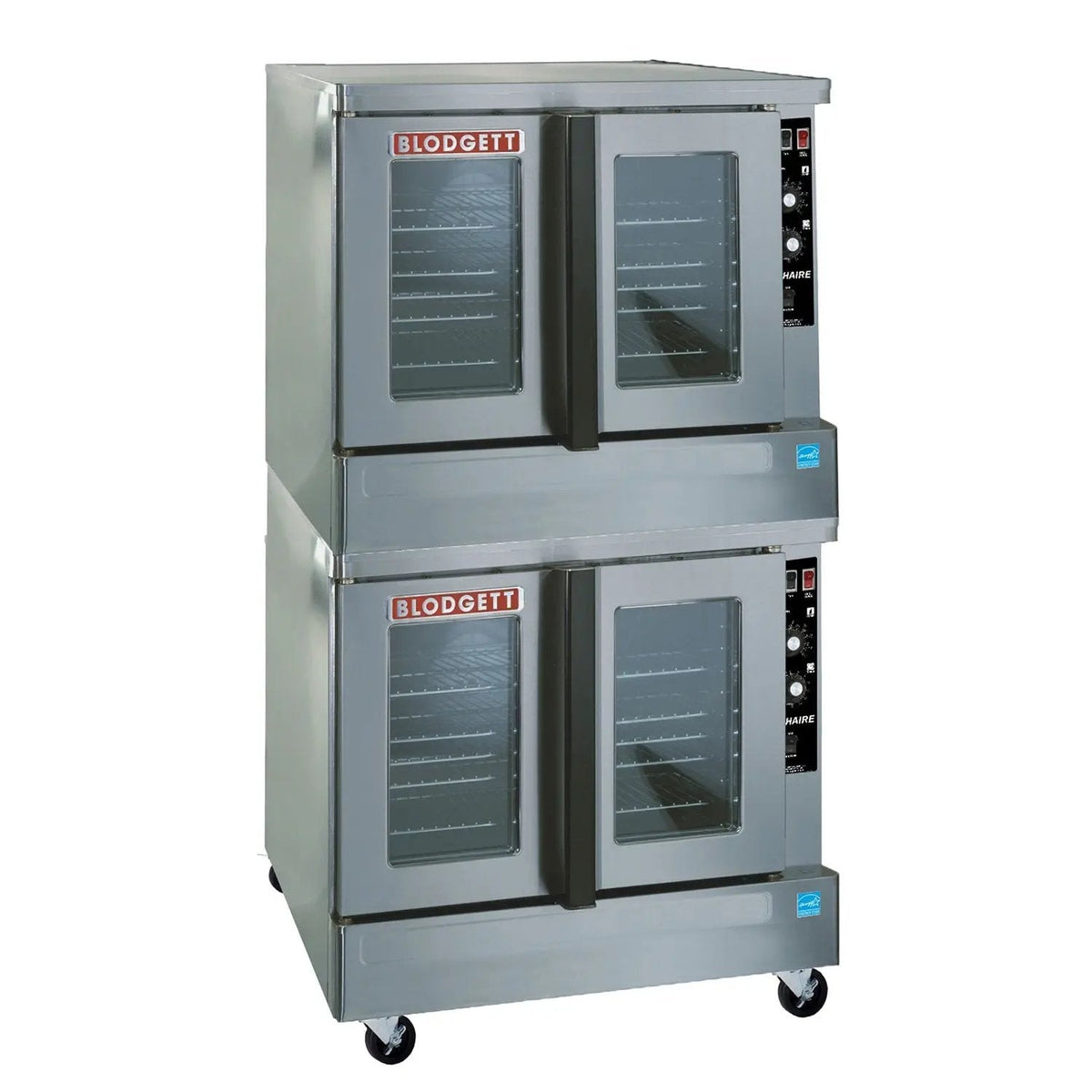

Blodgett ZEPH-100-E Zephaire Double Full-Size Electric Convection Oven - 22 kW, 208V/1ph, Double Stack

Two electric sections stacked to 70-5/8", each rated 11 kW. Zephaire keeps the frame, liner and door build of the premium ovens but puts a simpler control on the front: SSI-M dials for thermostat and timer, which is what an institutional kitchen with steady staff turnover usually wants. Each 29" W x 20" H x 24-1/4" D cavity takes five full-size sheet pans or ten steam table pans across eleven rack positions, anywhere from 200°F to 500°F.

• Two independent cavities: one deck can bake while the other holds, each on its own two-speed fan.
• SSI-M dial control as standard, with SSD digital available where a menu needs Cook & Hold and Pulse Plus.
• Porcelainized on both sides, the liner resists the rust that starts underneath a spill and works outward.
• Doors are mounted in three places straight into the angle-iron frame, so alignment survives years of being kicked shut.
• The double section weighs 960 lbs and sits on adjustable stainless legs that take up a sloping floor.

Specifications

• Model: ZEPH-100-E
• Series: Zephaire
• Configuration: Double section
• Fuel: Electric
• Electrical supply: 208V / 1-phase / 22 kW
• Exterior dimensions (W x D x H): 70-5/8"H x 38-1/4"W x 36-7/8"D
• Interior cavity: 29"W x 20"H x 24-1/4"D
• Capacity: Accepts five 18" x 26" standard full-size baking pans
• Racks: Five chrome-plated removable racks with eleven rack positions
• Rack spacing: Minimum 1-5/8" rack spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Controls: SSI-M solid state infinite control with separate thermostat and timer dials (standard); optional SSD
• Doors: Dual pane thermal glass windows encased in stainless steel door frames
• Weight: 960 lbs.
• Certifications: ENERGY STAR qualified
• Warranty: Two year parts and two year labor warranty; Three year limited oven door warranty

Questions & answers

What is the Blodgett ZEPH-100-E Zephaire Double Full-Size Electric Convection Oven?
The ZEPH-100-E Zephaire Double Full-Size Electric Convection Oven is electric convection oven, Accepts five 18" x 26" standard full-size baking pans, supplied at 208V / 1-phase / 22 kW. It operates from 200 F (93 C) to 500 F (260 C).

What are the dimensions of the ZEPH-100-E Zephaire Double Full-Size Electric Convection Oven?
Blodgett gives the exterior as 70-5/8"H x 38-1/4"W x 36-7/8"D.

What power supply does the ZEPH-100-E Zephaire Double Full-Size Electric Convection Oven need?
This listing is the 208V / 1-phase / 22 kW build.
