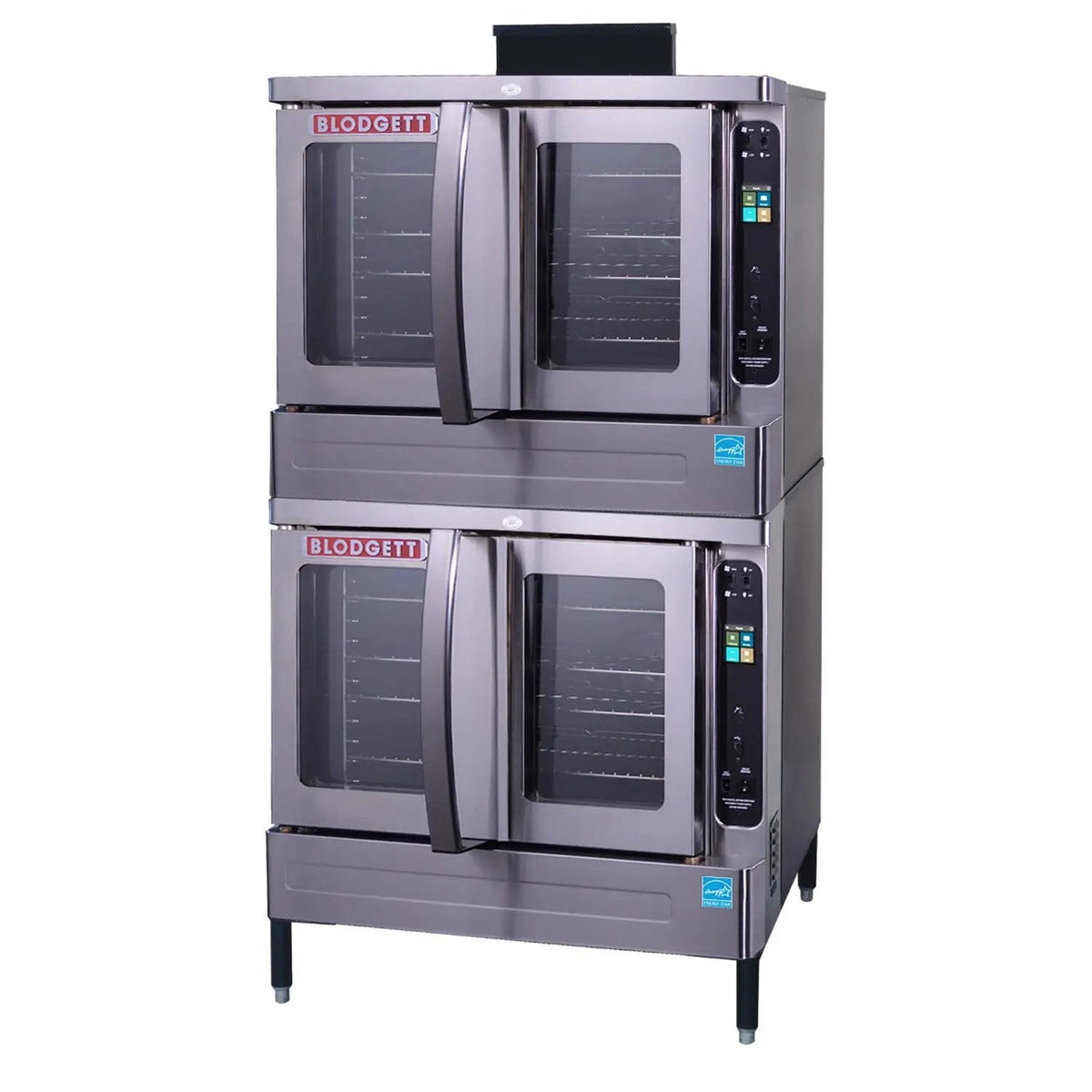

Blodgett MARK V-100 Double Full-Size Electric Convection Oven - 11 kW, 208V/3ph, Double Stack

Two full-size electric sections in one stack, 11 kW each, standing on 6 inch legs. Each compartment is 29 inches wide by 20 high and 24-1/4 deep and takes five 18 by 26 inch sheet pans across eleven rack positions. Heat comes from three tubular elements behind a two-speed fan, with a solid state digital control running Cook & Hold and Pulse Plus between 200°F and 500°F. The pair occupies the same 38-1/4 by 36-7/8 inch floor space as a single section and stands 70-5/8 inches tall.

• Two 11 kW sections, each separately controlled, so one deck can hold while the other bakes.
• Five 18 by 26 inch sheet pans a compartment over eleven rack positions, spaced no closer than 1-5/8 inches.
• Double-sided porcelainized 14 gauge liner resists the hidden rust that eats a cavity from behind the panel.
• Welded angle iron framing and triple-mounted pressure lock doors keep the seals tight as the stack ages.
• Solid state digital controls read out on LED, with Cook & Hold and Pulse Plus across 200°F to 500°F.
• Warranty is three years parts and two years labor, with five years limited on the oven doors.

Specifications

• Model: MARK V-100
• Configuration: Double section
• Fuel: Electric
• Electrical supply: 208V / 3-phase / 11 kW
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 24-1/4" (616mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans per compartment
• Racks: Five chrome-plated removable racks
• Rack spacing: Minimum of 1-5/8" (41mm)
• Temperature range: 200°F (93°C) to 500°F (260°C)
• Controls: SSD solid state digital control with LED display, Cook & Hold and Pulse Plus (standard); SSI-M solid state infinite with manual timer (optional)
• Doors: Dual pane thermal glass window encased in stainless steel door frame; triple-mounted pressure lock door design with turnbuckle assembly
• Weight: 1020 lbs. (463 kg)
• Certifications: ENERGY STAR qualified
• Warranty: Three year parts and two year labor warranty. Five year limited oven door warranty.

Questions & answers

What is the Blodgett MARK V-100 Double Full-Size Electric Convection Oven?
The MARK V-100 Double Full-Size Electric Convection Oven is electric convection oven, Accepts five 18" x 26" standard full-size baking pans per compartment, supplied at 208V / 3-phase / 11 kW. It operates from 200°F (93°C) to 500°F (260°C).

How big is the cavity on the MARK V-100 Double Full-Size Electric Convection Oven?
The baking compartment measures 29" (737mm) W x 20" (508mm) H x 24-1/4" (616mm) D.

What power supply does the MARK V-100 Double Full-Size Electric Convection Oven need?
This listing is the 208V / 3-phase / 11 kW build.
