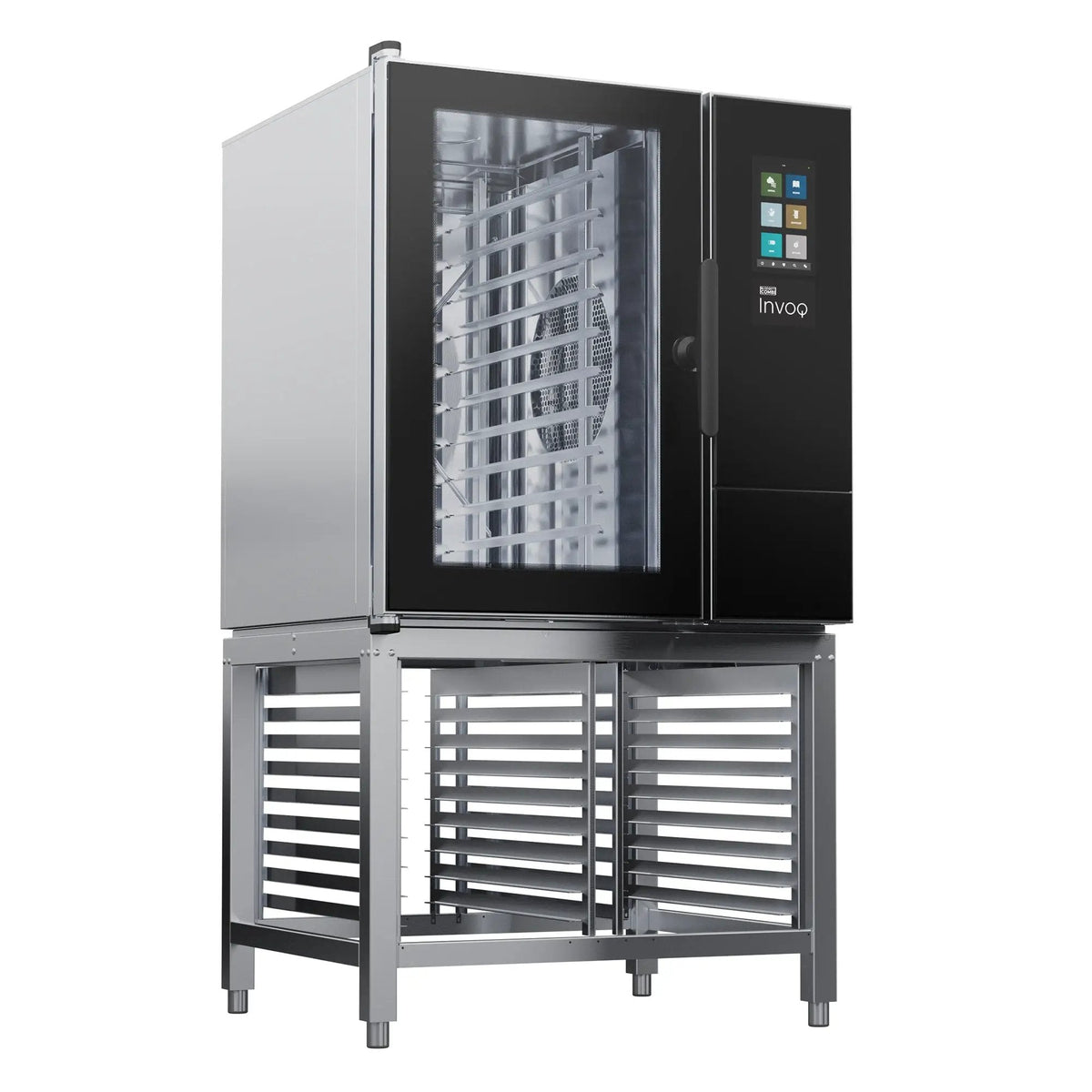

Blodgett INVOQ 101BE Single Full-Size Combi Oven - 208V/3ph, Boiler + Injection

The Invoq Hybrid in its 10-1/1 GN electric form pairs a boiler with an injection steam system, so dense saturation is on tap without one source having to recover alone. Total draw is 19.3 kW, with 18 kW of convection output and 18 kW of steam output, into a cavity 32" high by 20" wide by 26.8" deep. Pans load on 2.75" runners, and the whole oven is driven from a 7" capacitive touchscreen running Android 9.

• A boiler and an injection system work together, so high-density steam is available without waiting on a single generator to catch up.
• Eight heavy-duty stainless wire racks ship with the oven on 2.75" runners, rated to 9.9 lbs per tray and 99.2 lbs across the oven.
• Clearance is zero on the left and back and 1.6" on the right, so the oven drops into a line without a service gap.
• CareCycle runs the wash automatically with tablet guidance, and HACCP records are held for 180 days.
• ClimateControl manages humidity, air and heat together, while MenuPlanner and SmartChef handle recipe grouping and automated cooking from the same screen.
• ENERGY STAR compliant, with an IPX5 water protection rating.

Specifications

• Model: INVOQ 101BE
• Series: INVOQ
• Configuration: Single section, boiler and injection steam
• Fuel: Electric
• Heat input: 19.3 kW total
• Electrical supply: 208V / 3-phase
• Exterior dimensions (W x D x H): 937 x 826 x 1081 mm / 36.9 x 32.5 x 42.6 inches
• Capacity: 10-1/1 GN
• Racks: 8 heavy-duty stainless steel wire racks
• Rack spacing: 2.75" (70 mm) runners
• Controls: 7" TFT capacitive touch screen, Android 9, 27 preset languages
• Water connection: 3/4 inches (GHT)
• Weight: Net 369 lbs (electric); shipping 413 lbs (electric). Gas 101BG: net 383 lbs, shipping 427 lbs
• Certifications: ENERGY STAR compliant; IPX5; HACCP-ready with automatic documentation
• Warranty: Standard warranty included; extended options available per distributor purchase agreement

Questions & answers

What is the Blodgett INVOQ 101BE Single Full-Size Combi Oven?
The INVOQ 101BE Single Full-Size Combi Oven is combi oven, 10-1/1 GN, rated at 19.3 kW total.

What are the dimensions of the INVOQ 101BE Single Full-Size Combi Oven?
Blodgett gives the exterior as 937 x 826 x 1081 mm / 36.9 x 32.5 x 42.6 inches.

What power supply does the INVOQ 101BE Single Full-Size Combi Oven need?
This listing is the 208V / 3-phase build.
