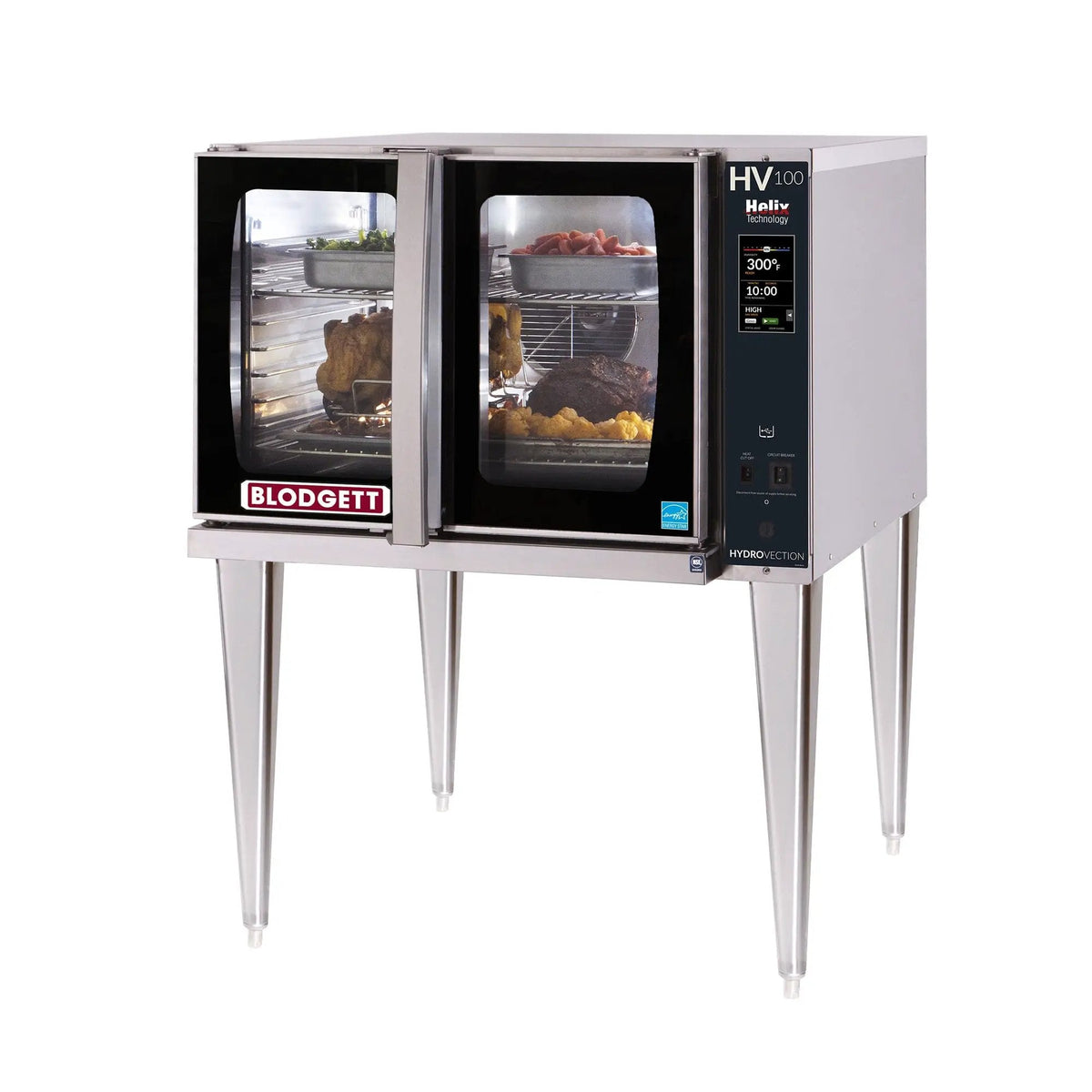

Blodgett HVH-100G Single Full-Size Gas Convection Oven - 60,000 BTU, Natural Gas, Single Section

Natural gas feeds this single-compartment Helix oven at 7.0" W.C. static inlet, with three inshot burners rated 60,000 BTU/hr per section. Helix forces air into the cavity and carries out the moisture the food gives up, which is the working difference from a standard hydrovection oven. The cabinet stands 56.5" tall, the cavity is 29" wide by 23.43" deep, and five full-size pans load across ten rack positions behind triple mounted doors.

• Direct spark ignition lights three inshot burners, putting 60,000 BTU/hr into a single cavity.
• Helix jets evacuate moisture from the cavity as it is released, keeping the bake dry when hot air mode is selected.
• SmartTouch2 runs the oven from a 7-inch touchscreen storing up to 500 recipes with HACCP capability.
• Five stainless racks in ten positions hold 18" x 26" full-size sheet pans or 12" x 20" steam table pans.
• About 520 lbs per section; sides need 0" clearance, the back needs 6", and the oven clears a 25.6" doorway uncrated.
• One year parts and one year labor.

Specifications

• Model: HVH-100G
• Configuration: Single section
• Fuel: Natural Gas
• Interior cavity: 29" W x 20" H x 23.43" D
• Capacity: Accepts five 18" x 26" standard full-size baking pans
• Racks: Five removable stainless steel racks
• Controls: SmartTouch2 control with 7-inch touchscreen, stores up to 500 recipes with HACCP capability
• Doors: Black glass doors with one piece curved handle; triple mounted door design with turnbuckle assembly
• Gas connection: 3/4" NPT
• Water connection: 3/4" NPT garden hose - cold water only; 30 (min) - 50 (max) PSI; consumption 2.5 - 4.0 GPH based on cooking mode
• Weight: 520 lbs. (236 kg) per section
• Warranty: 1 year parts and 1 year labor warranty.

Questions & answers

What is the Blodgett HVH-100G Single Full-Size Gas Convection Oven?
The HVH-100G Single Full-Size Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans.

How big is the cavity on the HVH-100G Single Full-Size Gas Convection Oven?
The baking compartment measures 29" W x 20" H x 23.43" D.

What are the HVH-100G Single Full-Size Gas Convection Oven utility requirements?
It runs on natural gas: gas connection 3/4" NPT.
