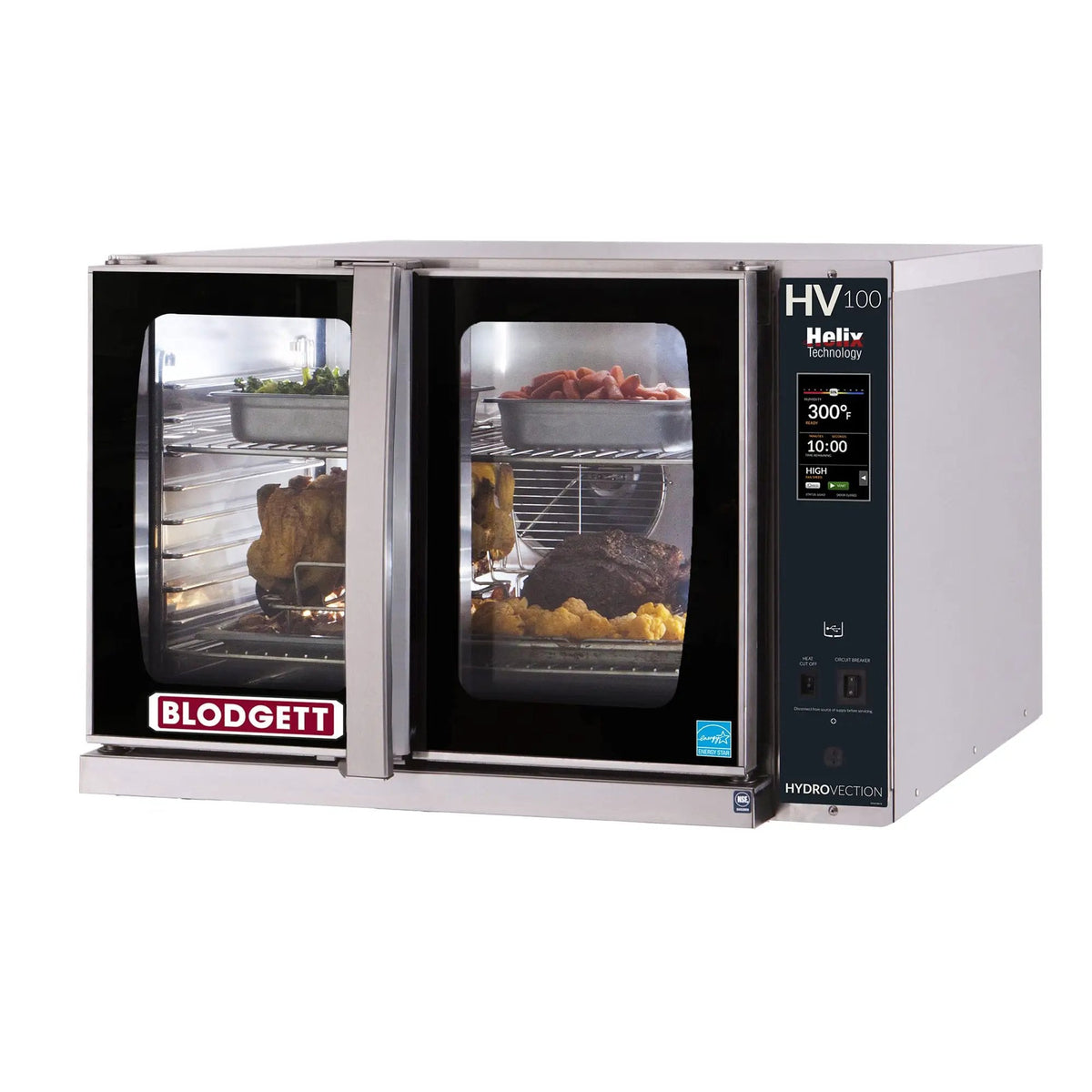

Blodgett HVH-100E Single Full-Size Electric Convection Oven - 15 kW, 208V/3ph, Base Section

Helix is what separates this electric oven from the plain HydroVection: patented jets push air into the cavity and drive off the moisture product gives up as it cooks. Ordered as a base section, it sits at the bottom of a stack on 8-1/2" legs with casters. Six tubular elements draw 15 kW, a 3/4 HP auto-reversing motor with four speeds and a variable frequency drive moves the air, and five full-size pans load across ten rack positions.

• Patented Helix jets force air through the cavity and carry laden moisture out, which is the working difference from a standard hydrovection oven.
• SmartTouch2 is the control here rather than an option: a 7-inch touchscreen holding 500 recipes with rack timing and multi-shelf sequencing.
• As the bottom section of a stack, the welded 304 stainless liner with coved corners carries the compartment above and wipes down without a seam to trap soil.
• Hydrovection modes give low or high humidity, and cavity vent control releases steam when a crust needs to set.
• Up to 2.5" of blanket insulation and a dual pane Low-E door hold the heat inside the cavity.
• One year parts and one year labor.

Specifications

• Model: HVH-100E
• Configuration: Single section, base section
• Fuel: Electric
• Electrical supply: 208V / 3-phase / 15 kW
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 23.43" (595mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans (left-to-right positions)
• Racks: Five stainless steel racks
• Controls: SmartTouch2 control - NEW 7-inch touchscreen stores up to 500 recipes, including rack timing, multi-shelf recipes
• Doors: Black glass doors with one piece curved handle; simultaneous split door operation with catch-latch system
• Water connection: 3/4" NPT garden hose (cold water only); 30 min - 50 max PSI; consumption 2.5-4.0 GPH
• Weight: Approximately 450 lbs. (204 kg) per section
• Warranty: 1 year parts and 1 year labor warranty.

Questions & answers

What is the Blodgett HVH-100E Single Full-Size Electric Convection Oven?
The HVH-100E Single Full-Size Electric Convection Oven is electric convection oven, Accepts five 18" x 26" standard full-size baking pans (left-to-right positions), supplied at 208V / 3-phase / 15 kW.

How big is the cavity on the HVH-100E Single Full-Size Electric Convection Oven?
The baking compartment measures 29" (737mm) W x 20" (508mm) H x 23.43" (595mm) D.

What power supply does the HVH-100E Single Full-Size Electric Convection Oven need?
This listing is the 208V / 3-phase / 15 kW build.
