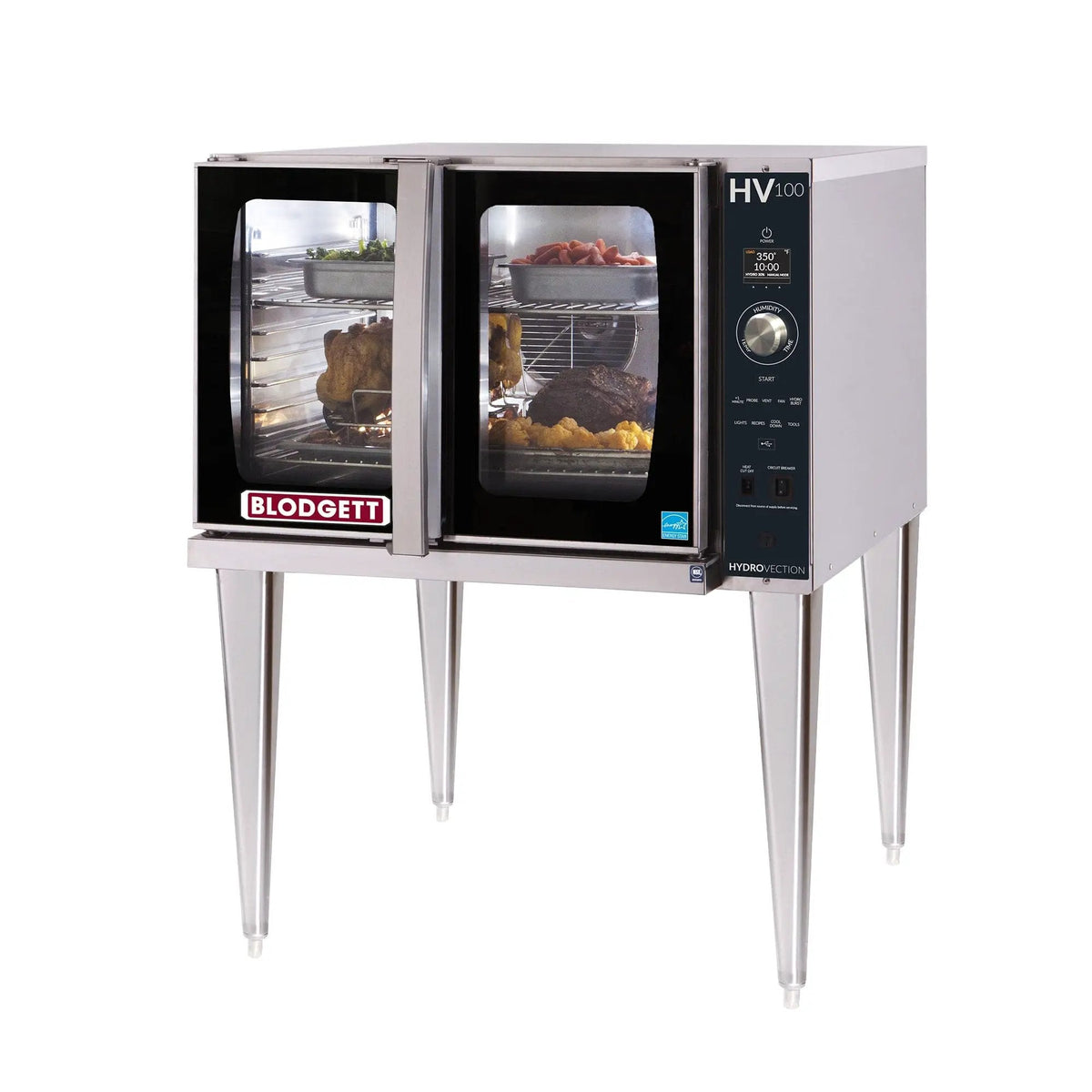

Blodgett HV-100G Single Full-Size Gas Convection Oven - 60,000 BTU, Liquid Propane, Single Section, 25" Legs

Propane kitchens that need moisture but not a boiler are the target here. A single-compartment gas HydroVection, fed at 14.0" W.C. static inlet, burns 60,000 BTU/hr through three inshot burners and meters humidity incrementally into a cavity 29" wide, 20" high and 23.43" deep. Five full-size pans sit across ten rack positions. The footprint is 38.1" by 48.7", side clearance is zero, and the back wants 6".

• Continuous humidity with a Hydroburst shot of 100% humidity covers poaching and gratinating in a single-compartment oven.
• Three inshot burners on direct spark ignition give 60,000 BTU/hr per section with no standing pilot.
• Zero side clearance lets the oven sit against a neighboring unit; the back still needs 6".
• Entry planning is simple: 25.6" uncrated and 30.5" crated through a doorway.
• ENERGY STAR qualified; one year parts and one year labor.

Specifications

• Model: HV-100G
• Configuration: Single section
• Fuel: Liquid Propane
• Interior cavity: 29" W x 20" H x 23.43" D (per section)
• Capacity: Accepts five 18" x 26" standard full-size baking pans
• Racks: Five removable stainless steel racks
• Temperature range: 140-500°F
• Controls: Standard manual programmable control storing 100 recipes
• Doors: Black glass doors with one piece curved handle; simultaneous split door operation with catch-latch system
• Gas connection: 3/4" NPT
• Water connection: 3/4" NPT garden hose cold water only; 30 (min) - 50 (max) PSI; consumption 2.5-4.0 GPH based on cooking mode
• Weight: Approximately 520 lbs. (236 kg) per section
• Certifications: ENERGY STAR qualified
• Warranty: 1 year parts and 1 year labor warranty.

Questions & answers

What is the Blodgett HV-100G Single Full-Size Gas Convection Oven?
The HV-100G Single Full-Size Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans. It operates from 140-500°F.

How big is the cavity on the HV-100G Single Full-Size Gas Convection Oven?
The baking compartment measures 29" W x 20" H x 23.43" D (per section).

What are the HV-100G Single Full-Size Gas Convection Oven utility requirements?
It runs on liquid propane: gas connection 3/4" NPT.
