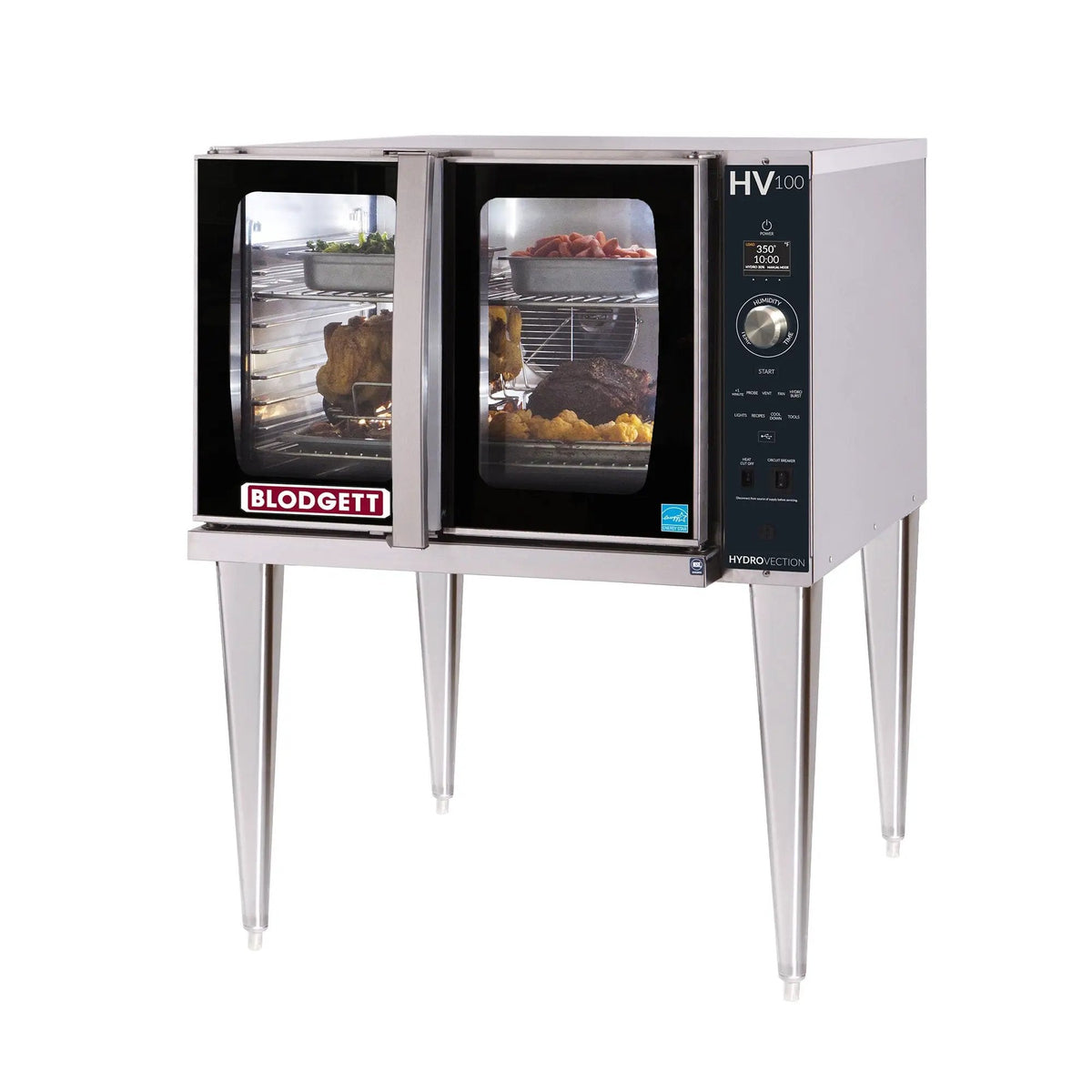

Blodgett HV-100E Single Full-Size Electric Convection Oven - 15 kW, 208V/3ph, Single Section

A standalone HydroVection on 25" adjustable stainless legs, the HV-100E suits kitchens that want humidified cooking without the footprint a combi needs. The cavity runs 29" wide, 20" high and 23.43" deep and holds five full-size sheet pans across ten rack positions. Six tubular elements supply 15 kW per section, humidity is metered into the cavity rather than boiled, temperatures run 140 to 500 degrees F, and the oven takes up 38.1" by 48.7" of floor.

• One compartment, continuously humidified: incremental humidity control with a Hydroburst shot of 100% humidity replaces a separate steamer for poaching and gratinating.
• A four-speed auto-reversing fan on a 3/4 H.P. three-phase motor keeps the bake even from rack to rack.
• Two halogen lights behind a dual pane tempered window with Low-E inner glass let cooks check product without opening the door.
• A hand shower is fitted for washdown and the cavity empties through a 1.25" O.D. drain connection.
• ENERGY STAR qualified; one year parts and one year labor.

Specifications

• Model: HV-100E
• Configuration: Single section
• Fuel: Electric
• Electrical supply: 208V / 3-phase / 15 kW
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 23.43" (595mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans
• Racks: Five stainless steel racks
• Temperature range: 140-500°F
• Controls: Standard control with function selection for hot air, humidity and cool down; stores 100 recipes; USB connection; core probe cook and hold
• Doors: Black glass doors with one piece curved handle; simultaneous split door operation with catch-latch system
• Water connection: 3/4" NPT garden hose - cold water only; 30 (min) - 50 (max) PSI; consumption 2.5 - 4.0 GPH based on cooking mode
• Weight: 450 lbs. (204 kg) per section
• Certifications: ENERGY STAR qualified
• Warranty: 1 year parts and 1 year labor warranty.

Questions & answers

What is the Blodgett HV-100E Single Full-Size Electric Convection Oven?
The HV-100E Single Full-Size Electric Convection Oven is electric convection oven, Accepts five 18" x 26" standard full-size baking pans, supplied at 208V / 3-phase / 15 kW. It operates from 140-500°F.

How big is the cavity on the HV-100E Single Full-Size Electric Convection Oven?
The baking compartment measures 29" (737mm) W x 20" (508mm) H x 23.43" (595mm) D.

What power supply does the HV-100E Single Full-Size Electric Convection Oven need?
This listing is the 208V / 3-phase / 15 kW build.
