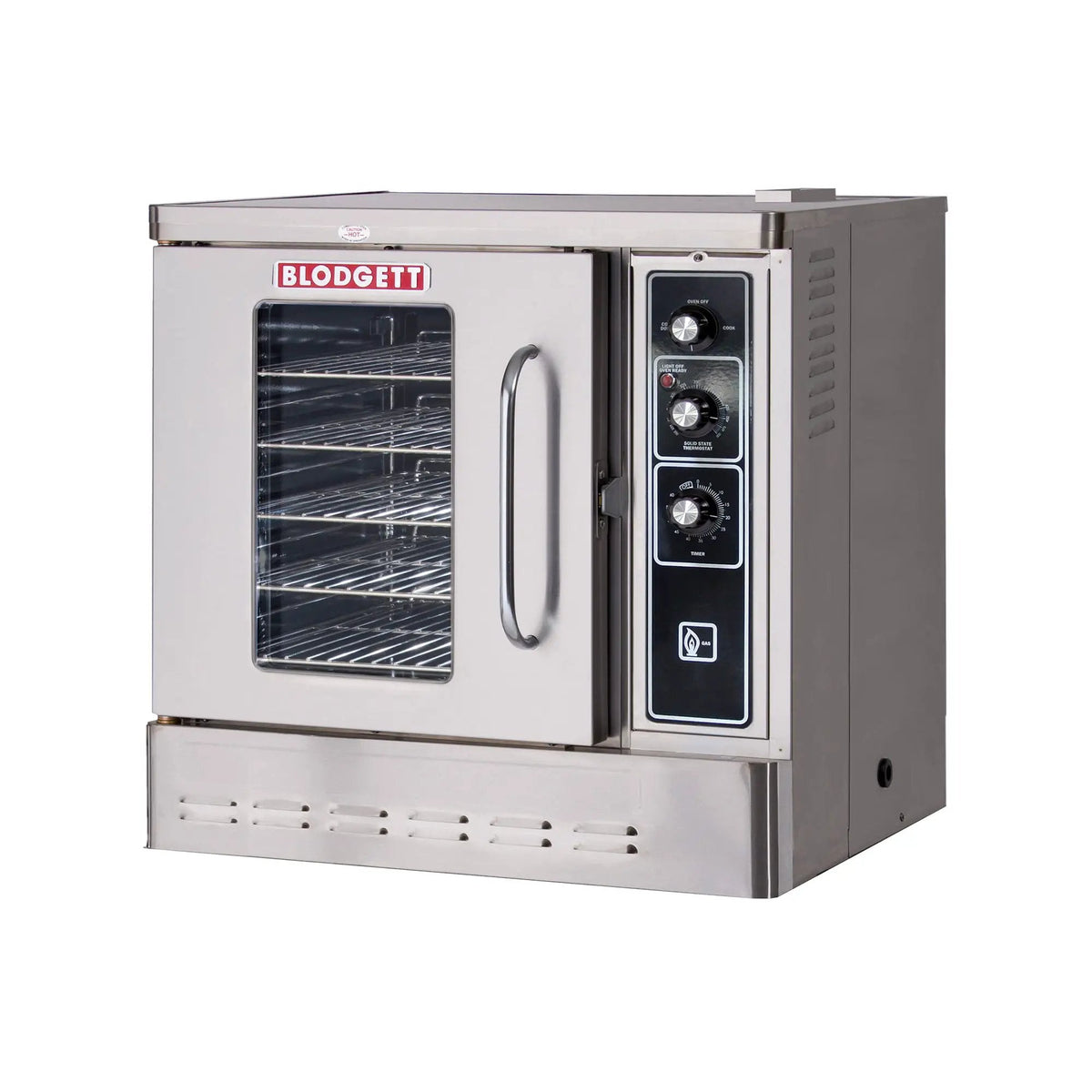

Blodgett DFG-50 Single Half-Size Gas Convection Oven - 27,500 BTU, Stacking Section

Stacked onto an oven already in the line, this additional half-size section adds a second independently fired gas cavity without taking another inch of floor. The compartment measures 15-3/8" wide, 20" high and 21" deep, and holds five 13" x 18" half-size pans on five chrome-plated racks set into nine positions. Dual Flow gas circulation, a removable dual tube burner and a 200 F to 500 F thermostat suit a bakery or line kitchen that has outgrown a single deck but cannot give up the space for a second oven.

• Dual Flow gas circulation blends direct with indirect heat, so the pan nearest the burner bakes at close to the rate of the one above it.
• Double porcelainized interior surfaces close off the seams where hidden rust usually starts, which matters in a cavity that heats and cools through every service.
• Nine rack positions bring the five chrome-plated racks as close as 1-5/8" apart for low-profile product.
• Electronic spark ignition does away with a standing pilot, and the dual tube burner lifts out when it needs cleaning.
• The tilt-down front control panel swings forward, so a technician reaches the controls without lifting the section off the oven beneath it.
• Blodgett covers three years on oven parts and two years on labor, with five years on the door.

Specifications

• Model: DFG-50
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, additional section
• Fuel: Natural gas or liquid propane (select option)
• Interior cavity: 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D
• Capacity: Accepts five 13" x 18" standard half-size pans
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Controls: Standard: manual with solid state thermostat (SSI-M); Optional: Solid State digital with LED display, cook and hold, PulsePlus(R)
• Doors: Solid stainless steel, or dual pane thermal glass window encased in stainless steel door frame; right-hand hinge
• Gas connection: 3/4" NPT
• Weight: 335 lbs
• Warranty: Three year oven parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-50 Single Half-Size Gas Convection Oven?
The DFG-50 Single Half-Size Gas Convection Oven is gas convection oven, Accepts five 13" x 18" standard half-size pans. It operates from 200 F (93 C) to 500 F (260 C).

How big is the cavity on the DFG-50 Single Half-Size Gas Convection Oven?
The baking compartment measures 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D.

What are the DFG-50 Single Half-Size Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
