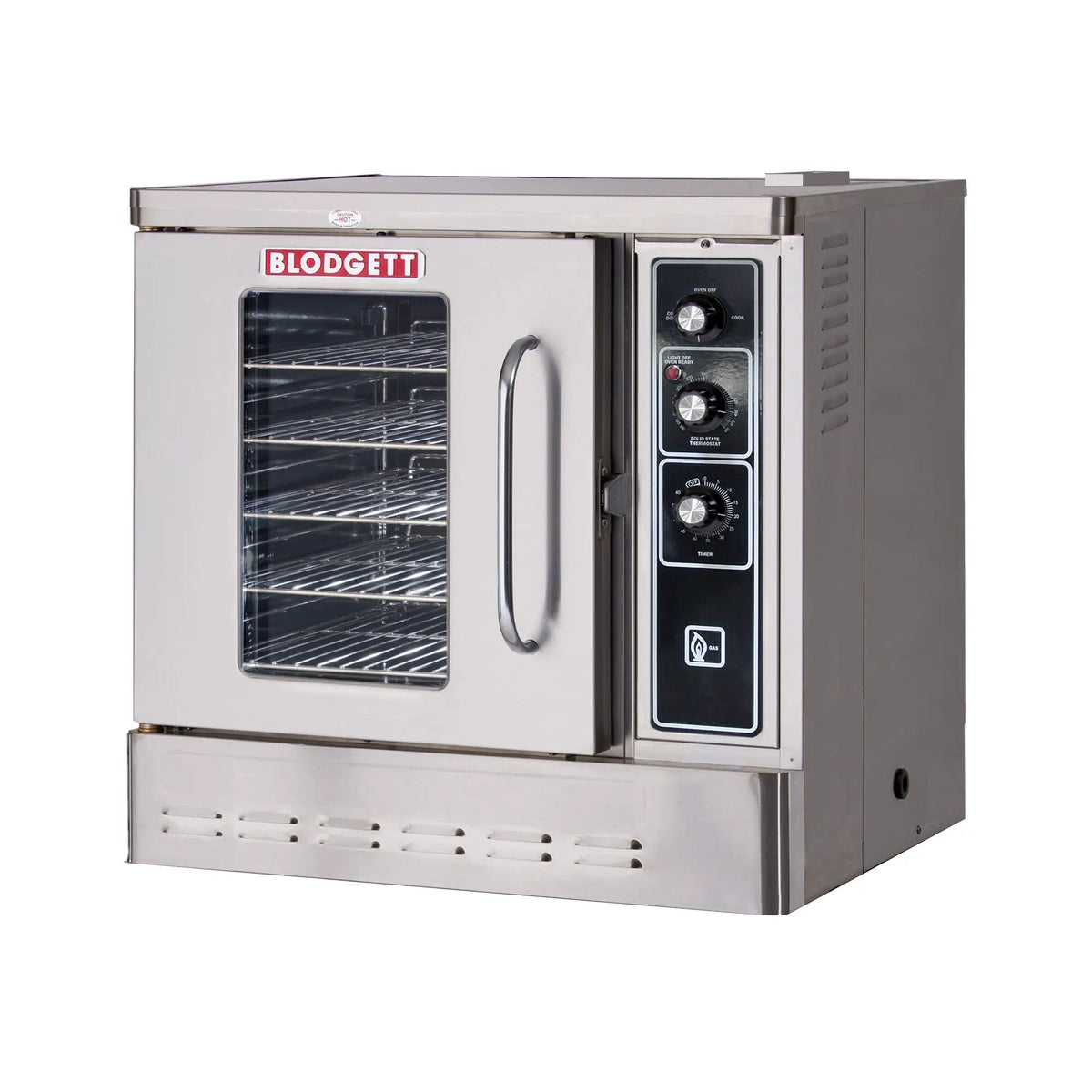

Blodgett DFG-50 Single Half-Size Gas Convection Oven - 27,500 BTU, Base Section

Half-size ovens earn their place where floor space is short and output still matters. This DFG-50 is the base section of a stack: the bottom oven, built to carry a second section above it. Its porcelainized compartment takes five 13" x 18" half-size pans across nine rack positions, heat comes off a removable dual tube burner under Dual Flow circulation, and the thermostat runs 200 F to 500 F. The frame is welded extruded angle iron, which is what keeps a loaded stack square.

• As the bottom of a stack, the fully welded angle iron frame carries the section above while holding the door frame square.
• Dual Flow gas heating combines direct with indirect paths, evening out the bake between the deck floor and the top rack.
• Five chrome-plated racks and nine positions allow 1-5/8" spacing when the load is sheet pans rather than roasts.
• A 1/3 H.P. single-speed motor at 1710 RPM drives the fan from a 115 VAC, 5 amp supply, so the electrical hookup stays simple.
• Three years of parts coverage and two years of labor are standard, with five years on the oven door.

Specifications

• Model: DFG-50
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, base section
• Fuel: Natural gas or liquid propane (select option)
• Interior cavity: 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D
• Capacity: Accepts five 13" x 18" standard half-size pans
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Controls: Standard: manual with solid state thermostat (SSI-M); Optional: Solid State digital with LED display, cook and hold, PulsePlus(R)
• Doors: Solid stainless steel, or dual pane thermal glass window encased in stainless steel door frame; right-hand hinge
• Gas connection: 3/4" NPT
• Weight: 335 lbs
• Warranty: Three year oven parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-50 Single Half-Size Gas Convection Oven?
The DFG-50 Single Half-Size Gas Convection Oven is gas convection oven, Accepts five 13" x 18" standard half-size pans. It operates from 200 F (93 C) to 500 F (260 C).

How big is the cavity on the DFG-50 Single Half-Size Gas Convection Oven?
The baking compartment measures 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D.

What are the DFG-50 Single Half-Size Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
