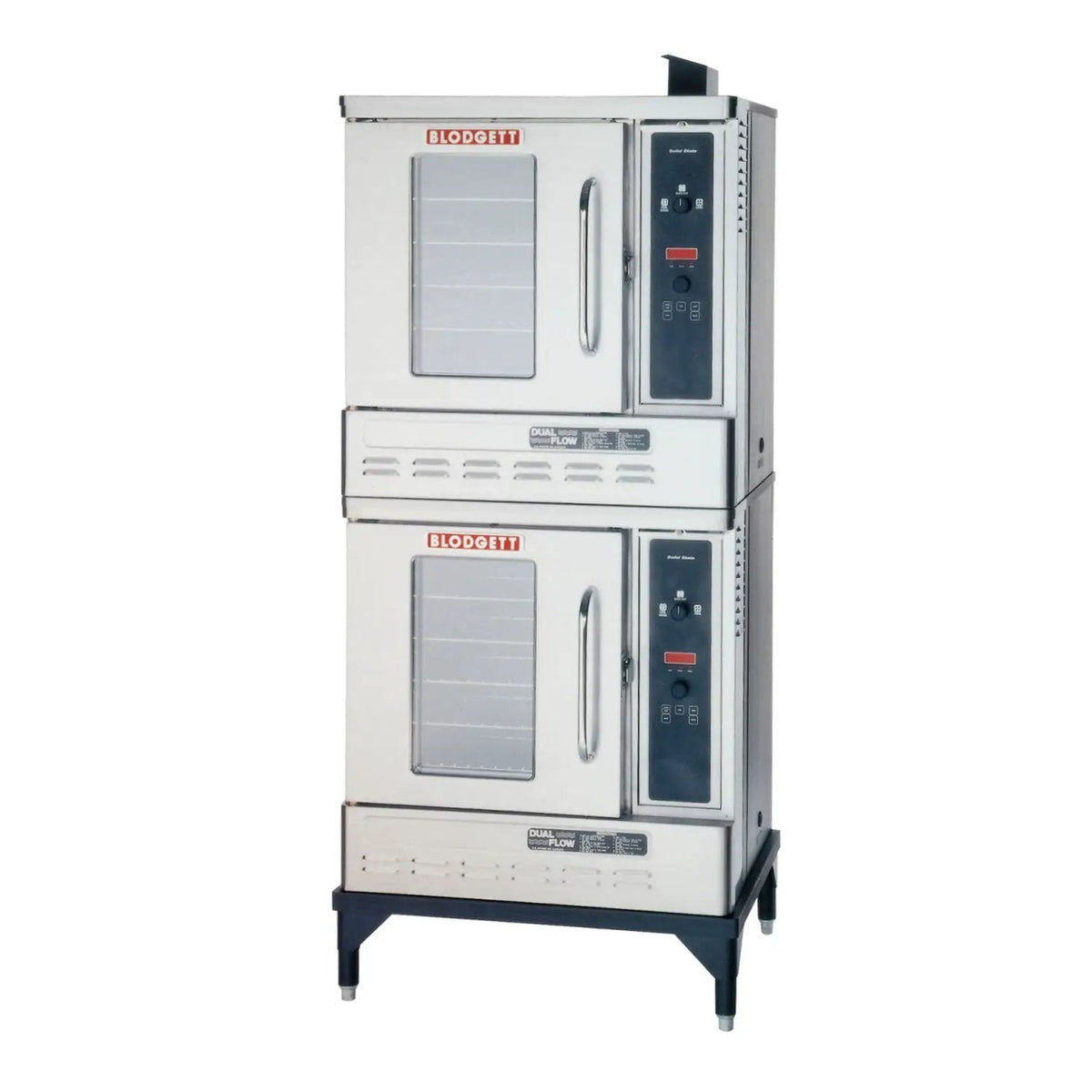

Blodgett DFG-50 Double Half-Size Gas Convection Oven - 27,500 BTU, Double Stack

Where floor space runs out before capacity does, a double half-size answers: two natural gas or liquid propane DFG-50 sections stacked, each under its own controls and its own removable dual tube burner. Each deck loads five half-size sheet pans, or steam table pans at 12 by 20 by 2-1/2 inches on 3.25 inch spacing, into a 20 inch high cavity with nine rack positions. Together the sections weigh 760 pounds, and either one holds between 200 F and 500 F.

• Two natural gas or liquid propane sections controlled separately, so one deck can run cooler than the other.
• Natural gas at 7.0 to 10.5 inches W.C. inlet and 3.5 inches at the manifold, through a 3/4 inch NPT connection.
• Nine rack positions per section, each with five removable chrome plated racks.
• Porcelainized on both interior faces in both cavities, which keeps rust from starting behind the surface.
• Right-hand hinged doors with dual pane thermal glass in stainless frames, over a welded angle iron frame.

Specifications

• Model: DFG-50
• Series: Premium / Dual Flow (DFG)
• Configuration: Double section
• Fuel: Natural gas or liquid propane (select option)
• Interior cavity: 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D
• Capacity: Accepts five 13" x 18" standard half-size pans
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Controls: Standard: manual with solid state thermostat (SSI-M); Optional: Solid State digital with LED display, cook and hold, PulsePlus(R)
• Doors: Solid stainless steel, or dual pane thermal glass window encased in stainless steel door frame; right-hand hinge
• Gas connection: 3/4" NPT
• Weight: 760 lbs
• Warranty: Three year oven parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-50 Double Half-Size Gas Convection Oven?
The DFG-50 Double Half-Size Gas Convection Oven is gas convection oven, Accepts five 13" x 18" standard half-size pans. It operates from 200 F (93 C) to 500 F (260 C).

How big is the cavity on the DFG-50 Double Half-Size Gas Convection Oven?
The baking compartment measures 15-3/8" (390mm) W x 20" (508mm) H x 21" (533mm) D.

What are the DFG-50 Double Half-Size Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
