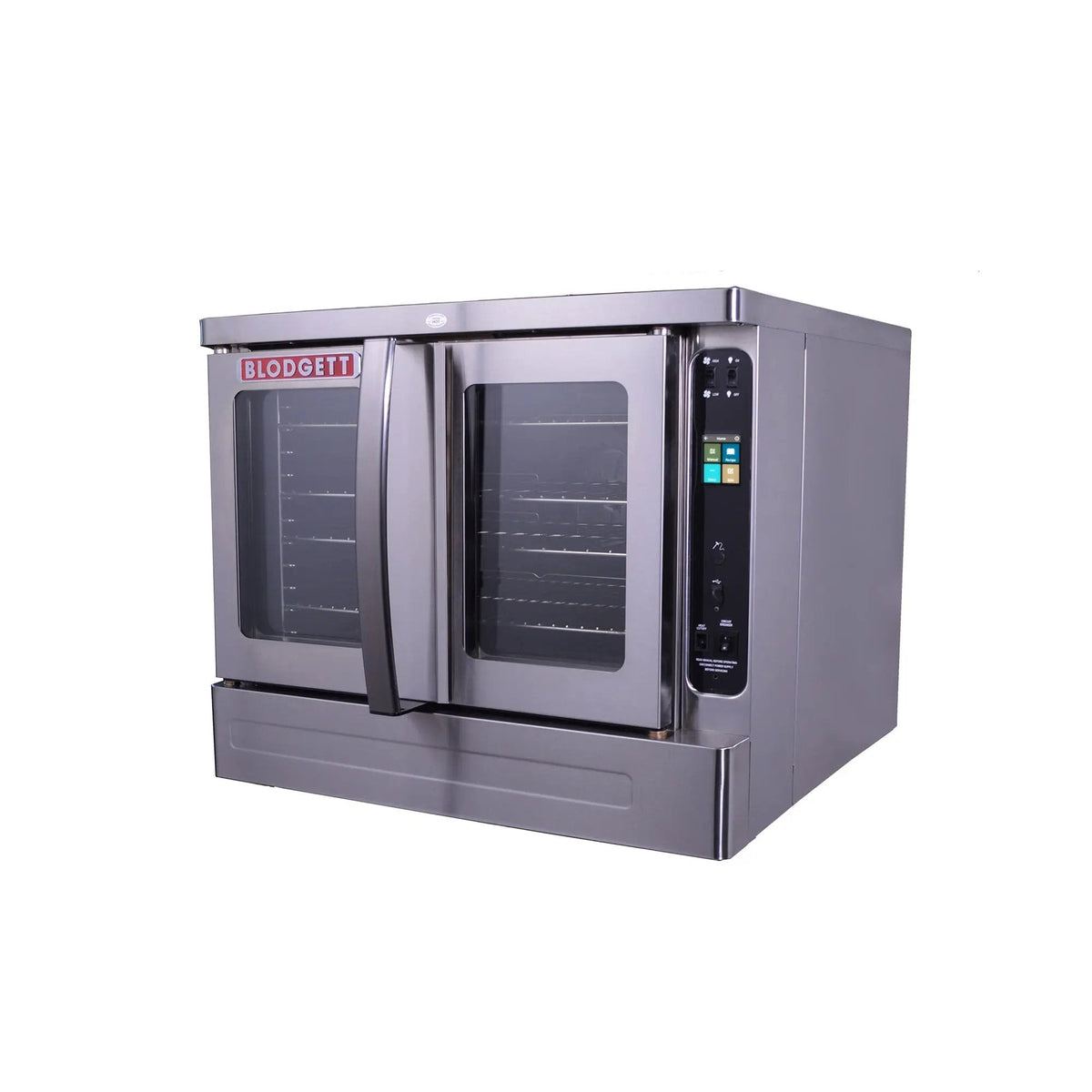

Blodgett DFG-200 Single Full-Size Bakery Depth Gas Convection Oven - 60,000 BTU, Stacking Section

Ordered as an additional section, this DFG-200 is the upper half of a stack rather than a standalone oven: it sets onto a section already in place and adds nothing to the footprint. The compartment is bakery depth, 29 inches wide and 28-1/4 deep, taking five 18 by 26 inch sheet pans, and it fires on natural gas or liquid propane at 60,000 BTU/hr of its own. A stacked pair sits on 6 inch legs rather than the 25 inch legs of a single unit.

• Stacks onto an installed DFG-200 section, which doubles capacity without taking a second floor position.
• Bakery depth cavity of 29 inches wide, 20 high and 28-1/4 deep holds five full-size 18 by 26 inch pans.
• Dual Flow Gas system puts direct and indirect heat into the same cavity, fed by dual tube burners that lift out for cleaning.
• Eleven rack positions with five chrome plated racks supplied, spaced no closer than 1-5/8 inches.
• Oleophobic 14 gauge compartment liner sheds grease, so the cavity wipes out instead of needing to be scoured.

Specifications

• Model: DFG-200
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, additional section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Exterior dimensions (W x D x H): 38.25"W x 57"H x 36.88"D (972mm x 1450mm x 937mm)
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 28-1/4" (718mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans per section
• Racks: Five chrome-plated racks, eleven rack positions
• Rack spacing: minimum of 1-5/8" (41 mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 617 lbs (280 kg)
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-200 Single Full-Size Bakery Depth Gas Convection Oven?
The DFG-200 Single Full-Size Bakery Depth Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans per section. It operates from 200 F (93 C) to 500 F (260 C).

What are the dimensions of the DFG-200 Single Full-Size Bakery Depth Gas Convection Oven?
Blodgett gives the exterior as 38.25"W x 57"H x 36.88"D (972mm x 1450mm x 937mm).

What are the DFG-200 Single Full-Size Bakery Depth Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
