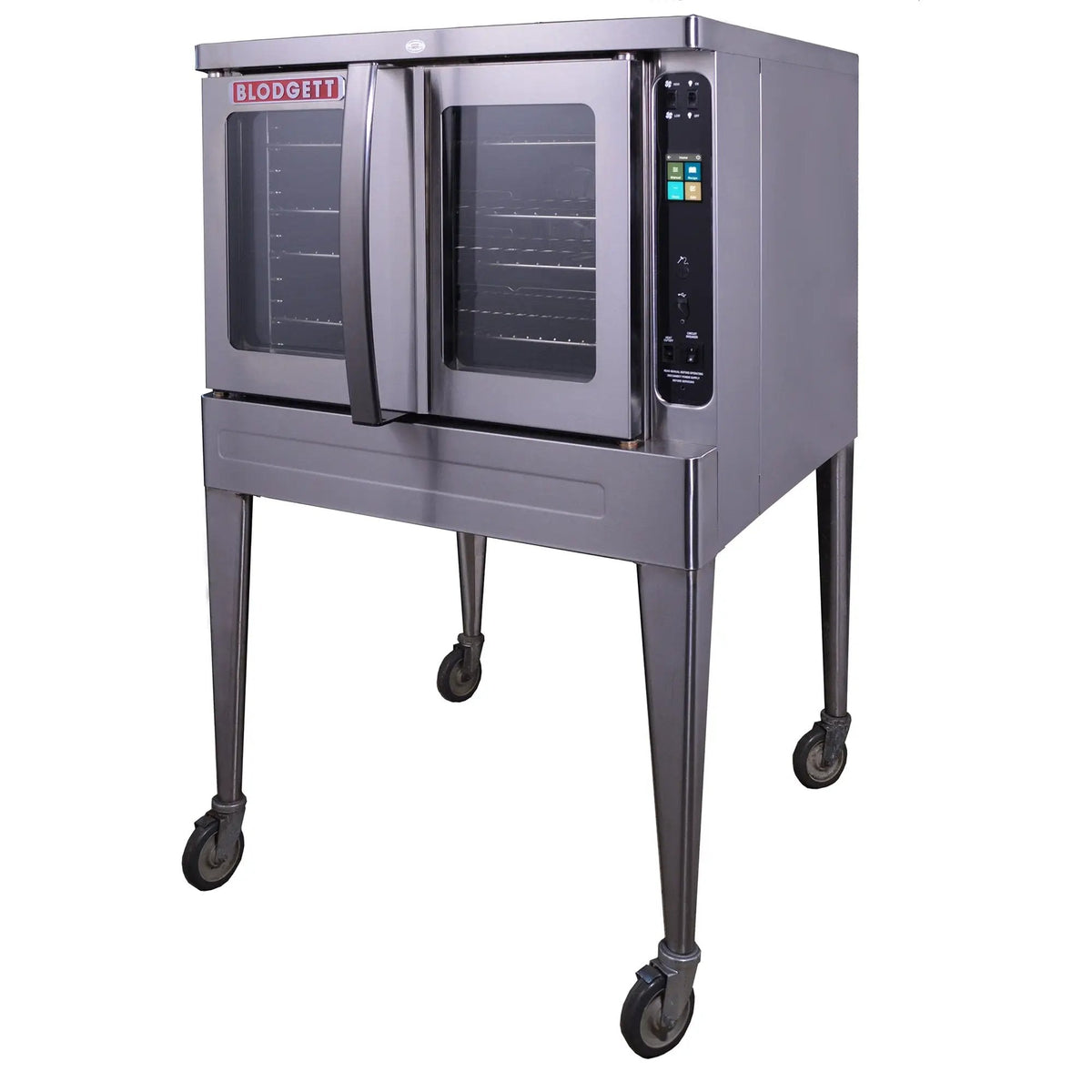

Blodgett DFG-200 Single Full-Size Bakery Depth Gas Convection Oven - 60,000 BTU, Single Section

A single-section DFG-200 stands 57 inches tall on 25 inch adjustable legs and puts one bakery depth cavity at working height. Inside, 29 inches of width and 28-1/4 of depth hold five 18 by 26 inch pans across eleven rack positions, with 60,000 BTU/hr of natural gas or liquid propane and a two speed fan behind them. At 617 pounds on a full angle iron frame, it suits a kitchen that runs the same oven hard every service.

• Free-standing single deck on 25 inch adjustable stainless legs, needing 6 inches of clearance from surrounding construction.
• Five 18 by 26 inch pans per load in a 29 by 28-1/4 inch bakery depth cavity.
• Eleven rack positions and five chrome plated racks, with 1-5/8 inches between them at the tightest setting.
• Oleophobic 14 gauge liner and mineral fiber insulation wrapping the top, back, sides and bottom.
• Front control panel is modular and slides out, which keeps a service call short when a technician does come.

Specifications

• Model: DFG-200
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Exterior dimensions (W x D x H): 38.25"W x 57"H x 36.88"D (972mm x 1450mm x 937mm)
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 28-1/4" (718mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans per section
• Racks: Five chrome-plated racks, eleven rack positions
• Rack spacing: minimum of 1-5/8" (41 mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 617 lbs (280 kg)
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-200 Single Full-Size Bakery Depth Gas Convection Oven?
The DFG-200 Single Full-Size Bakery Depth Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans per section. It operates from 200 F (93 C) to 500 F (260 C).

What are the dimensions of the DFG-200 Single Full-Size Bakery Depth Gas Convection Oven?
Blodgett gives the exterior as 38.25"W x 57"H x 36.88"D (972mm x 1450mm x 937mm).

What are the DFG-200 Single Full-Size Bakery Depth Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
