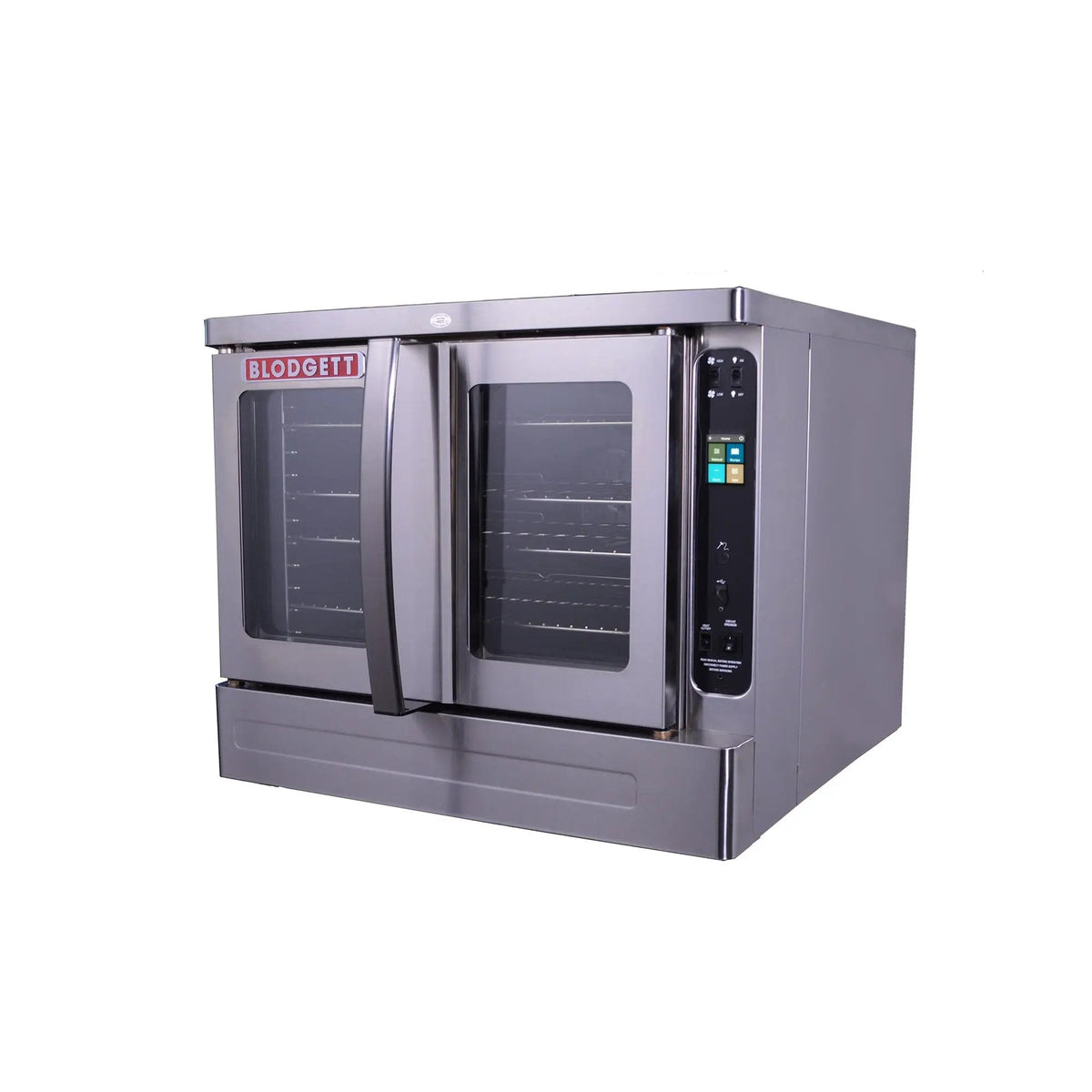

Blodgett DFG-200-ES Single Full-Size Bakery Depth Gas Convection Oven - 50,000 BTU, Base Section

Order the base section when the stack is going to grow. This natural gas or liquid propane DFG-200-ES sits on the floor and takes a second ENERGY STAR section later; until then it bakes as a full-size unit, five 18 by 26 inch pans at a time, at 50,000 BTU/hr. Eleven rack positions, a thermostat from 200 F to 500 F, two inches of insulation and a zero clearance rating cover most of what a busy line asks of a single deck.

• Takes a matching section on top later, which turns one floor position into two decks.
• ENERGY STAR qualified at 50,000 BTU/hr on natural gas or liquid propane, 7.0 to 10.5 inches W.C. at the inlet.
• Bakery depth cavity for five 18 by 26 inch pans, with eleven rack positions to work across.
• Oleophobic liner in 14 gauge steel that wipes clean rather than being scraped out.
• Covered three years on parts and two on labor, with a five year limited warranty on the oven door.

Specifications

• Model: DFG-200-ES
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, base section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Heat input: 50,000 BTU/hr (14.6 Kw) per oven section
• Capacity: Five 18" x 26" pans per section
• Racks: Five chrome-plated racks, eleven rack positions
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 617 lbs
• Certifications: ENERGY STAR qualified
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-200-ES Single Full-Size Bakery Depth Gas Convection Oven?
The DFG-200-ES Single Full-Size Bakery Depth Gas Convection Oven is gas convection oven, Five 18" x 26" pans per section, rated at 50,000 BTU/hr. It operates from 200 F (93 C) to 500 F (260 C).

What are the DFG-200-ES Single Full-Size Bakery Depth Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): 50,000 BTU/hr (14.6 Kw) per oven section, gas connection 3/4" NPT.

What warranty comes with the DFG-200-ES Single Full-Size Bakery Depth Gas Convection Oven?
Blodgett covers it with three year parts and two year labor warranty; Five year limited oven door warranty.
