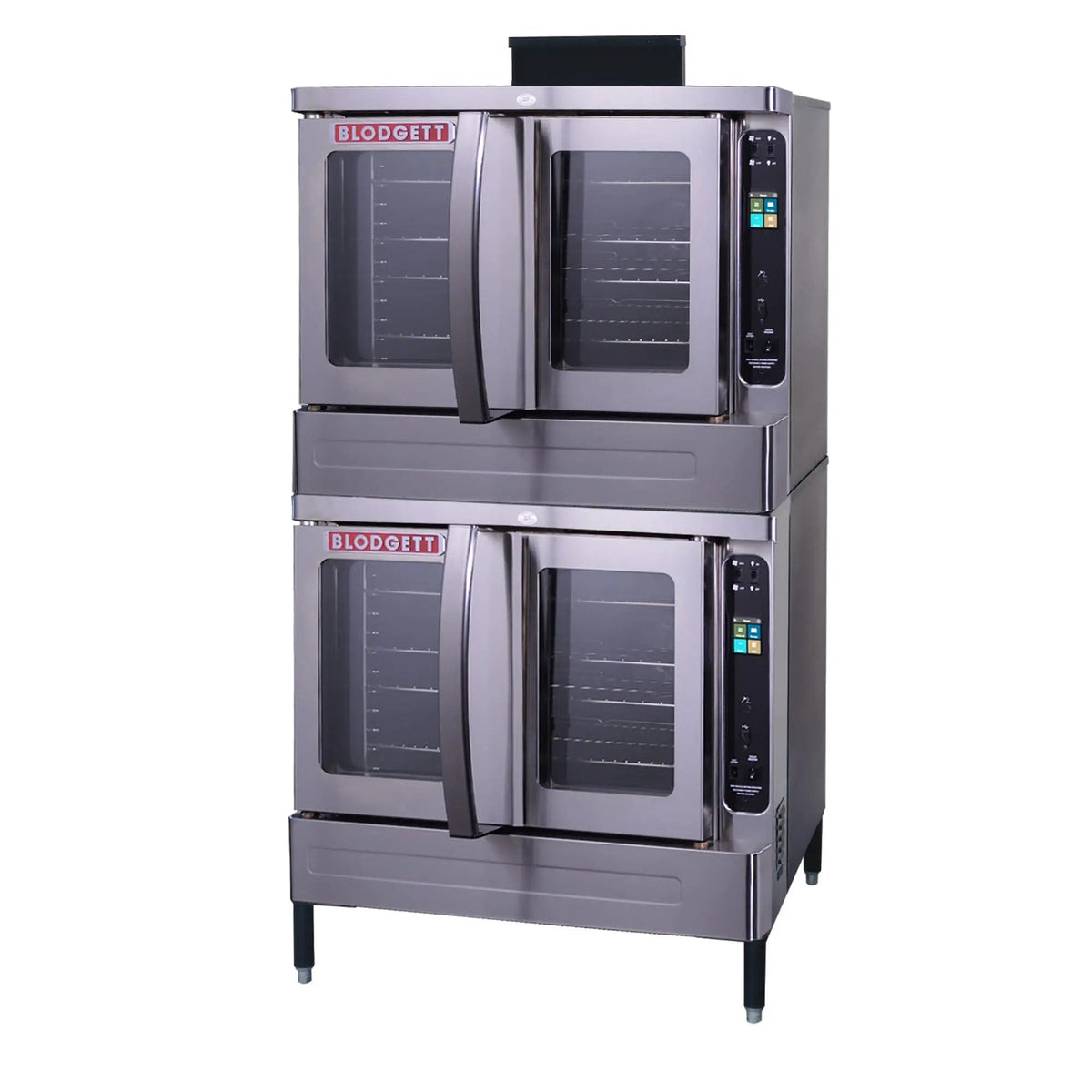

Blodgett DFG-200-ES Double Full-Size Bakery Depth Gas Convection Oven - 100,000 BTU, Double Stack

Ten sheet pans in the heat at once, over 38-1/4 by 36-7/8 inches of floor: that is what the double DFG-200-ES buys. Two ENERGY STAR sections stack to 70.63 inches, each with separate controls and its own 50,000 BTU/hr burner, so one deck can run at a different temperature from the other. Each cavity takes five 18 by 26 inch pans across eleven rack positions, and the finished stack weighs 1329 pounds.

• Two independently controlled ENERGY STAR sections, each fed 50,000 BTU/hr of natural gas at 7.0 to 10.5 inches W.C.
• Ten 18 by 26 inch pans across the two cavities, five per section on eleven rack positions.
• Stack height of 70.63 inches on 6 inch legs, with no clearance required to the construction around it.
• Two inches of insulation, a solid inch of block plus an inch of mineral fiber, keeps the outside of a tall stack manageable.
• Interior halogen lighting in both cavities and a cooling fan for the control area.

Specifications

• Model: DFG-200-ES
• Series: Premium / Dual Flow (DFG)
• Configuration: Double section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Heat input: 50,000 BTU/hr (14.6 Kw) per oven section
• Capacity: Five 18" x 26" pans per section
• Racks: Five chrome-plated racks, eleven rack positions
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 1329 lbs
• Certifications: ENERGY STAR qualified
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-200-ES Double Full-Size Bakery Depth Gas Convection Oven?
The DFG-200-ES Double Full-Size Bakery Depth Gas Convection Oven is gas convection oven, Five 18" x 26" pans per section, rated at 50,000 BTU/hr. It operates from 200 F (93 C) to 500 F (260 C).

What are the DFG-200-ES Double Full-Size Bakery Depth Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): 50,000 BTU/hr (14.6 Kw) per oven section, gas connection 3/4" NPT.

What warranty comes with the DFG-200-ES Double Full-Size Bakery Depth Gas Convection Oven?
Blodgett covers it with three year parts and two year labor warranty; Five year limited oven door warranty.
