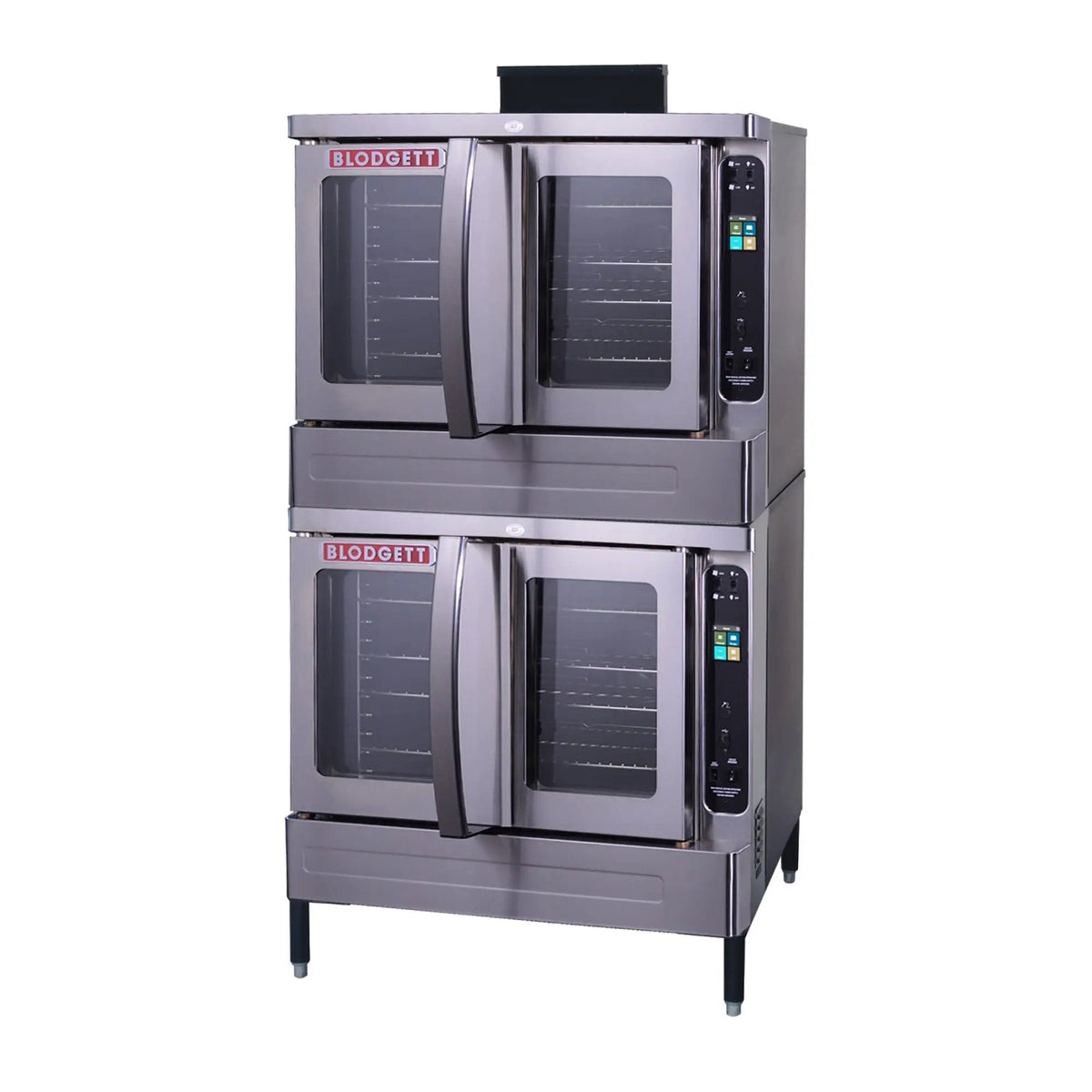

Blodgett DFG-200 Double Full-Size Bakery Depth Gas Convection Oven - 60,000 BTU, Double Stack

Two bakery-depth sections on natural gas or liquid propane, 60,000 BTU/hr apiece, stacked onto one footprint. Each cavity of 29 by 20 by 28-1/4 in. carries five 18 x 26 in. pans on eleven rack positions with 1-5/8 in. minimum spacing. Gas arrives at 7.0 to 10.5 in. W.C. through a 3/4 in. NPT connection, ignition is electronic spark, and a manual cut-off sits on the front control panel. The stack weighs 1329 lbs. and wants 6 in. of clearance all round.

• 60,000 BTU/hr per section on natural gas or liquid propane at 7.0 to 10.5 in. W.C., through a 3/4 in. NPT connection.
• Bakery-depth cavities 28-1/4 in. deep in both decks, each taking five 18 x 26 in. pans.
• Triple-mounted pressure lock doors with a turnbuckle, and simultaneous door operation off a curved aluminum handle.
• Air mixers with adjustable shutters and a manual gas cut-off on the front control panel.
• 6 in. clearance from combustible and non-combustible construction, and 1329 lbs. on the floor once stacked.
• Backed for three years on parts, two on labor, and five years on the oven door.

Specifications

• Model: DFG-200
• Series: Premium / Dual Flow (DFG)
• Configuration: Double section, bakery depth
• Fuel: Natural gas or liquid propane (select option)
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 28-1/4" (718mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans per section
• Racks: Five chrome-plated racks, eleven rack positions
• Rack spacing: minimum of 1-5/8" (41 mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 1329 lbs (541 kg)
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-200 Double Full-Size Bakery Depth Gas Convection Oven?
The DFG-200 Double Full-Size Bakery Depth Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans per section. It operates from 200 F (93 C) to 500 F (260 C).

How big is the cavity on the DFG-200 Double Full-Size Bakery Depth Gas Convection Oven?
The baking compartment measures 29" (737mm) W x 20" (508mm) H x 28-1/4" (718mm) D.

What are the DFG-200 Double Full-Size Bakery Depth Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): gas connection 3/4" NPT.
