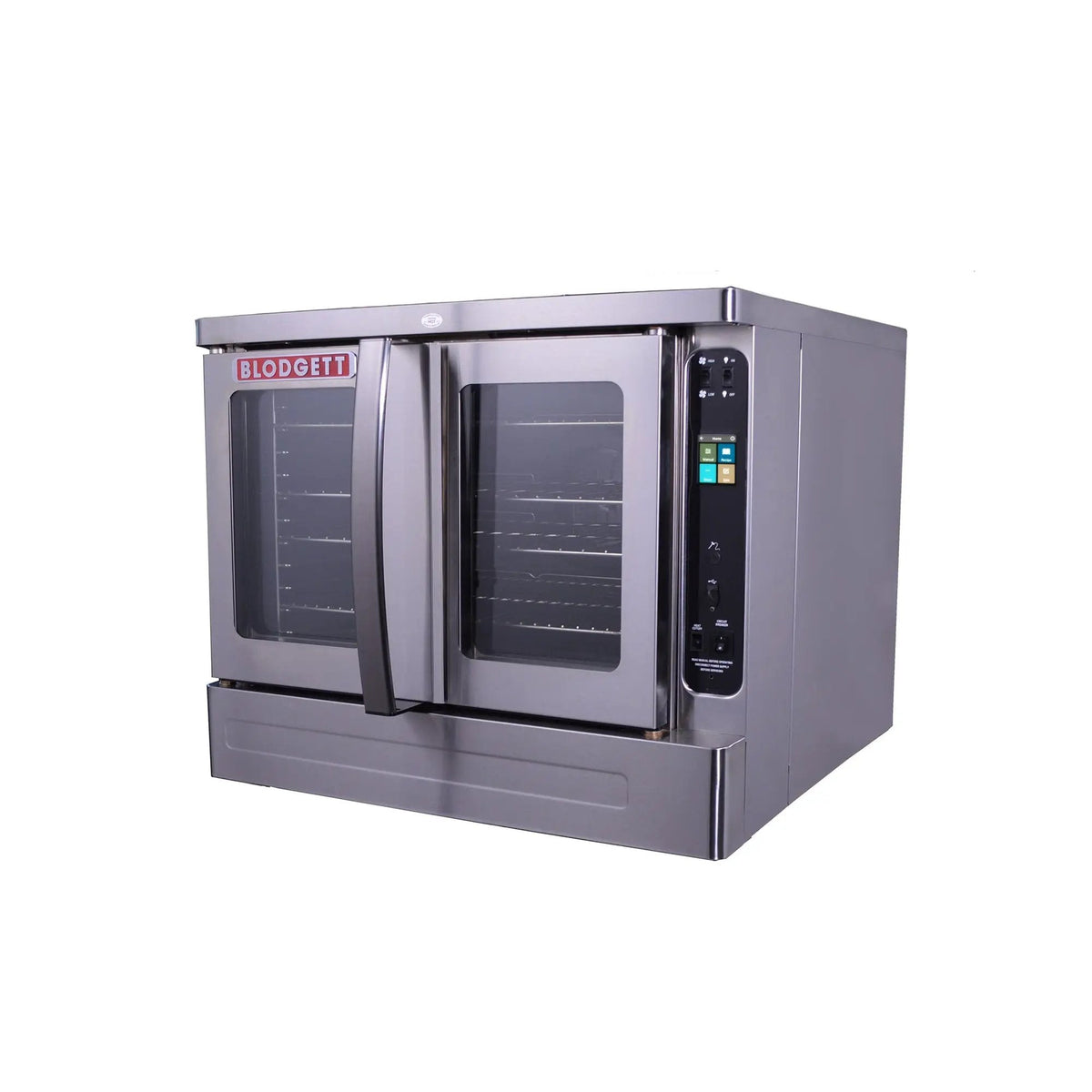

Blodgett DFG-100 Single Full-Size Gas Convection Oven - 55,000 BTU, Liquid Propane, Stacking Section, 6" Legs

Propane-fired and standard depth, this single DFG-100 section puts 55,000 BTU/hr behind a cavity of 29 by 20 by 24-1/4 in. that holds five full-size 18 x 26 in. pans or ten 12 x 20 x 2-1/2 in. steam table pans. It occupies 38-1/4 by 36-7/8 in. of floor, stands 57.06 in. with a draft diverter on 25 in. adjustable legs, and weighs 600 lbs. A straightforward roasting and baking oven for a kitchen with a single oven slot.

• Dual Flow gas heating runs direct and indirect heat together, the arrangement the Premium series is named for.
• The 24-1/4 in. deep cavity takes five 18 x 26 in. sheet pans or ten 12 x 20 x 2-1/2 in. steam table pans, so one oven covers bakery and steam table work.
• Modular front control panel slides forward for service, keeping routine work out of the oven's interior.
• Solid mineral fiber insulation holds heat in the cavity rather than in the kitchen around it.
• Needs 2 in. at the sides and nothing at the back, and passes uncrated through a 32-1/16 in. opening.
• Control choices run from solid state digital with LED display, Cook and Hold and Pulse Plus, to the Artisan touchscreen and its meat probe.

Specifications

• Model: DFG-100
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section
• Fuel: Liquid Propane
• Heat input: 55,000 BTU/hr (16.2 Kw) per oven section
• Exterior dimensions (W x D x H): 38-1/4"W x 36-7/8"D floor space; height 57.06" (with draft diverter)
• Interior cavity: 29" (737mm) W x 20" (508mm) H x 24-1/4" (616mm) D
• Capacity: Accepts five 18" x 26" standard full-size baking pans
• Racks: Five chrome-plated removable racks with eleven rack positions
• Rack spacing: minimum of 1-5/8" (41mm) spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Dual pane thermal glass windows encased in stainless steel door frames, or solid stainless steel
• Gas connection: 3/4" NPT
• Weight: 600 lbs.
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-100 Single Full-Size Gas Convection Oven?
The DFG-100 Single Full-Size Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size baking pans, rated at 55,000 BTU/hr. It operates from 200 F (93 C) to 500 F (260 C).

What are the dimensions of the DFG-100 Single Full-Size Gas Convection Oven?
Blodgett gives the exterior as 38-1/4"W x 36-7/8"D floor space; height 57.06" (with draft diverter).

What are the DFG-100 Single Full-Size Gas Convection Oven utility requirements?
It runs on liquid propane: 55,000 BTU/hr (16.2 Kw) per oven section, gas connection 3/4" NPT.
