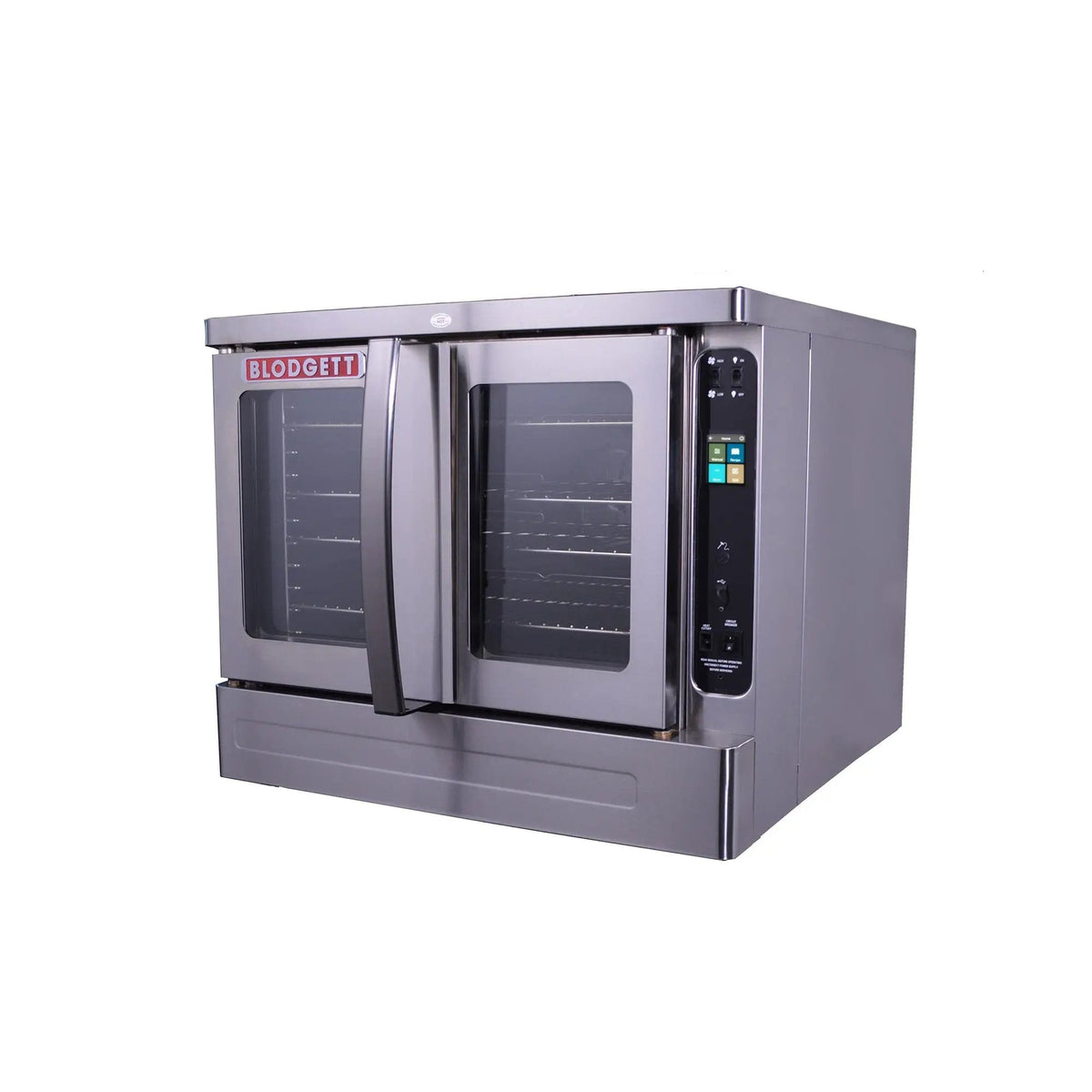

Blodgett DFG-100-ES Single Full-Size Gas Convection Oven - 45,000 BTU, Natural Gas, Base Section

Specified as the base section, this natural gas oven forms the bottom of a two-deck DFG-100-ES stack and carries whatever section is added above it. On its own it is a full-size, standard-depth cavity of 29 by 20 by 24-1/4 in., taking five 18 x 26 in. pans at 3.25 in. spacing across eleven rack positions, rated 45,000 BTU/hr and ENERGY STAR qualified. Gas enters at 7.0 to 10.5 in. W.C. through a 3/4 in. NPT connection.

• The lower oven of a stack, built to take an additional section on top later.
• ENERGY STAR qualified at 45,000 BTU/hr per section.
• Dual Flow gas heating with a two-speed fan and electronic spark ignition, no standing pilot to relight.
• Five chrome-plated racks over eleven positions, 1-5/8 in. minimum spacing, 3.25 in. between full-size pans.
• Oleophobic 14 gauge baking liner, insulated with mineral fiber on every face of the cavity.
• Backed for three years on parts, two on labor, and five years on the oven door.

Specifications

• Model: DFG-100-ES
• Series: Premium / Dual Flow (DFG)
• Configuration: Single section, base section
• Fuel: Natural Gas
• Heat input: 45,000 BTU/hr (13.2 Kw) per oven section
• Exterior dimensions (W x D x H): 38-1/4"W x 36-7/8"D floor space
• Interior cavity: 29"W x 20"H x 24-1/4"D per section
• Capacity: Accepts five 18" x 26" standard full-size pans
• Racks: Five chrome-plated removable racks with eleven positions
• Rack spacing: minimum 1-5/8" spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Solid stainless steel or dual pane thermal glass windows
• Gas connection: 3/4" NPT
• Weight: 600 lbs.
• Certifications: ENERGY STAR qualified
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-100-ES Single Full-Size Gas Convection Oven?
The DFG-100-ES Single Full-Size Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size pans, rated at 45,000 BTU/hr. It operates from 200 F (93 C) to 500 F (260 C).

What are the dimensions of the DFG-100-ES Single Full-Size Gas Convection Oven?
Blodgett gives the exterior as 38-1/4"W x 36-7/8"D floor space.

What are the DFG-100-ES Single Full-Size Gas Convection Oven utility requirements?
It runs on natural gas: 45,000 BTU/hr (13.2 Kw) per oven section, gas connection 3/4" NPT.
