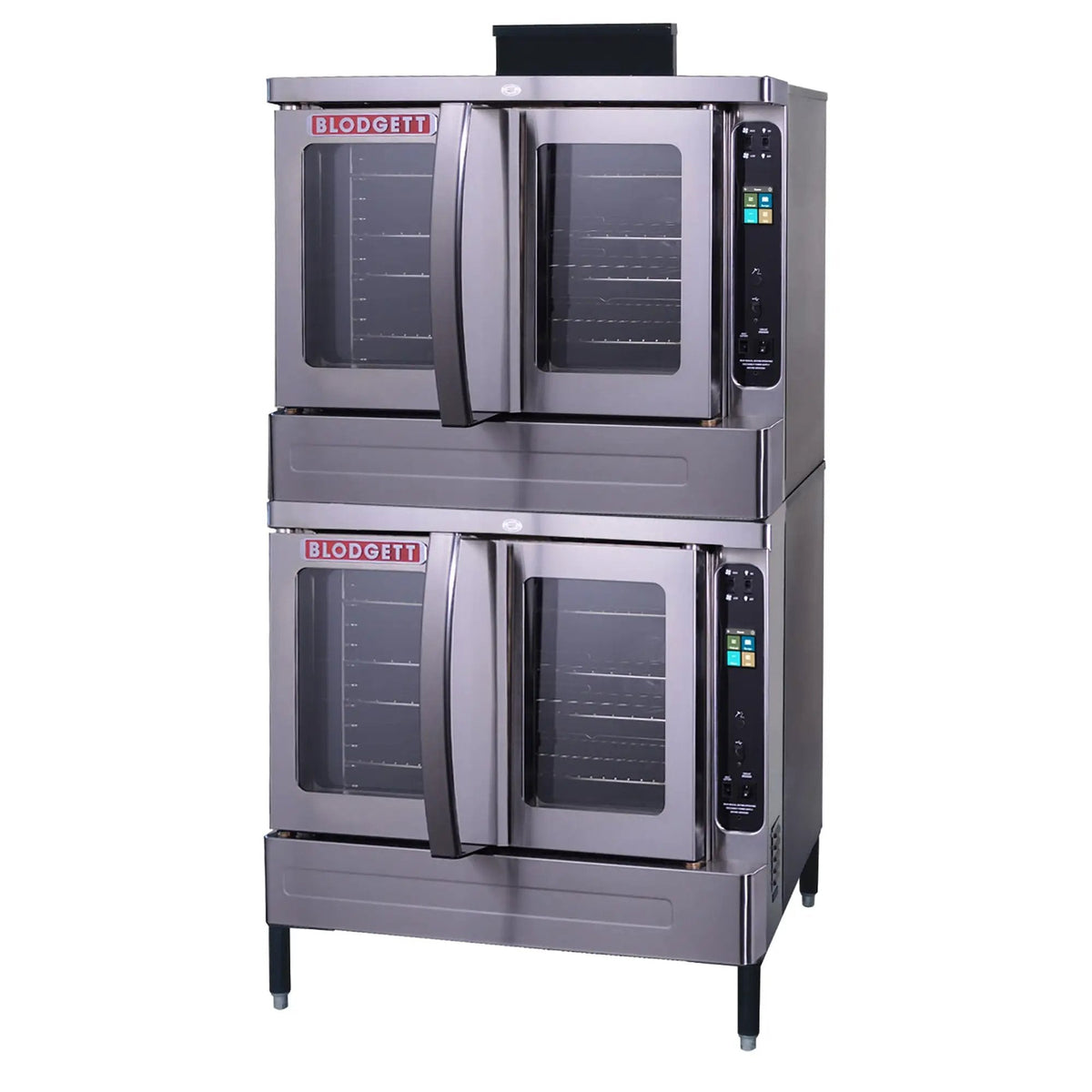

Blodgett DFG-100-ES Double Full-Size Gas Convection Oven - 45,000 BTU, Double Stack

Kitchens running two decks on natural gas or liquid propane get an ENERGY STAR qualified pair here, each section rated 45,000 BTU/hr with a cavity of 29 by 20 by 24-1/4 in. Five 18 x 26 in. pans load per section at 3.25 in. spacing, on eleven rack positions with 1-5/8 in. minimum steps between them. Gas comes in at 7.0 to 10.5 in. W.C. through a 3/4 in. NPT connection, and the finished stack weighs 1295 lbs. on 6 in. adjustable legs.

• Both sections are ENERGY STAR qualified at 45,000 BTU/hr each.
• Zero clearance to surrounding construction, so a double can be built into a line without a gap.
• Dual Flow gas heating with direct and indirect paths, driven by a two-speed fan in each section.
• Triple-mounted pressure lock doors in stainless frames, glazed with dual pane thermal glass or supplied solid.
• Five racks and eleven rack positions per deck, at 1-5/8 in. minimum spacing.
• Backed for three years on parts, two on labor, and five years on the oven door.

Specifications

• Model: DFG-100-ES
• Series: Premium / Dual Flow (DFG)
• Configuration: Double section
• Fuel: Natural gas or liquid propane (select option)
• Heat input: 45,000 BTU/hr (13.2 Kw) per oven section
• Interior cavity: 29"W x 20"H x 24-1/4"D per section
• Capacity: Accepts five 18" x 26" standard full-size pans
• Racks: Five chrome-plated removable racks with eleven positions
• Rack spacing: minimum 1-5/8" spacing
• Temperature range: 200 F (93 C) to 500 F (260 C)
• Doors: Solid stainless steel or dual pane thermal glass windows
• Gas connection: 3/4" NPT
• Weight: 1295 lbs.
• Certifications: ENERGY STAR qualified
• Warranty: Three year parts and two year labor warranty; Five year limited oven door warranty

Questions & answers

What is the Blodgett DFG-100-ES Double Full-Size Gas Convection Oven?
The DFG-100-ES Double Full-Size Gas Convection Oven is gas convection oven, Accepts five 18" x 26" standard full-size pans, rated at 45,000 BTU/hr. It operates from 200 F (93 C) to 500 F (260 C).

How big is the cavity on the DFG-100-ES Double Full-Size Gas Convection Oven?
The baking compartment measures 29"W x 20"H x 24-1/4"D per section.

What are the DFG-100-ES Double Full-Size Gas Convection Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): 45,000 BTU/hr (13.2 Kw) per oven section, gas connection 3/4" NPT.
