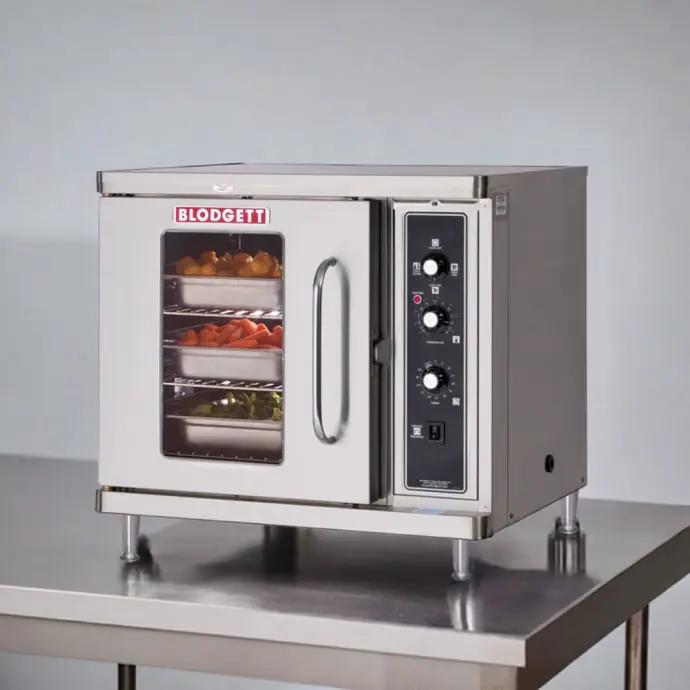

Blodgett CTB Single Half-Size Electric Convection Oven - 5.6 kW, 208V/3ph, Single Section

A half-size countertop convection oven for sites with no floor space to give: 30-1/4" wide, 25-1/8" deep, and able to sit flush against combustible construction at 0" clearance. It draws 5.6 kW, holds five 13" x 18" pans front-to-back across nine rack positions, and works from 200°F to 500°F. Stainless outside, double-sided porcelain inside, behind a dual pane thermal glass window. The oven is ENERGY STAR qualified.

• 30-1/4" W x 25-1/8" D on the counter, with 0" clearance needed to the construction around it.
• 5.6 kW standard or 8.0 kW optional, at 208, 220 or 240 V in single or three phase.
• Five 13" x 18" pans front-to-back, nine rack positions, and no less than 1-5/8" between racks.
• Double-sided porcelainized liner at 14 gauge stops rust working in behind the enamel, inside a fully welded angle-iron frame; the oven weighs 295 lbs.
• Controls run from solid state dials through Pulse Plus cook-and-hold to the SimpleTouch touchscreen with HACCP capability.
• Parts covered for three years, labor for two, and a five-year limited warranty on the door.

Specifications

• Model: CTB
• Configuration: Single section
• Fuel: Electric
• Electrical supply: 208V / 3-phase / 5.6 kW
• Exterior dimensions (W x D x H): 30-1/4" (768mm) W x 25-1/8" (638mm) D
• Racks: Five chrome-plated racks
• Rack spacing: Minimum of 1-5/8" (41mm)
• Temperature range: 200°F (93°C) to 500°F (260°C)
• Controls: Solid state manual with separate dials; solid state digital with cook/hold and Pulse Plus®
• Doors: Dual pane thermal glass or solid stainless steel options; single chrome plated door handle
• Weight: 295 lbs. (134 kg)
• Certifications: ENERGY STAR qualified
• Warranty: Three year oven parts and two year labor warranty. Five year limited oven door warranty.

Questions & answers

What is the Blodgett CTB Single Half-Size Electric Convection Oven?
The CTB Single Half-Size Electric Convection Oven is electric convection oven, supplied at 208V / 3-phase / 5.6 kW. It operates from 200°F (93°C) to 500°F (260°C).

What are the dimensions of the CTB Single Half-Size Electric Convection Oven?
Blodgett gives the exterior as 30-1/4" (768mm) W x 25-1/8" (638mm) D.

What power supply does the CTB Single Half-Size Electric Convection Oven need?
This listing is the 208V / 3-phase / 5.6 kW build.
