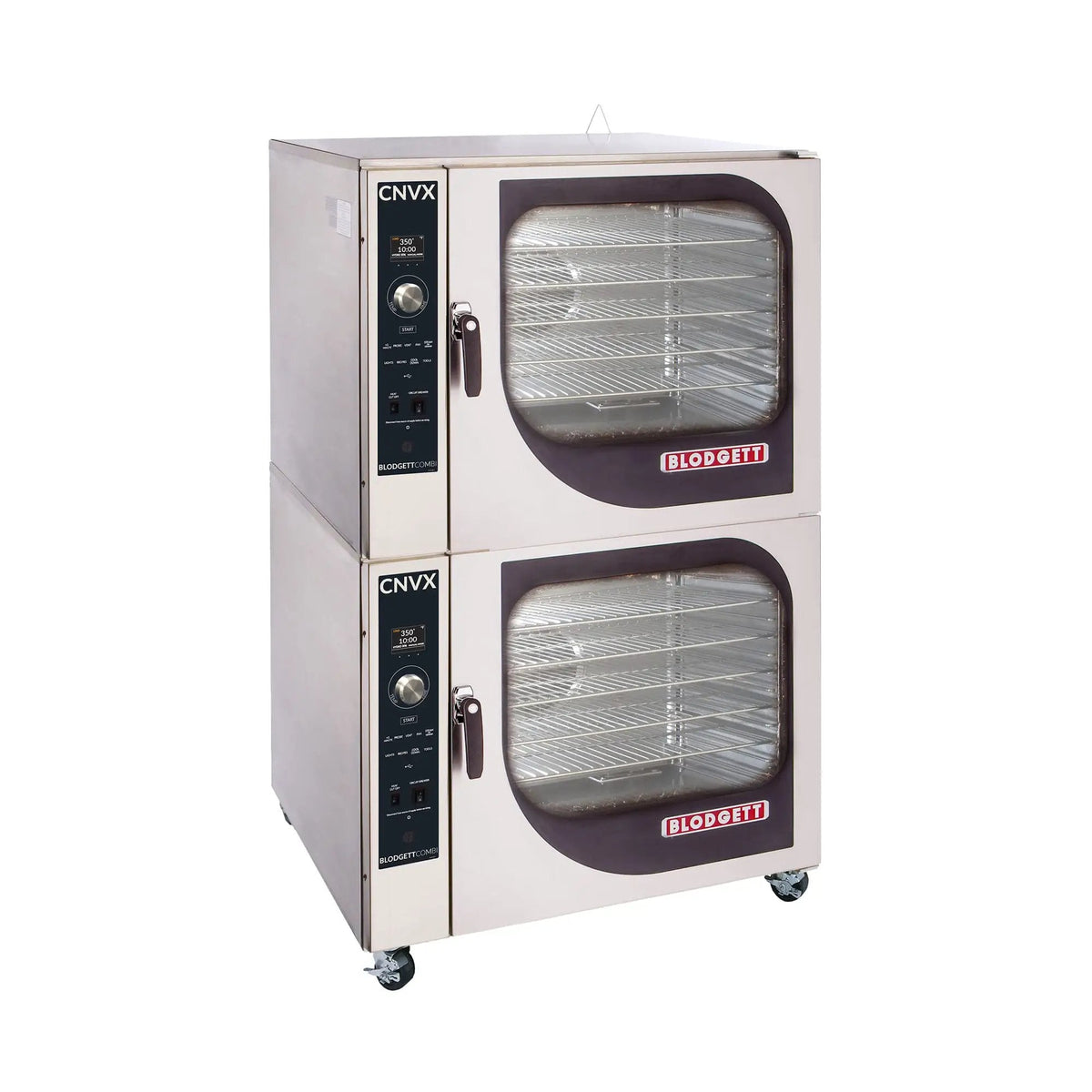

Blodgett CNVX-14G Double Full-Size Gas Convection Oven - 130,000 BTU, Natural Gas, Double Stack

Gas convection in a double stack, built on the same footprint as the BX-14 combi so the two align in a line of equipment. Each section fires at 65,000 BTU/hr through a 3/4" NPT connection, with natural gas supplied at 7.0" W.C. static pressure. Each also holds fourteen hotel pans on seven wire shelves at 3-1/4" spacing, and Hydroburst puts a shot of humidity into the cavity part-way through a cook.

• 65,000 BTU/hr per section, on natural gas at 7.0" W.C. static pressure through a 3/4" NPT connection.
• Hydroburst delivers 100% humidity on demand at any stage of a cook, for oven spring and crust color.
• Standard supply is 115VAC at 12 amps on a Nema 5-20R receptacle, with 208-240VAC at 6 amps available instead.
• Fourteen 12" x 20" x 2-1/2" hotel pans per section, on seven stainless wire shelves at 3-1/4" spacing.
• Core probe cook-and-hold and USB recipe transfer as standard; SmartTouch2 adds a 7-inch screen and 500 recipes.
• Coved-corner 304 stainless liner, hinged pressure panel and a retractable hose reel on the lower section for wash-down.

Specifications

• Model: CNVX-14G
• Configuration: Double section
• Fuel: Natural Gas
• Interior cavity: Fully welded 304 series stainless steel with bright-annealed finish, coved corner liner, fixed drain at bottom center
• Racks: Seven stainless steel wire shelves per section
• Rack spacing: 3-1/4"
• Temperature range: Thermostat control to 500F; range 140°F to 500°F
• Controls: Standard programmable manual control stores up to 100 recipes
• Doors: Dual pane tempered viewing window with hinged inner glass; door mounted condensate trough; top and bottom mount adjustable hinges
• Gas connection: 3/4" NPT
• Water connection: 3/4" garden hose cold water; 40 (min) to 50 (max) PSI. Water quality: TDS 40-125 ppm, pH 7.0-8.5, hardness 35-100 ppm, silica <13 ppm
• Warranty: One year parts and labor oven warranty (international markets contact local distributor).

Questions & answers

What is the Blodgett CNVX-14G Double Full-Size Gas Convection Oven?
The CNVX-14G Double Full-Size Gas Convection Oven is gas convection oven. It operates from Thermostat control to 500F.

How big is the cavity on the CNVX-14G Double Full-Size Gas Convection Oven?
The baking compartment measures Fully welded 304 series stainless steel with bright-annealed finish, coved corner liner, fixed drain at bottom center.

What are the CNVX-14G Double Full-Size Gas Convection Oven utility requirements?
It runs on natural gas: gas connection 3/4" NPT.
