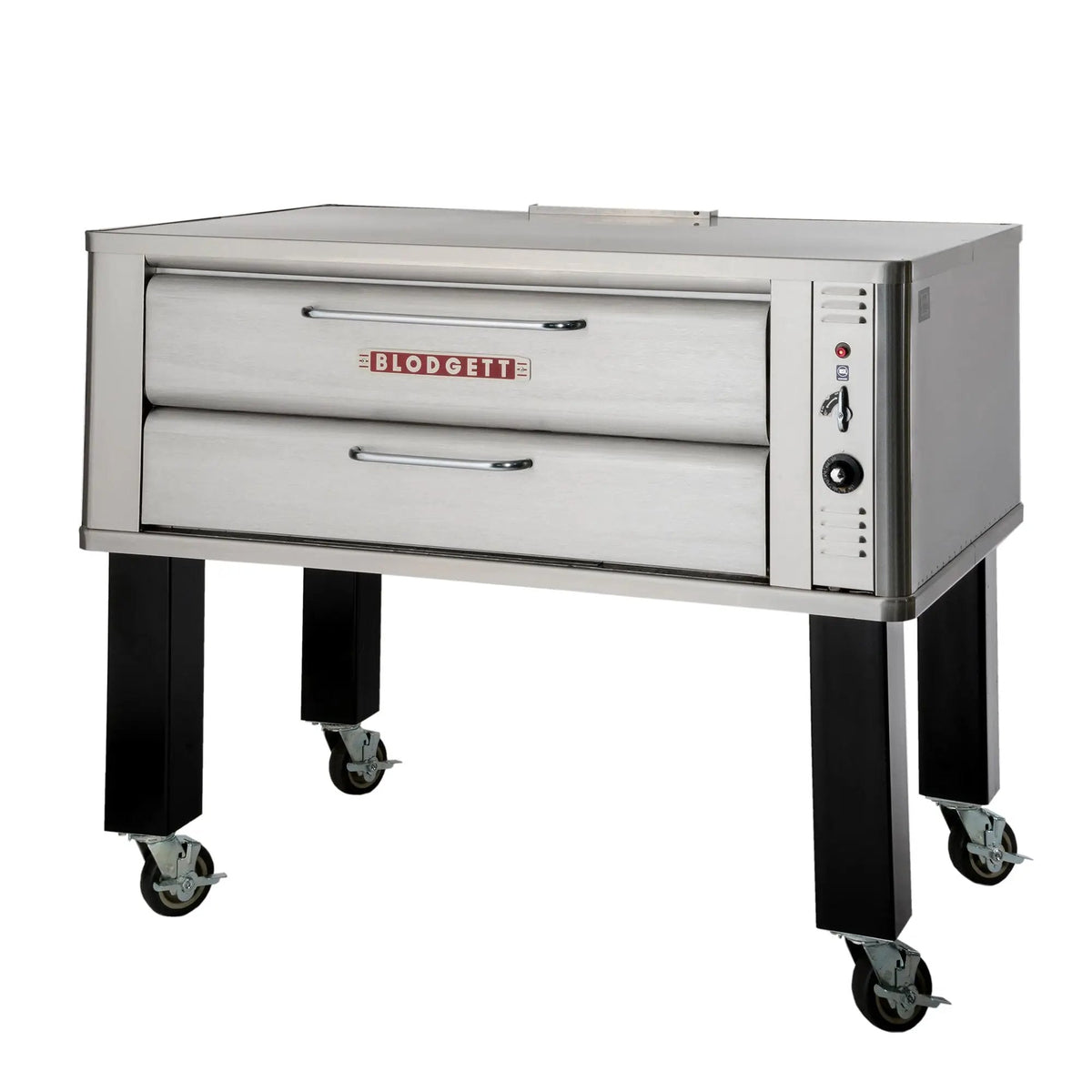

Blodgett 961 Double Multi-Purpose Deck Oven, Double Stack

Two 7 inch decks on natural gas or liquid propane, stacked to 49.625 inches on a 60 by 40 inch footprint: this is the flatwork version of the 900 Series. Each section has its own 37,000 BTU/hr burner and its own thermostat across 200°F to 500°F, over 9.34 square feet of deck apiece. Natural convection keeps the airflow gentle, and because the ovens are gas only, the install needs a 3/4 inch NPT gas connection and nothing else.

• Natural gas at 7.0 to 10.5 inches W.C. inlet, 5 inches W.C. at the manifold.
• The decks run independently — one at 500°F for pizza, the other lower for finishing or holding.
• Fully welded angle iron frame beneath both sections, with counterbalanced doors on concealed hinges.
• 1,085 lbs. shipped; 6 inches of clearance from construction, combustible or not.
• Sections can be added or reconfigured later: 961-951, 961-966 and 961-961-951 are catalogued stacks.

Specifications

• Model: 961
• Series: 900 Series deck oven
• Configuration: Double deck
• Fuel: Natural gas or liquid propane (select option)
• Heat input: 37,000 BTU/hr per oven section
• Interior cavity: 42" x 32" x 7" (1067mm x 813mm x 178mm)
• Capacity: (12) 10" pie tins; (2) 18" x 24" bun pans; (24) 9.5" x 5" bread pans; (16) 9" x 7" roll pans; (14) pullman pans; (9) 13" x 16.5" cup tins
• Deck: Standard steel oven deck; 12 gauge (3.02mm) press-formed, reinforced and flanged aluminized steel deck
• Temperature range: 200 deg F (93C) to 500 deg F (288C)
• Controls: Liquid pressure thermostat; Fahrenheit dial 200 deg F to 500 deg F. Centigrade dial (100C-300C) available at no charge.
• Doors: Counterbalanced doors with concealed hinges; chrome plated tubular steel handles; separate burner door for maintenance access
• Gas connection: 3/4" NPT
• Weight: 961 Single 540 lbs.; Double 1,085 lbs.; Triple 1,625 lbs. Crate 65" x 46.5" x 27" per section.
• Warranty: Two year parts and one year labor warranty; five year limited oven door warranty (international markets contact local distributor)

Questions & answers

What is the Blodgett 961 Double Multi-Purpose Deck Oven?
The 961 Double Multi-Purpose Deck Oven is multi-purpose deck oven, (12) 10" pie tins, rated at 37,000 BTU/hr per oven section. It operates from 200 deg F (93C) to 500 deg F (288C).

How big is the cavity on the 961 Double Multi-Purpose Deck Oven?
The baking compartment measures 42" x 32" x 7" (1067mm x 813mm x 178mm).

What are the 961 Double Multi-Purpose Deck Oven utility requirements?
It runs on natural gas or liquid propane (select the gas type): 37,000 BTU/hr per oven section, gas connection 3/4" NPT.
