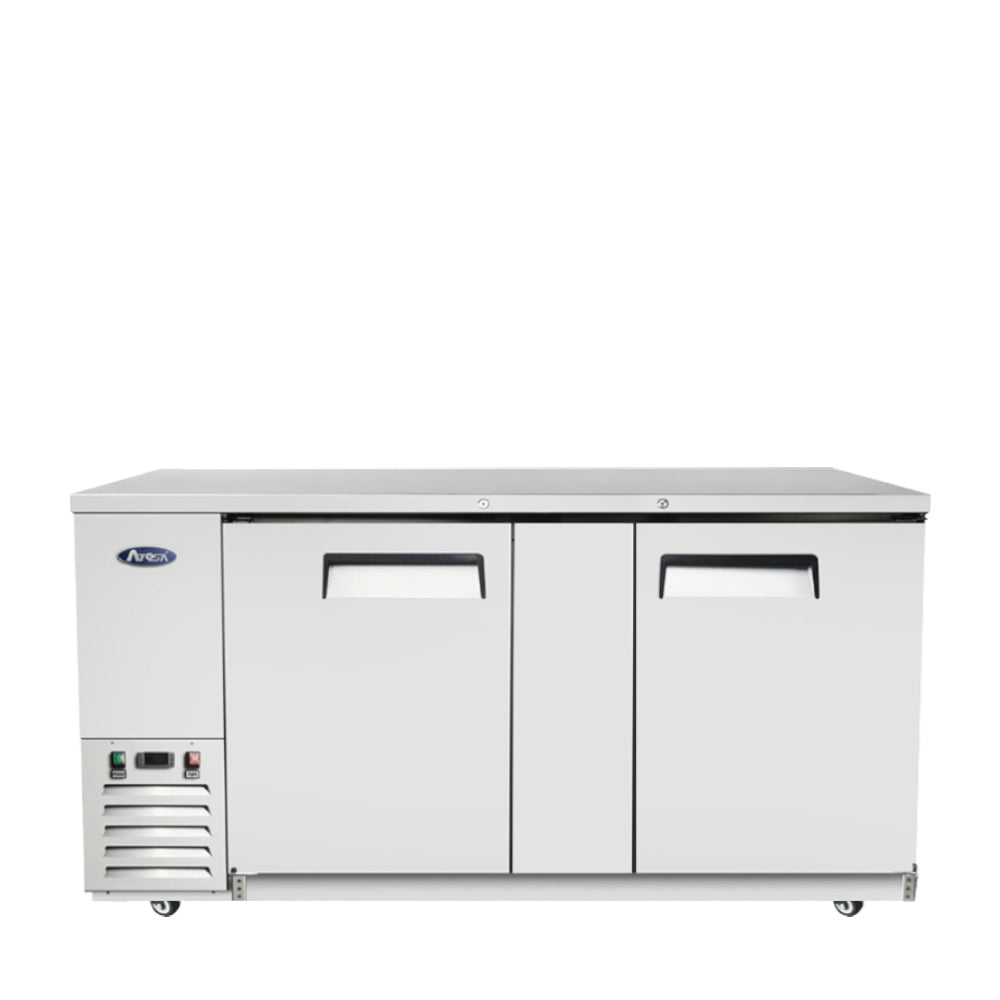

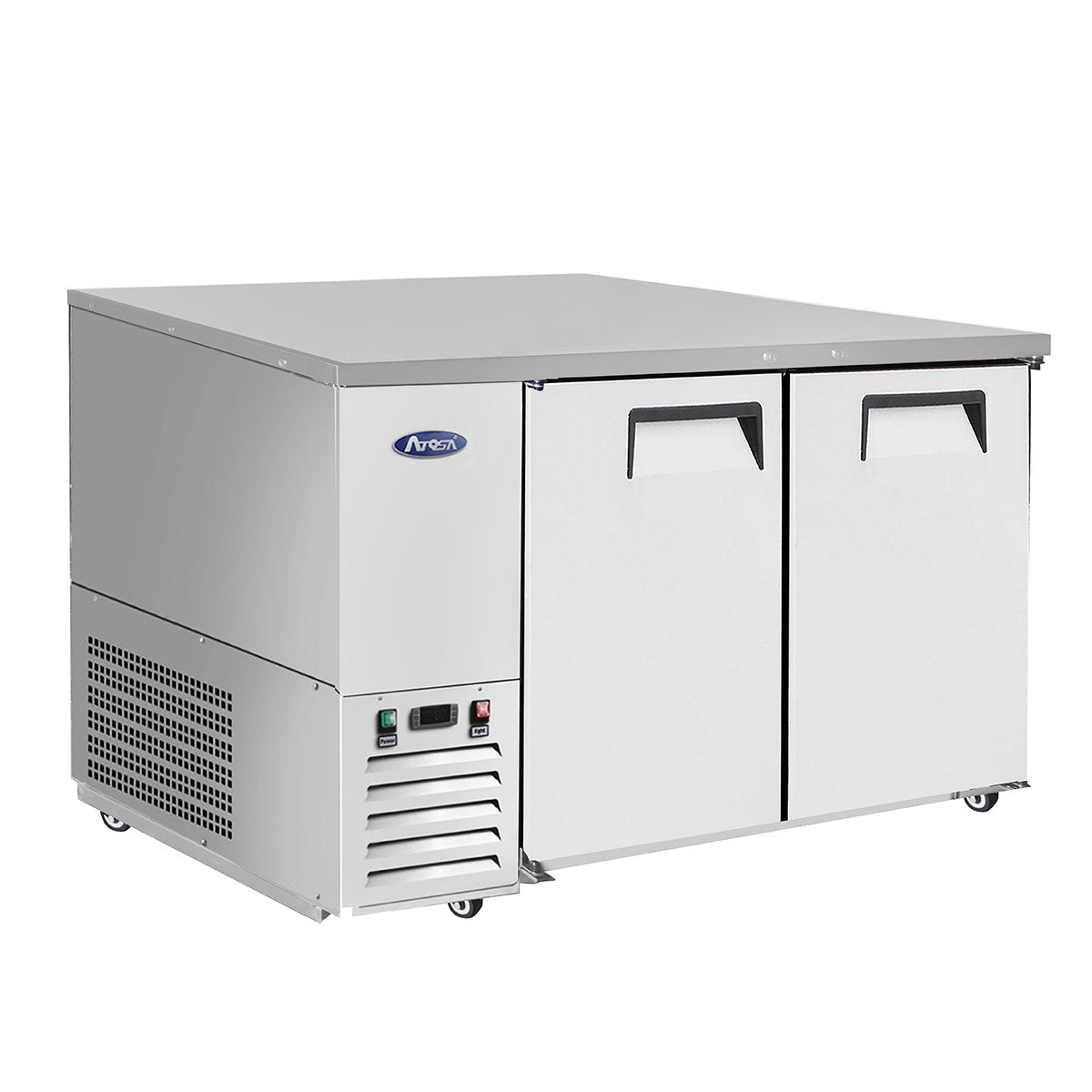

Atosa SBB69GRAUS1 69" Shallow Depth Back Bar Cooler, 18.6 Cu. Ft.
The Atosa SBB69GRAUS1 is a 69" shallow depth back bar cooler from the Atosa back bar cooler line. It offers 18.6 cu. ft. of storage, a 35°F to 38°F operating range, R290 refrigerant, a 1/7 HP compressor and 115/60/1 electrical service at 2.3 A.
Overview
Back bar coolers keep beer, wine and mixers cold right where the bartender works, under the back bar counter. Front-breathing refrigeration allows the cooler to be built in between other equipment.

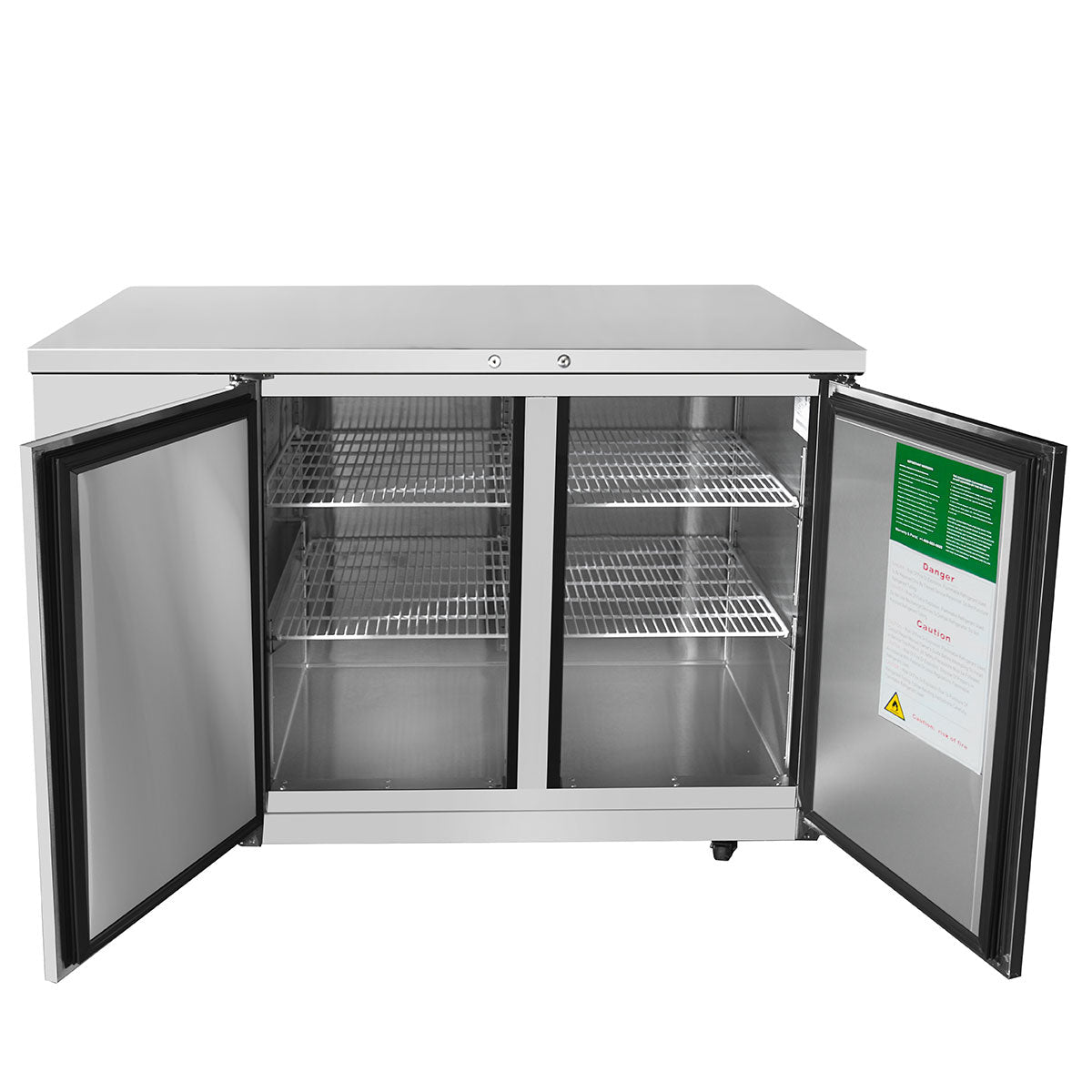

Interior lighting and adjustable shelves make stock easy to see and organize, and lockable doors protect inventory after hours.
Why Operators Choose It
- Temperature: Holds 35°F to 38°F.
- R290 refrigerant: Natural hydrocarbon refrigerant with very low global-warming potential.
- Durable finish: Stainless steel construction resists corrosion and wipes clean.
- Digital control: Electronic controller with a clear temperature display.
- Efficient compressor: Heavy-duty compressor sized for commercial duty cycles.
- Lockable: Door locks protect inventory.
- Tight seal: Magnetic door gaskets seal without latches and snap out for cleaning.
- Mobile: Casters come installed, with brakes on two wheels.
- LED lighting: Bright, efficient LED interior lighting.
Ideal For
Bars, pubs, restaurants and hotel bars that keep bottled and canned drinks cold behind the bar.
Specifications
| Model | SBB69GRAUS1 |
| Product line | Atosa back bar cooler |
| Temperature range | 35°F to 38°F |
| Doors | 2 |
| Capacity (cu. ft.) | 18.6 |
| Shelves | 4 |
| Casters | 2 |
| Amps (A) | 2.3 |
| Voltage (V/Hz/Ph) | 115/60/1 |
| HP | 1/7 |
| Refrigerant | R290 |
| Exterior Dimensions | 68" W x 24-1/2" D x 40-1/8" H |
| Net Weight (lb) | 225 |
| Shipping Weight (lb) | 276 |
| Certifications | ETL |
| Warranty | 3 Year Parts and Labor Warranty; 5 Year Compressor Warranty |
Installation & Utility Requirements
Requires a dedicated 115/60/1 circuit. Leave a few inches of clearance at the back and sides for condenser airflow, keep the unit level, and let it stand upright for several hours after delivery before switching it on.
Optional Accessories (Additional Cost)
- Extra shelves – includes 4 shelf clips per shelf
- SBB48GRAUS1 – Top Left Shelf part#: W040237801
- (Top Right Shelf, Bottom Shelves) W040237701
- BB59GRAUS1 – Top Left Shelf part#: W040235801
- (Top Right Shelf, Bottom Shelves) W040235701
- SBB69GRAUS1 – Top Left Shelf part#: W040238101
- (Top Right Shelf, Bottom Shelves) W040238001
Warranty
3 Year Parts and Labor Warranty. 5 Year Compressor Warranty.
Specifications per Atosa USA data; subject to change by the manufacturer.
