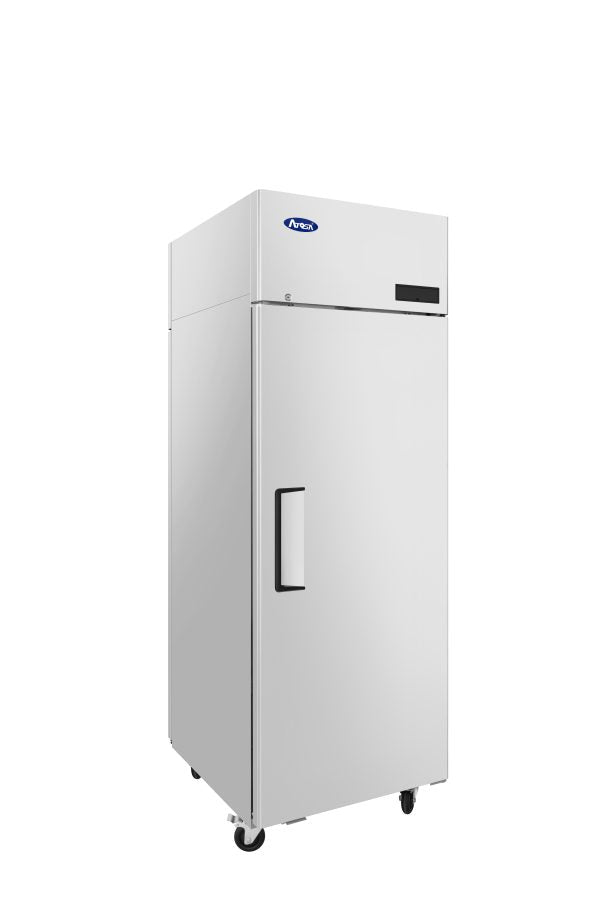

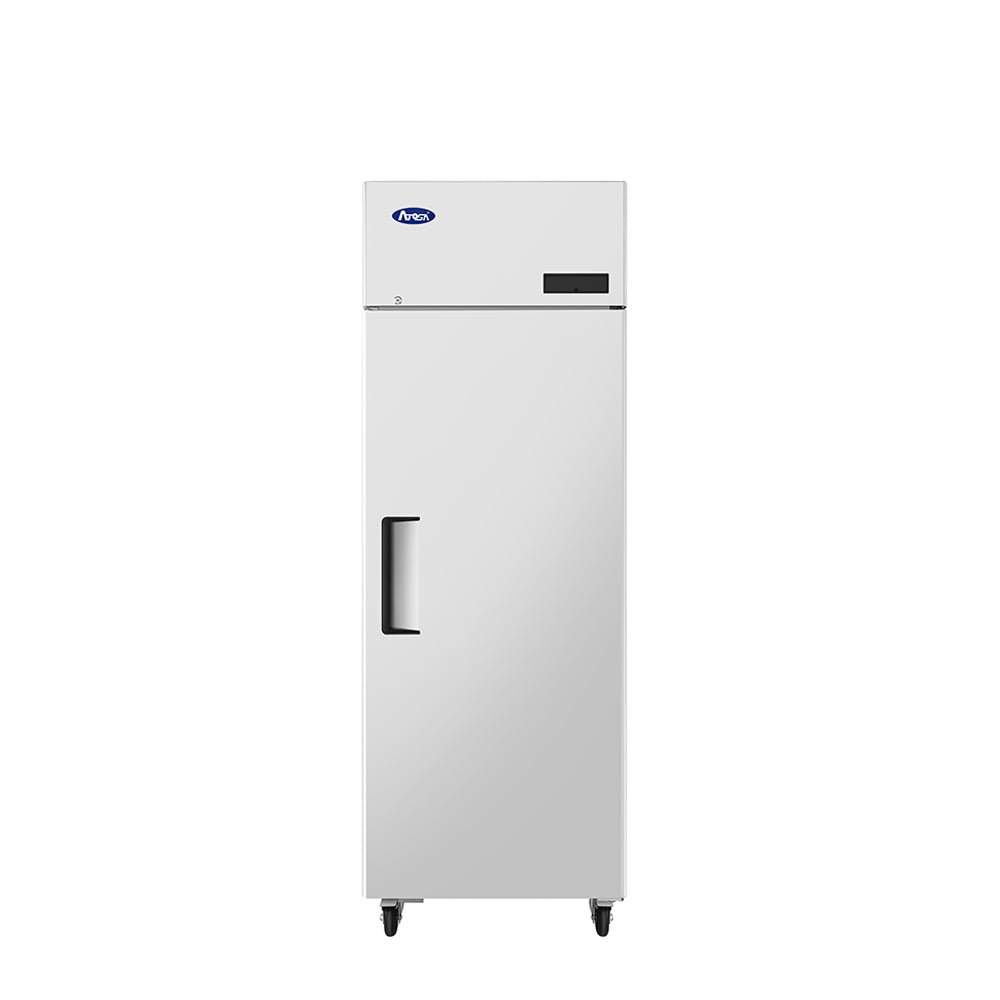

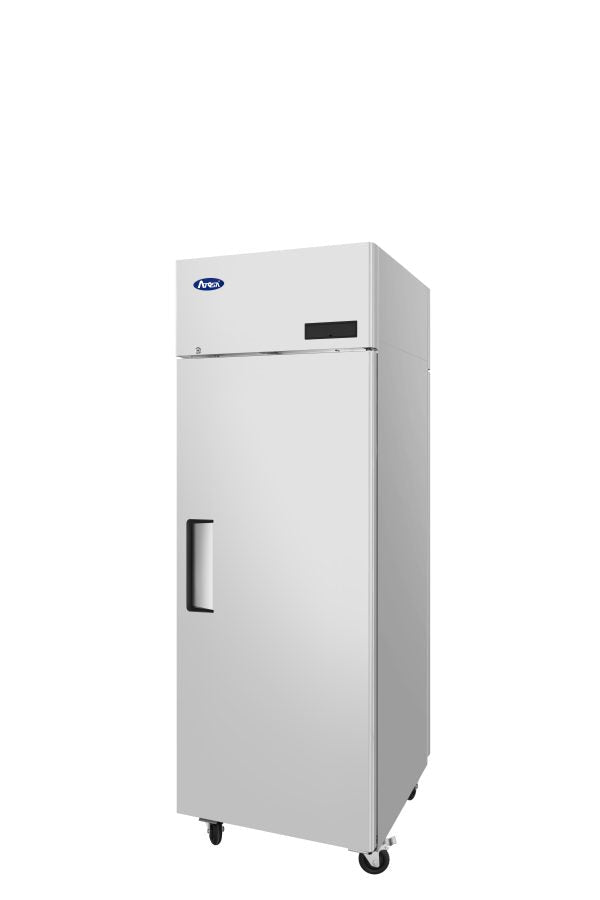

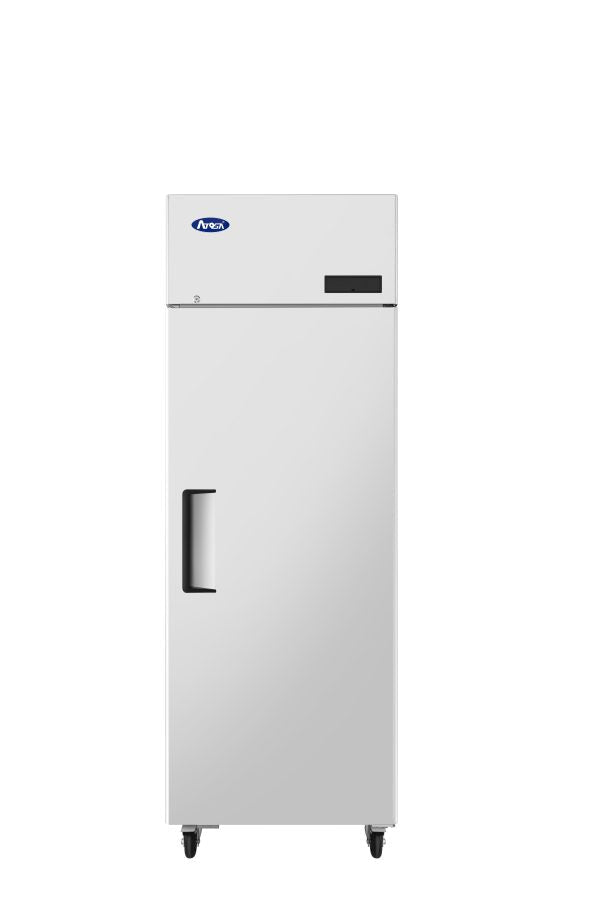

Atosa PLUS-R1-SD-R-PT 29" Top Mount 1-Section Pass-Thru Solid Door Refrigerator, 23.7 Cu. Ft.
The Atosa PLUS-R1-SD-R-PT is a 29-inch, 1-section top mount pass-thru refrigerator with solid doors front and rear, 23.7 cu. ft. of storage, a 35°F to 38°F holding range, a GMCC compressor on R290 refrigerant and 115/60/1 electrical service at 3.7 A.
Load From One Side, Serve From the Other
Doors on both faces let the prep side load product while the service side pulls it, so the cabinet becomes a pass-through between kitchen zones instead of a bottleneck.

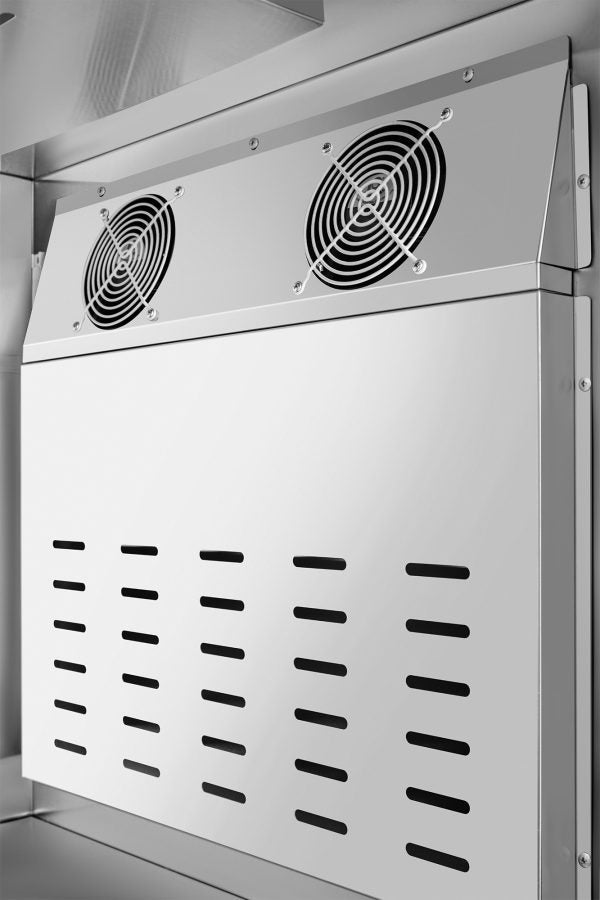

A down-duct airflow channel spreads cold air evenly from the top-mount system, which keeps the compressor away from floor-level dust and grease.
Why Operators Choose It
- Construction: Stainless steel exterior & interior.
- Doors & seals: Front & rear solid doors.
- Lighting: LED interior lights.
- Refrigerant: Heavy duty GMCC compressor with environmentally friendly R290 refrigerant.
- Controls: Full Electronic Controller.
- Temperature: Maintains temperatures between 35°F – 38°F.
- Self-closing door(s) with automatic stay open feature.
- Magnetic door gasket.
- Down-duct air flow channel to ensure even distribution of air.
- Door locks standard.
- Mobility: Pre-installed casters.
- Storage: Pre-installed shelf clips.
- NEMA 5-15 plug standard.

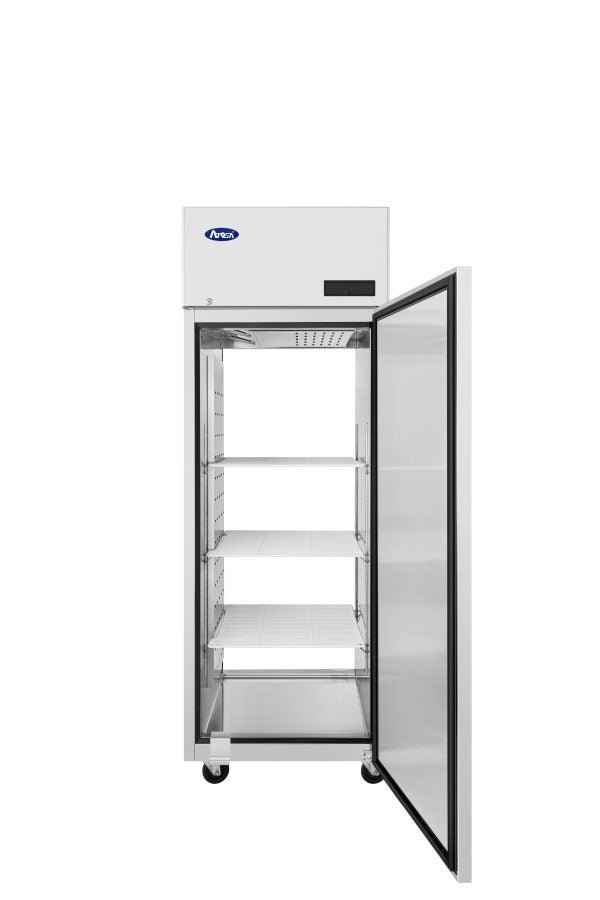

- Three (3) shelves per section.
Ideal For
Kitchens with a separate prep area and service line, cafeterias, hospitals and high-volume restaurants that move cold product between zones.
Specifications
| Model | PLUS-R1-SD-R-PT |
| Sections | 1 |
| Doors | 2 solid (front and rear) |
| Shelves | 3 |
| Temperature range | 35°F to 38°F |
| Capacity | 23.7 cu. ft. |
| Refrigerant | R290 |
| Compressor | 1/3 HP GMCC |
| Electrical | 115/60/1, 3.7 A, NEMA 5-15 plug |
| Exterior dimensions | 28-3/4" W x 33-7/8" D x 82-7/8" H |
| Net weight | 287 lb |
| Shipping weight | 331 lb |
| Certifications | ETL |
| Warranty | 3 Year Parts and Labor Warranty; 5 Year Compressor Warranty |
Installation & Utility Requirements
Requires a dedicated 115/60/1 circuit. Leave a few inches of clearance at the back and sides for condenser airflow, keep the unit level, and let it stand upright for several hours after delivery before switching it on.
Allow door swing clearance on both the front and rear faces.
Warranty
3 Year Parts and Labor Warranty; 5 Year Compressor Warranty from Atosa USA.
Download the Atosa PLUS-R1-SD-R-PT spec sheet (PDF)
Specifications per Atosa USA data; subject to change by the manufacturer.
