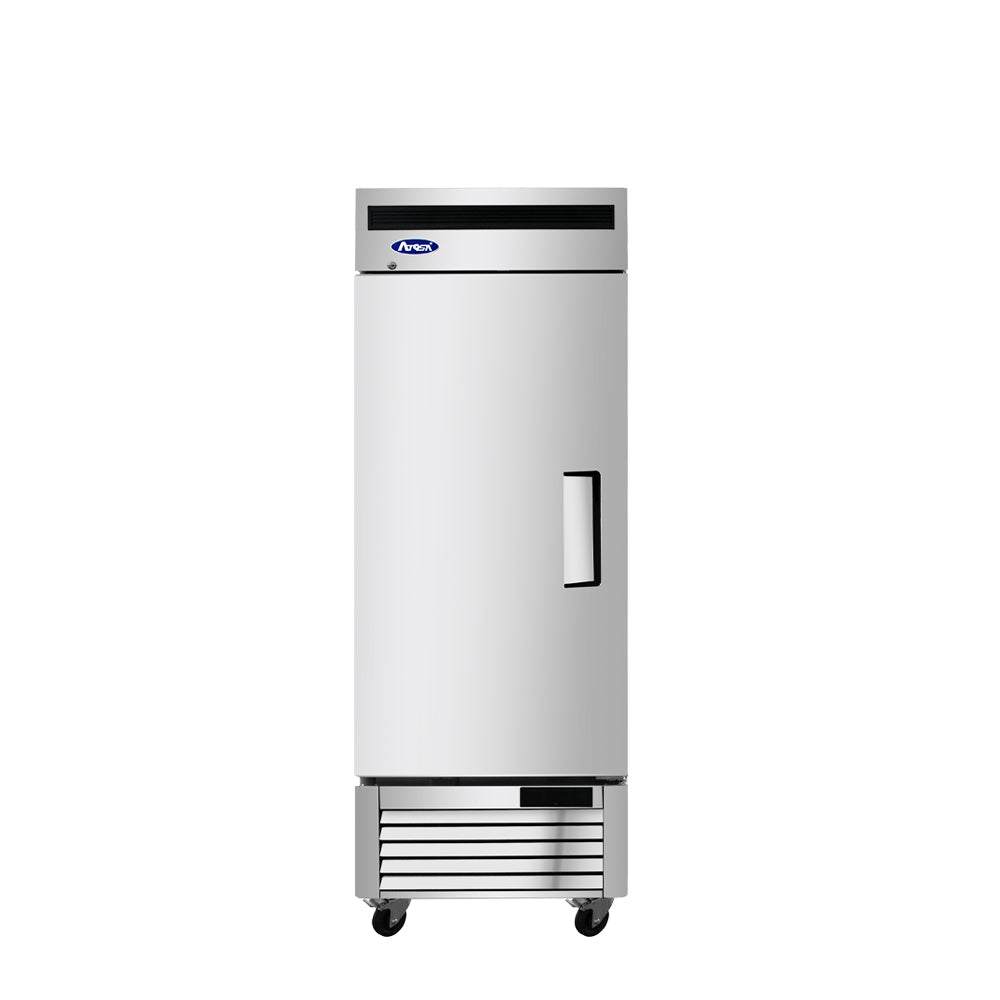

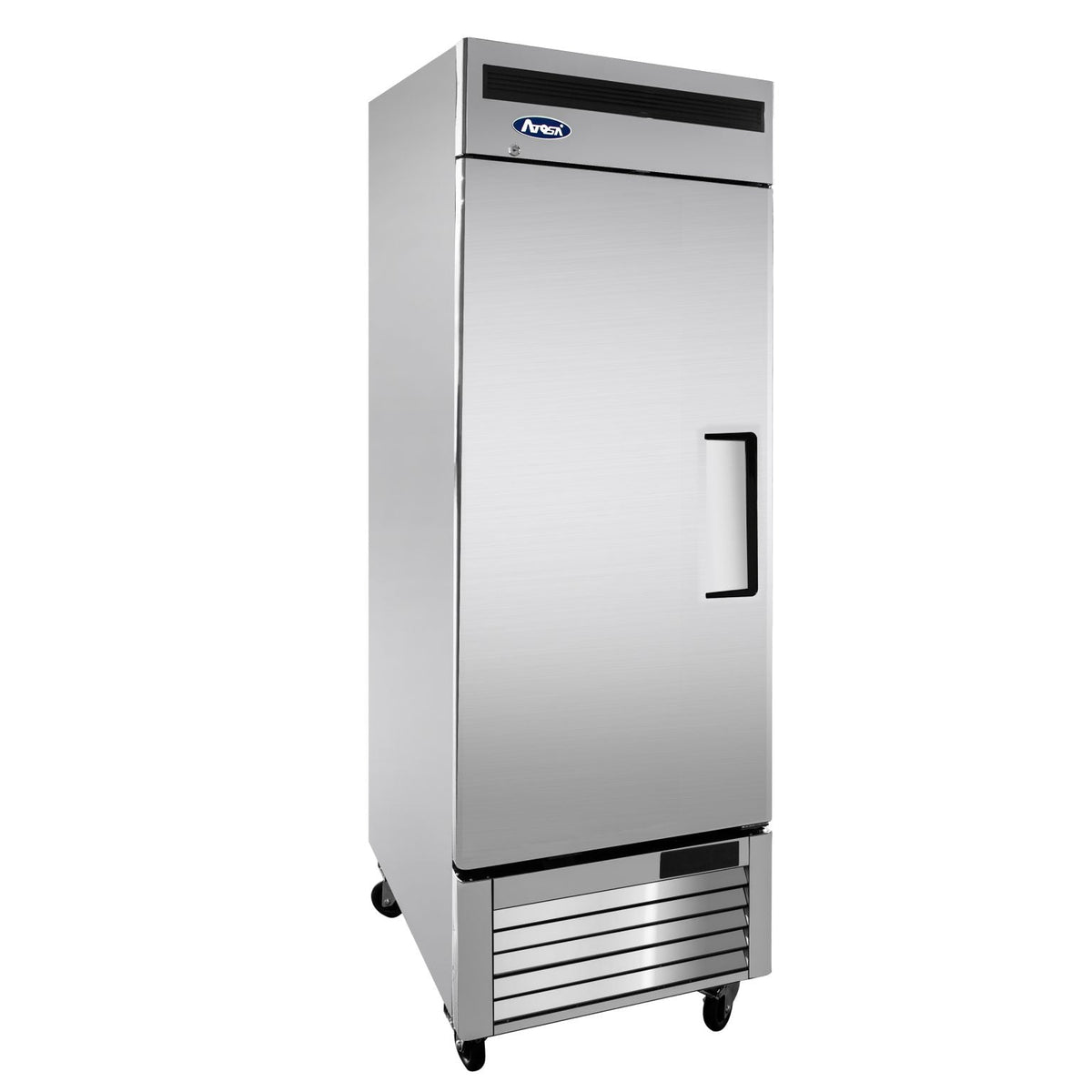

Atosa MBF8501GRL 27" Bottom Mount 1-Door Reach-In Freezer, Left-Hand Hinge, 19.1 Cu. Ft.

The Atosa MBF8501GRL is a 27-inch bottom mount 1-Door reach-in freezer from the Atosa reach-in refrigeration line. It offers 19.1 cu. ft. of storage, a -8°F to 0°F operating range, R290 refrigerant, a 1/2 HP compressor and 115/60/1 electrical service at 6.3 A.

Overview

Reach-ins are the main upright cold storage in most commercial kitchens. This cabinet uses a self-contained, air-cooled refrigeration system with a digital controller that holds a steady temperature through frequent door openings, and the interior is laid out for full-size sheet pans and food boxes on adjustable shelves.

The bottom-mount design places the compressor near the floor, where the air is cooler and service is easier. Atosa uses R290 hydrocarbon refrigerant, which has very low global-warming potential and moves heat efficiently.

Why Operators Choose It

• Temperature: Holds -8°F to 0°F.
• Bottom-mount refrigeration: Compressor at the bottom draws cooler floor-level air and is easy to service.
• Durable finish: Stainless steel construction resists corrosion and wipes clean.
• Digital control: Electronic controller with a clear temperature display.
• Efficient compressor: Heavy-duty compressor sized for commercial duty cycles.
• Self-closing doors: Doors close on their own and stay open past 90° for loading.
• Balanced refrigeration: Self-contained, air-cooled system balanced for steady temperatures.
• Easy cleaning: Rounded interior corners are easier to wipe out.
• Recessed handles: Handles are recessed into the door so nothing snags in tight aisles.

Ideal For

Restaurant kitchens, cook lines, bakeries, cafeterias and convenience stores that need upright cold storage close to the work area.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1 circuit. Leave a few inches of clearance at the back and sides for condenser airflow, keep the unit level, and let it stand upright for several hours after delivery before switching it on.

Optional Accessories (Additional Cost)

• Extra shelves – includes 4 shelf clips per shelf
• MBF8520GR shelf part # W0402316
• MBF8531GR/GRL shelf part # W0402389
• MBF8501GR/GRL shelf part # W0402393
• MBF8503GR shelf part # W0402387
• MBF8504GR shelf part # W0402387 left/right shelf, part # W0402388 middle shelf

Warranty

3 Year Parts and Labor Warranty. 5 Year Compressor Warranty.

Specifications per Atosa USA data; subject to change by the manufacturer.
