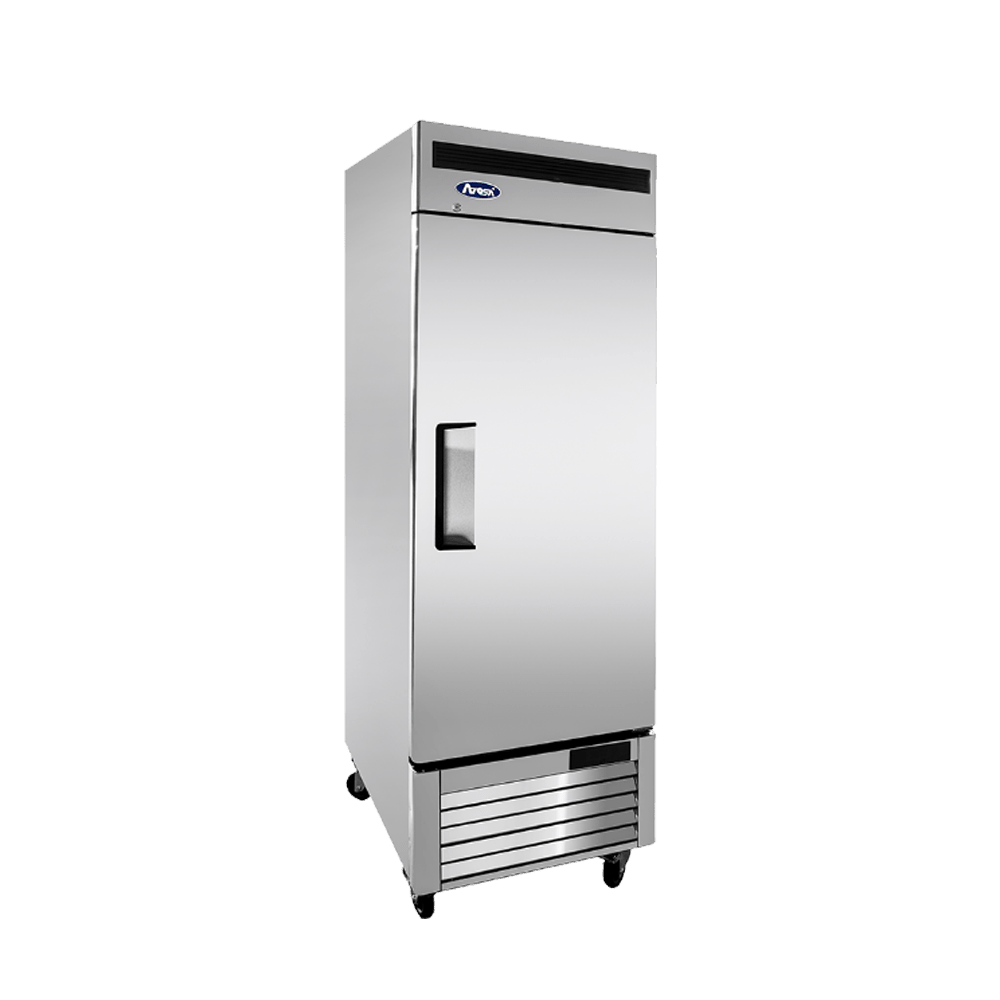

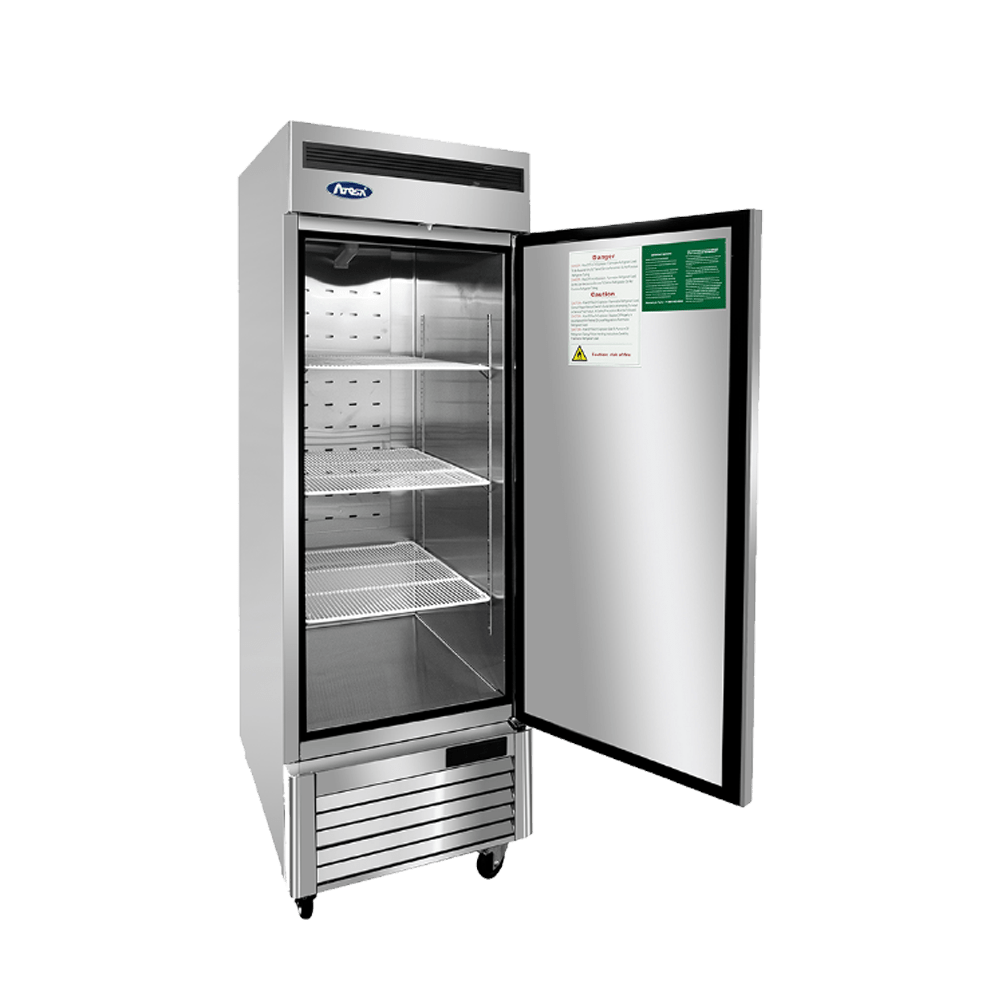

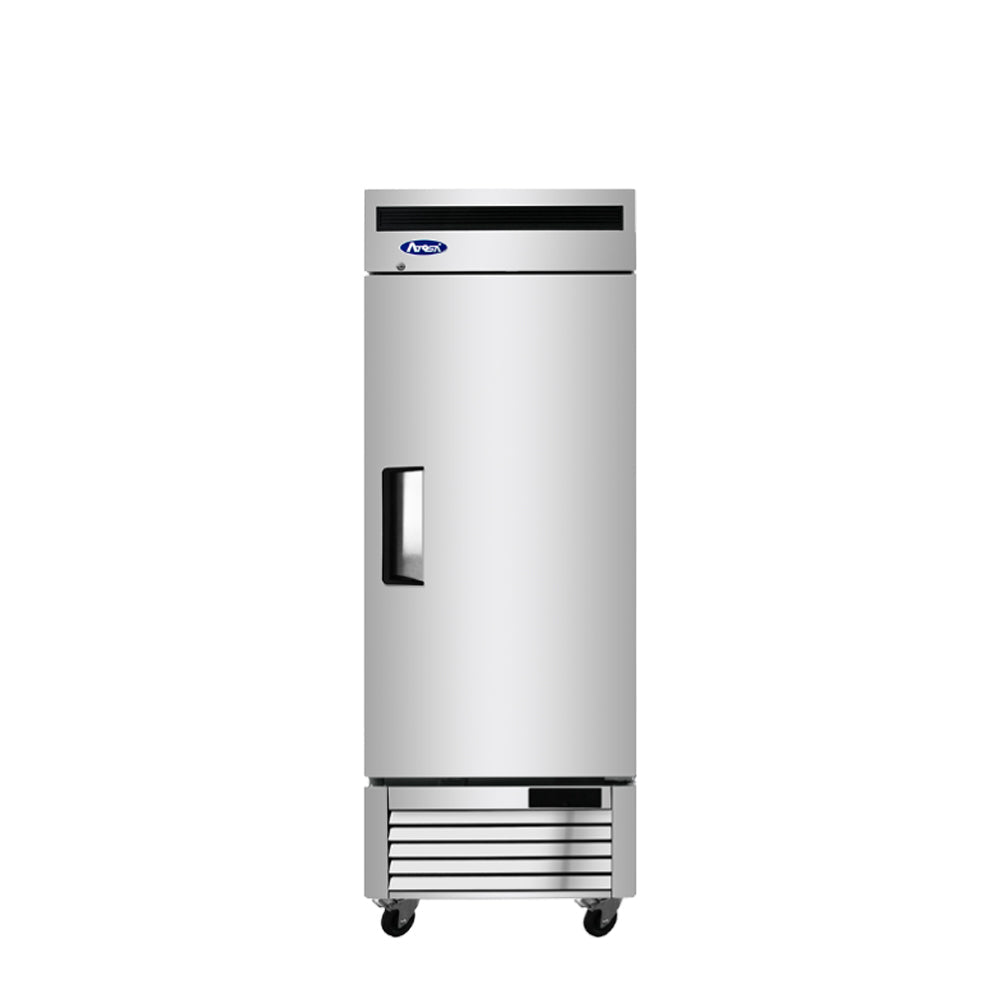

Atosa MBF8501GR 27" Bottom Mount Reach-In Freezer, 1 Door, 19.1 Cu. Ft.
The Atosa MBF8501GR is a 27-inch, one-door bottom-mount reach-in freezer from the MBF series with 19.1 cu. ft. of storage. It holds -8°F to 0°F on R290 refrigerant through a 1/2 HP compressor and plugs into a standard 115V outlet.
Bottom-Mount Refrigeration
With the condensing unit at the bottom of the cabinet, the compressor draws cooler air from near the floor rather than the hot air that collects at the top of a cook line, and it sits at a height that is easy to reach for cleaning and service. A down-duct air system spreads cold air evenly from top to bottom so product on every shelf holds temperature.
The cabinet runs on R290, a natural hydrocarbon refrigerant with very low global-warming potential, controlled by a digital thermostat with an easy-to-read display. This model is ENERGY STAR certified for lower running costs.
Why Operators Choose It
- Easy service: Bottom-mount compressor sits low and out of the heat of the line.
- Even temperature: Down-duct airflow; holds -8°F to 0°F.
- Stainless cabinet: Stainless steel exterior and interior with rounded interior corners for cleaning.
- Secure storage: Recessed handles, door locks and magnetic snap-in gaskets.
- Mobile: Casters pre-installed, two with brakes.
Controls
Digital electronic temperature controller with display.
Ideal For
Restaurant kitchens, cook lines, bakeries, cafeterias and convenience stores that need upright cold storage close to the line.
Specifications
| Model | MBF8501GR |
| Series | Atosa MBF bottom mount |
| Type | Reach-in freezer, solid door |
| Doors | 1 |
| Capacity | 19.1 cu. ft. |
| Shelves | 3 epoxy-coated |
| Temperature range | -8°F to 0°F |
| Refrigerant | R290 |
| Compressor | 1/2 HP |
| Electrical | 115/60/1 V/Hz/Ph, 6.3 A |
| Casters | 4" (2 with brakes) |
| Exterior dimensions | 27" W x 31.7" D x 83.1" H |
| Net / shipping weight | 265 lb / 298 lb |
| Certifications | ETL, ENERGY STAR |
| Warranty | 3 Year Parts and Labor Warranty; 5 Year Compressor Warranty |
Installation & Utility Requirements
Requires a dedicated 115/60/1 circuit (NEMA 5-15P cord and plug). Leave a few inches of space at the back and top for airflow, keep the unit level, and let it stand upright for several hours after delivery before switching on.
What's Included
- 3 epoxy-coated wire shelves with clips
- Set of 4 casters (2 with brakes)
- Door lock and keys
Optional Accessories (Additional Cost)
- Extra shelves, includes 4 shelf clips per shelf
- MBF8501GR/GRL shelf part # W0402393
Warranty
3 Year Parts and Labor Warranty. 5 Year Compressor Warranty.
Specifications per Atosa USA data; subject to change by the manufacturer.
