Atosa CookRite ATFS-40 16" 40 LB Deep Fryer, 102,000 BTU
The Atosa ATFS-40 is a 16-inch 40 LB deep fryer from the Atosa CookRite line. It offers a 200°F to 400°F operating range and a total input of 102,000 BTU/hr. It runs on natural gas or liquid propane; select the gas type above.
Overview

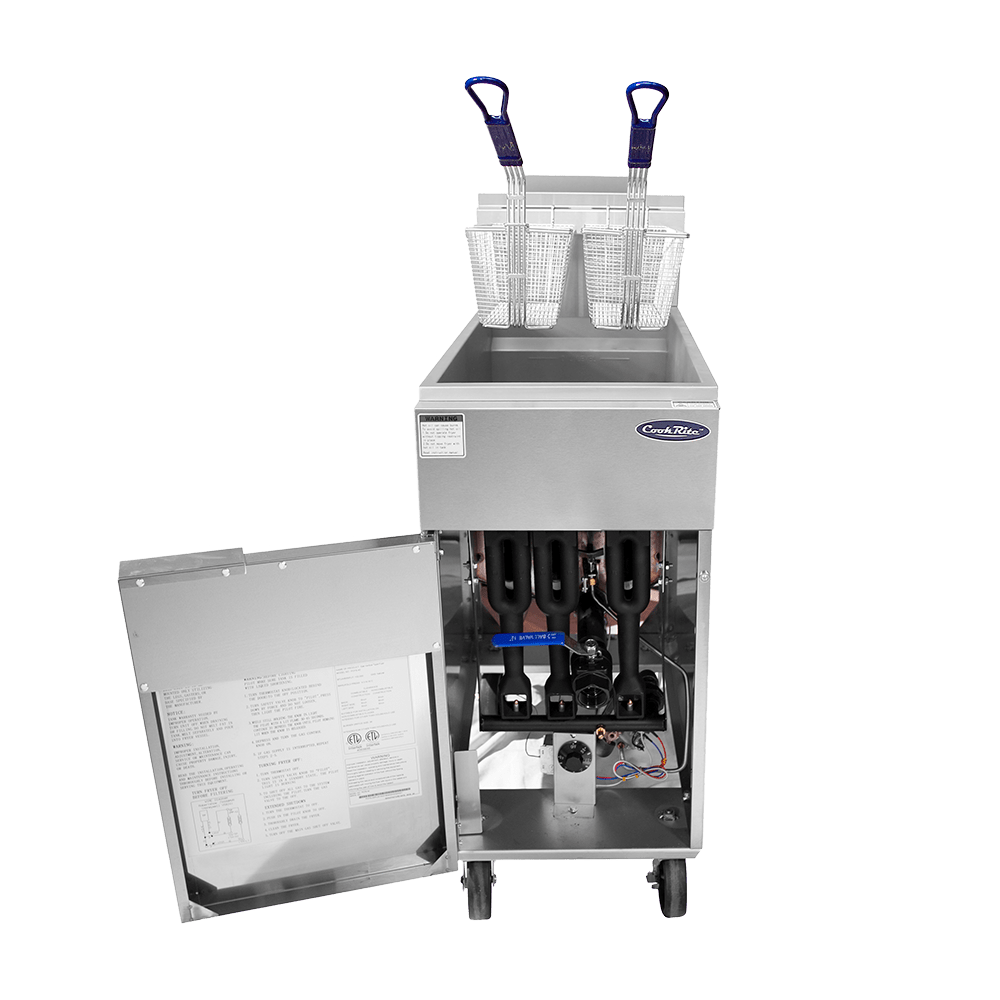

A tube-fired gas fryer heats oil through burner tubes inside the tank, giving strong recovery between loads. The cool zone below the tubes collects crumbs and sediment away from the heat, which helps extend oil life.
A thermostat holds the oil at the set temperature, and a safety system shuts off gas if the pilot goes out.
Why Operators Choose It
- Robertshaw thermostat: Robertshaw thermostat for accurate temperature control.
- Durable finish: Stainless steel construction resists corrosion and wipes clean.
- Robertshaw gas valve: Robertshaw gas valve with safety shut-off.
- Mobile: Casters come installed, with brakes on two wheels.
- High-limit protection: High-temperature limit cuts the burners if the oil overheats, then resets itself.
- Fry baskets: Baskets with front hooks hang on the tank to drain.
- Heavy-duty burners: Cast-iron burners built for continuous use.
- Safety valve: Gas safety valve shuts off the flow if the flame goes out.
Ideal For
Restaurants, QSR and institutional kitchens frying fries, chicken, seafood and appetizers.
Specifications
| Model | ATFS-40 |
| Product line | Atosa CookRite |
| Fuel | Natural gas or liquid propane (select option) |
| Temperature range | 200°F to 400°F |
| Burners and Control Method | 3 Burners, Independent Manual Control |
| Intake-tube Pressure (in. W.C.) | 4 |
| BTU/hr per Burner | 34,000 |
| Total BTU/hr | 102,000 |
| Regulator | 4" w.c. |
| Basket Dimensions (inch) | 13.3" x 30.1" x 44.4" |
| Exterior Dimensions | 15.6" W x 30.1" D x 44.4" H |
| Net Weight (lb) | 131 |
| Shipping Weight (lb) | 160 |
| Certifications | ETL |
| Warranty | 1 Year Parts and Labor Warranty |
Installation & Utility Requirements
Have a qualified technician connect the unit to the gas supply through the regulator and check pressures at start-up. Specify natural gas or propane when ordering. Install under a ventilation hood with clearance to combustible surfaces as shown on the spec sheet; use a restraining device with a flexible gas hose on mobile units.
Optional Accessories (Additional Cost)
- Leg kit part # 301110006
- Fryer splash guard part # 21101001047
- ATFS-35ES & ATFS-40 & ATFS-50 Fryer cover #: 21201001019
- ATFS-75 Fryer cover #: 21201003015
- Joiner strip #: 21101001046
- Mesh fryer screen for ATFS-35ES/40/50: R06018000069
- Mesh fryer screen for ATFS-75: R06018000070
Warranty
1 Year Parts and Labor Warranty.
Specifications per Atosa USA data; subject to change by the manufacturer.
