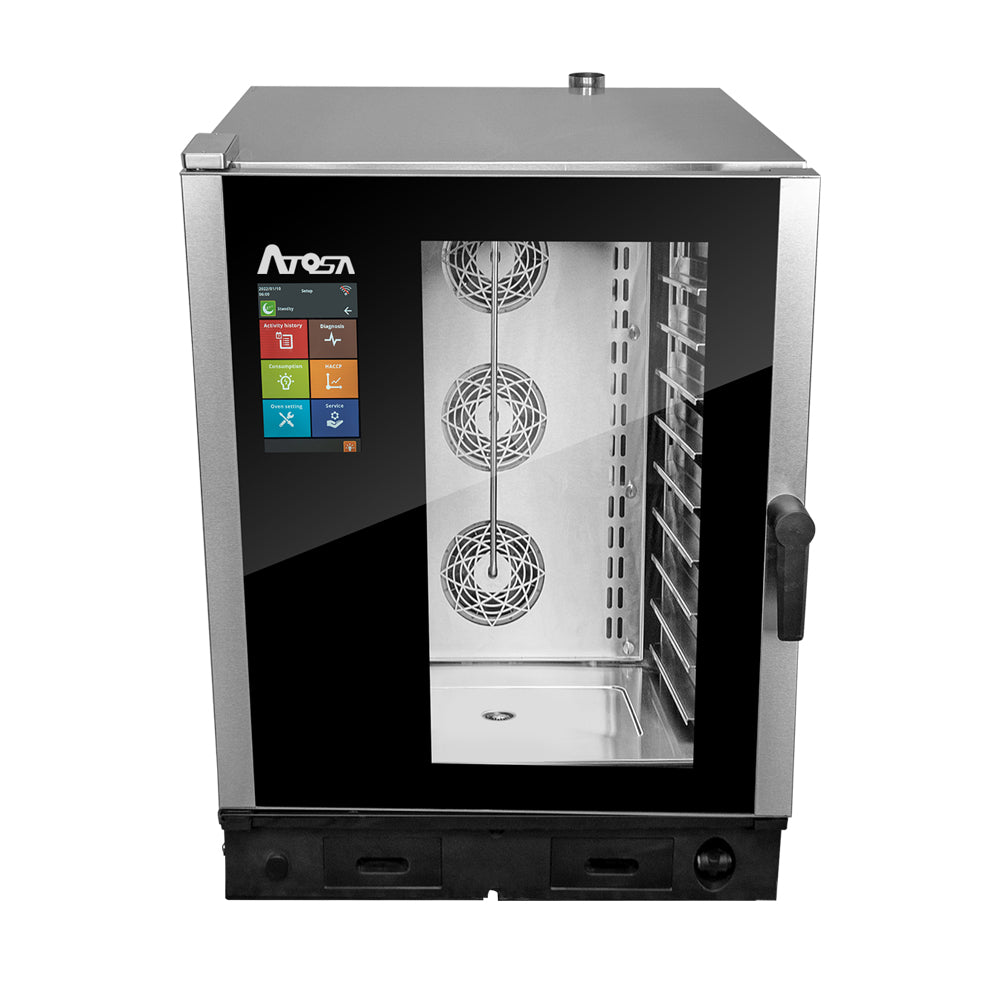

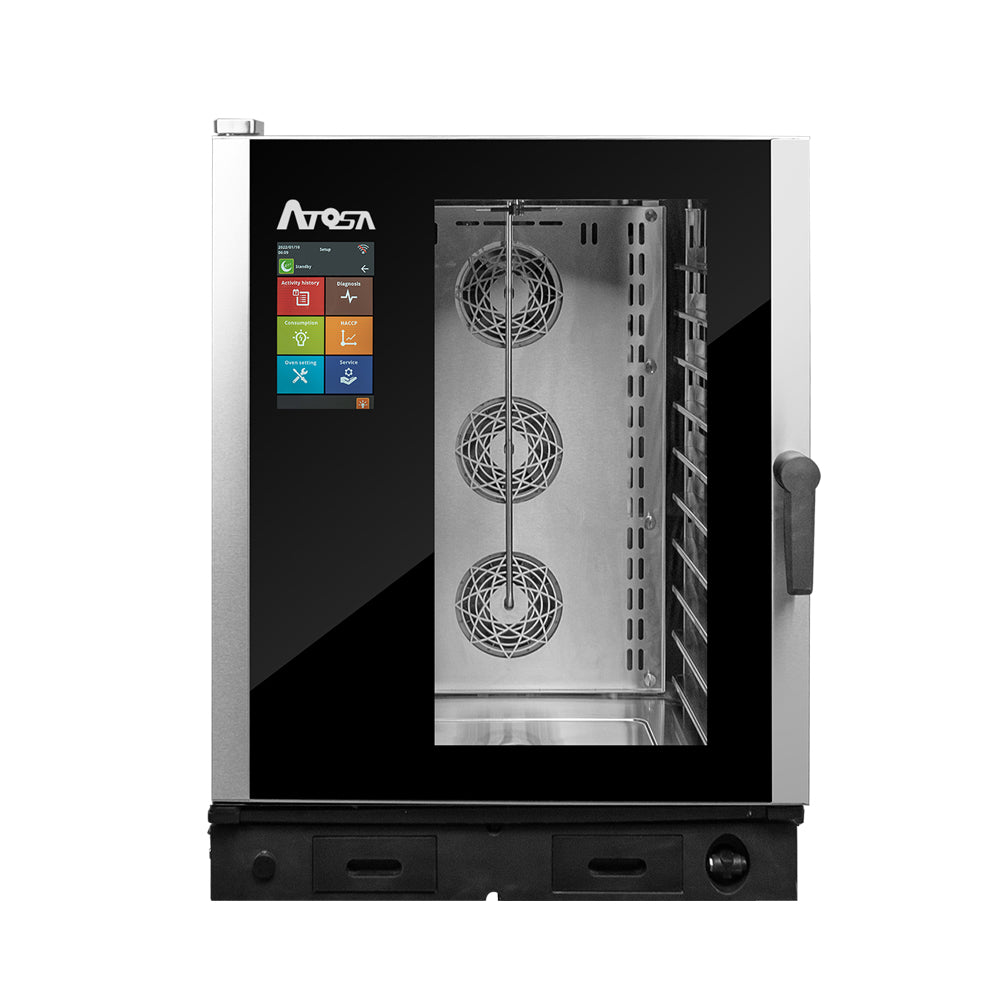

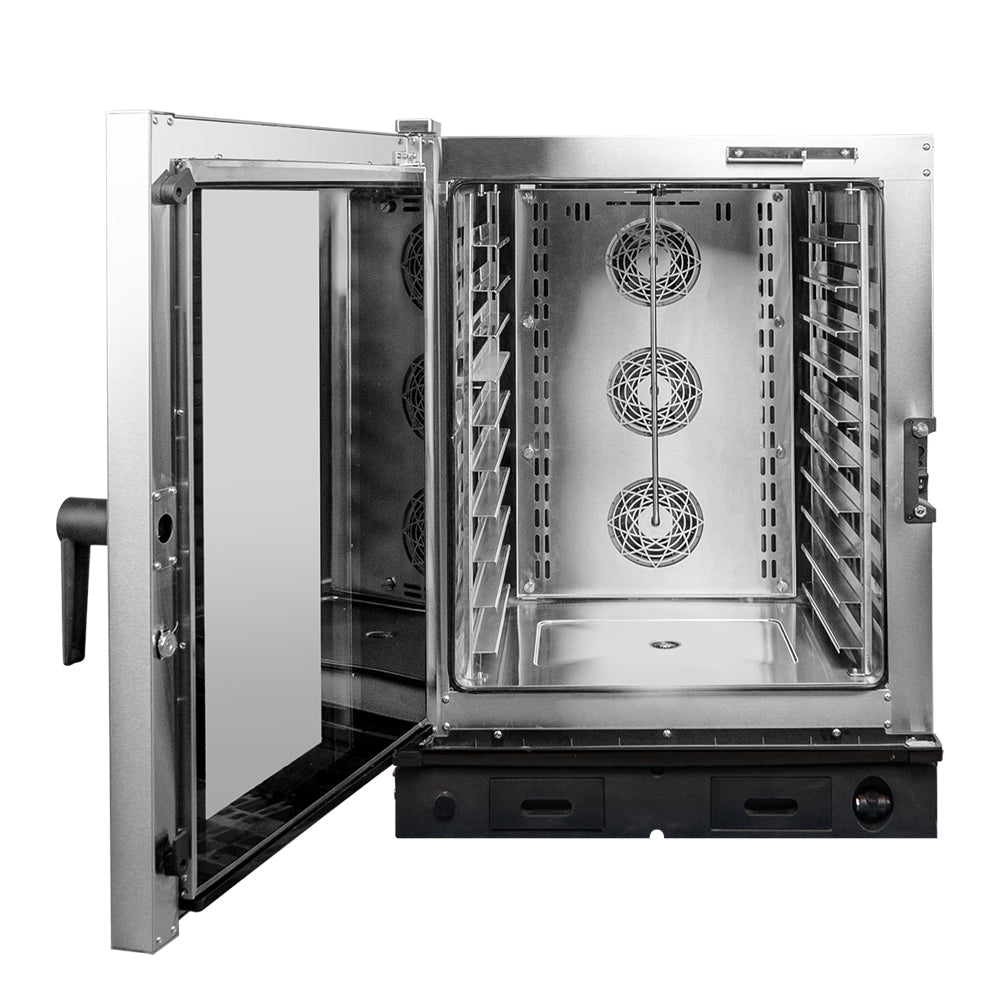

Atosa AEC-1021E 36" Smart Touch Combi Oven
The Atosa AEC-1021E is a 36-inch smart touch combi oven from the Atosa combi oven line. It offers 22.5 – 28.8 kW and 208/240 electrical service at 62/70 A.
Overview
A combi oven combines dry convection heat with steam, so one oven can steam vegetables, roast proteins and bake bread. Adding humidity reduces shrinkage and keeps food moist.
Programmable controls store recipes so results are consistent from shift to shift.
Ideal For
Restaurants, hotels and institutions that steam, roast and bake in one oven.
Specifications
| Model | AEC-1021E |
| Product line | Atosa combi oven |
| Capacity | 10 x (18" x 26") Pan |
| Rack Slots | 10 |
| Volts | 208/240 |
| Phase | 3 |
| Amps Draw (Min/Max) | 62/70 |
| Breaker (A) | 80/90 |
| KW | 22.5 – 28.8 |
| Power Cord Specification | SJTOW 4 x 4 AWG FT-1 VW-1 |
| Water Inlet Size | 5/16" OD Push-to-Connect |
| Water Pressure (PSI) | 30-90 |
| Drain Size (ID/OD) | 1" ID / 1-1/2" OD |
| Exterior Dimensions | 36" W x 42-1/2" D x 48-1/2" H |
| Weight (lb) | 436 |
| Weight Capacity | Total = 650 lb, 65lb Per Shelf |
| Certifications | ETL, ENERGY STAR |
| Warranty | 1 Year Parts and Labor Warranty |
Installation & Utility Requirements
Requires 208/240 electrical service on a dedicated circuit. Have a qualified electrician confirm the circuit and connection before start-up, and follow the clearances on the spec sheet.
Warranty
1 Year Parts and Labor Warranty.
Specifications per Atosa USA data; subject to change by the manufacturer.
