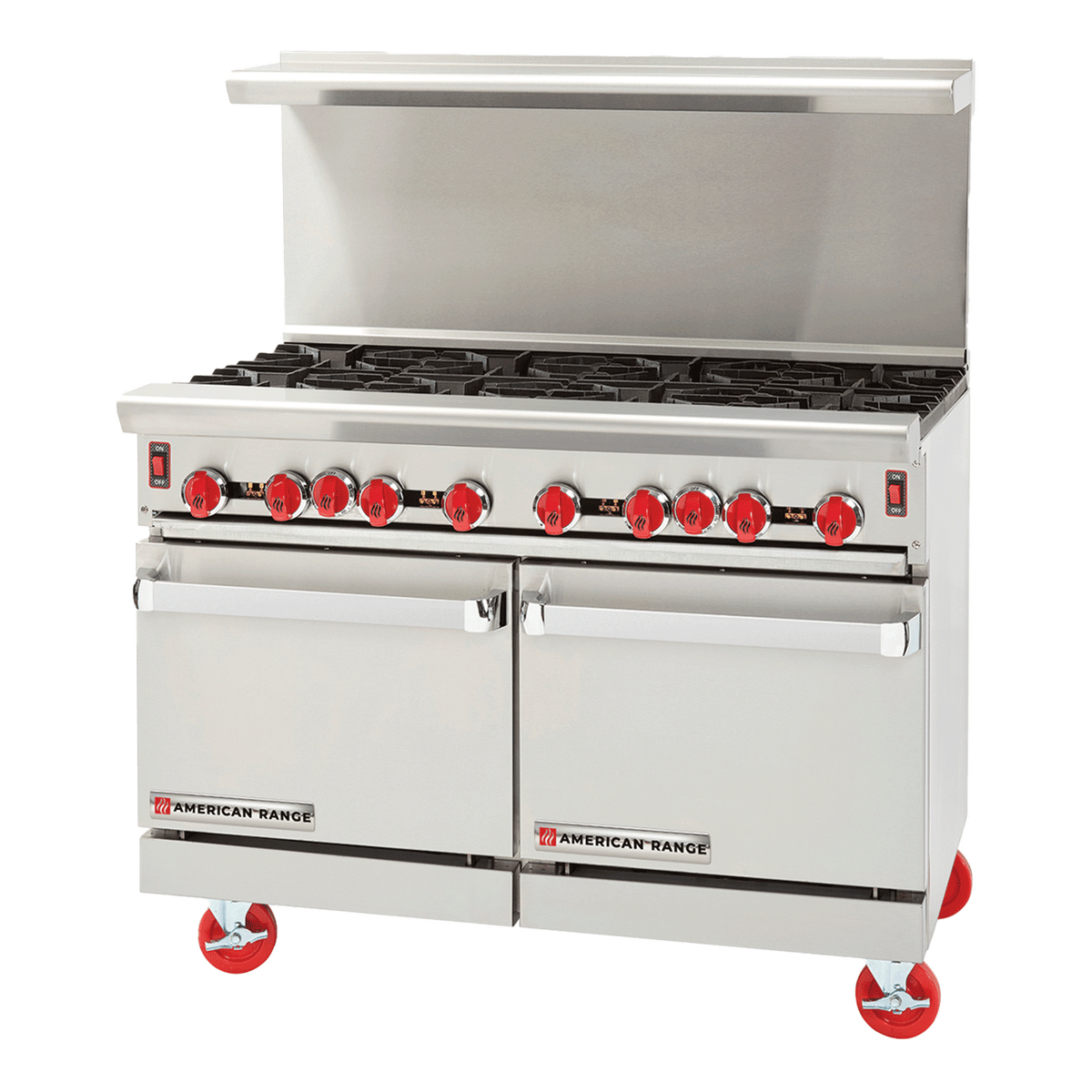

American Range ARGF-8 48" Green Flame Gas Range, 8 Burners, (2) Space Saver Ovens

The American Range ARGF-8 is a 48-inch Green Flame series gas range with eight 22,000 BTU open burners on top and a (2) 20" space saver ovens below, rated at 216,000 BTU/hr in total. It is built in the USA and runs on natural gas or liquid propane; select the gas type above.

Cooktop & Oven Performance

Green Flame burners light by electronic ignition with no standing pilots, so there is no pilot flame burning gas and heating the kitchen between uses. Each 22,000 BTU/hr open burner has an anti-clog, lift-off burner head under a heavy 12" x 12" cast-iron grate, with a removable full-width drip pan underneath for cleanup.

The 20-inch space saver oven is fired by a 20,000 BTU/hr burner and measures 20" W x 26-1/2" D x 13-1/2" H inside. Oven thermostats adjust from 250°F to 500°F, each oven comes with two chrome racks, and 100% safety gas shut-off is standard.

Why Operators Choose It

• Heavy-duty build: Stainless steel front, sides and 6-inch deep front landing ledge on 6-inch adjustable legs.
• Powerful burners: 22,000 BTU/hr lift-off, anti-clog open burners under 12" x 12" cast-iron grates.
• Electronic ignition: No standing pilots on burners, griddle or ovens, which saves gas and keeps the kitchen cooler.
• Your choice of back: Stub back, high riser or high riser with shelf at no extra charge (removable shelf, no tools needed).
• Easy cleaning: Removable full-width drip pan and porcelain oven interiors.
• Made in the USA: Designed and built by American Range in Pacoima, California.

Controls

Manual gas valves for each open burner, with electronic ignition (no standing pilots); oven thermostats from 250°F to 500°F.

Ideal For

Churches, fire stations, community and senior centers, small cafés and other low-volume kitchens that need a true commercial range.

Specifications

Installation & Utility Requirements

Connect to a 3/4-inch NPT gas supply sized for the total input. Manifold pressure is 5.0" W.C. on natural gas and 10.0" W.C. on propane; specify the gas type and the altitude if the range will be installed above 2,000 feet. Have a qualified technician make the connection and check pressures at start-up.

For use only on non-combustible floors, on legs or casters (or with a 2-inch overhang when curb mounted). Clearance from non-combustible walls is 0 inches; next to combustible walls keep at least 12 inches at the sides and 4 inches at the rear. Install under a ventilation hood per NFPA 96 and local codes. If the range is on casters, use a flexible gas connector with a restraining device. The convection oven fan and the electronic ignition need a 120V outlet.

What's Included

• American Range ARGF-8 gas range, set up for the gas type ordered
• 6" adjustable legs
• Back riser of your choice (stub back, high riser or high riser with shelf)
• Two chrome oven racks per oven

Factory Options & Accessories (Additional Cost)

• Swivel casters (set of four, two with brakes)
• Storage base in place of an oven
• 18" x 18" wide burner
• Additional oven racks

Warranty

Two-year limited parts and labor warranty from American Range.

Specifications per American Range data; subject to change by the manufacturer.
